LIGHTING (INT)  SPOT LIGHT(for Rear Door)  INSPECTION

1.094,0.969 1.594,0.969 true 1.906,0.969 2.406,0.969 true 0.073,0.042 0.375,0.281 0.302,0.24 10 false *a 2.469,0.875 2.625,1.073 0.156,0.198 10 false + 0.927,0.865 1.083,1.063 0.156,0.198 10 false -

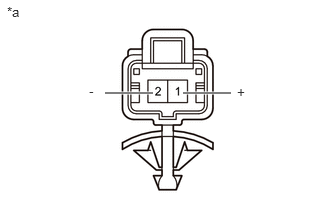

*a	Component without harness connected (Spot Light Assembly)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
1 (+) - 2 (-)	Reading light switch off	10 kΩ or higher
1 (+) - 2 (-)	Reading light switch on	Below 1 Ω

If the result is not as specified, replace the spot light assembly.

Check the switch illumination.

i.

1.094,0.969 1.594,0.969 true 1.906,0.969 2.406,0.969 true 0.073,0.042 0.375,0.281 0.302,0.24 10 false *a 2.469,0.875 2.625,1.073 0.156,0.198 10 false + 0.927,0.865 1.083,1.063 0.156,0.198 10 false -

*a	Component without harness connected (Spot Light Assembly)

Apply battery voltage to the connector and check that the switch illumination comes on.

OK:

Measurement Condition	Condition	Specified Condition
Battery positive (+) → 1 (+) Battery negative (-) → 2 (-)	Always	Switch illumination comes on

If the result is not as specified, replace the spot light assembly.
