RM35X0E
_58
Vehicle Interior
_078381
LIGHTING (INT)
_0381159
SPOT LIGHT(for Rear Door)
A
LIGHTING (INT) SPOT LIGHT(for Rear Door) REMOVAL
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RHD and LHD vehicles.
·The procedure listed below is for the LHD vehicles.
PROCEDURE
67667A
1.REMOVE SLIDE DOOR WINDOW GARNISH RH
67692B
2.REMOVE SLIDE DOOR UPPER TRIM COVER RH
81360T
3.REMOVE SPOT LIGHT ASSEMBLY
a.
Disconnect the connector.
b.
0.313,1.729 0.458,1.729
0.458,1.729 0.656,1.135
true
1.49,0.823 1.74,0.302
1.74,0.302 2.063,0.813
true
0.073,1.635 0.281,1.833
0.208,0.198
10
true
*a
1.625,0.083 1.854,0.313
0.229,0.229
10
true
*b
| *a | Clamp |
| *b | Guide |

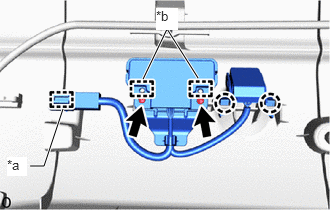

Remove the 2 screws.
c.
Detach the clamp, claw and guide and remove the spot light assembly.
4.REMOVE ROOM LIGHT WIRE
- HINT:
-
Perform this procedure only when replacing the room light wire.
a.
2.479,1.792 2.688,1.219
true
2.969,1.094 2.823,0.406
true
3.052,1.906 3.198,1.531
true
1.438,1.031 1.76,0.406
1.76,0.406 2.021,1.031
true
0.552,0.885 0.844,0.375
0.844,0.375 1.125,0.885
true
0.75,0.167 0.99,0.333
0.24,0.167
10
false
*a
2.948,1.906 3.167,2.104
0.219,0.198
10
false
*b
2.677,0.156 2.917,0.354
0.24,0.198
10
false
*c
1.667,0.146 1.927,0.323
0.26,0.177
10
false
*a
2.375,1.854 2.635,2.042
0.26,0.188
10
false
*a
| *a | Wire Harness Clamp |
| *b | Clamp |
| *c | Guide |
Disconnect the connector.
b.
Detach the wire harness clamp, clamp and guide and remove the room light wire.
