AUDIO / VIDEO  RADIO ANTENNA POLE  INSTALLATION


PROCEDURE

Hide 86309E 1.INSTALL ROOF ANTENNA POLE SUB-ASSEMBLY

a.

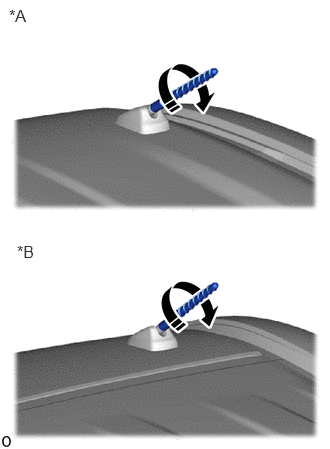

E404894C01
0.094,0.063 0.427,0.333 0.333,0.271 12 false *A 0.177,2.521 0.427,2.75 0.25,0.229 12 false *B
*A for Standard Roof
*B for High Roof
V113147

Install in this Direction


Turn the roof antenna pole sub-assembly in the direction indicated in the illustration to install it.
