RM35X0E _56 Audio / Visual / Telematics _078377 AUDIO / VIDEO _0380035 RADIO ANTENNA POLE A

AUDIO / VIDEO  RADIO ANTENNA POLE  REMOVAL


PROCEDURE

Hide 86309E 1.REMOVE ROOF ANTENNA POLE SUB-ASSEMBLY

a.

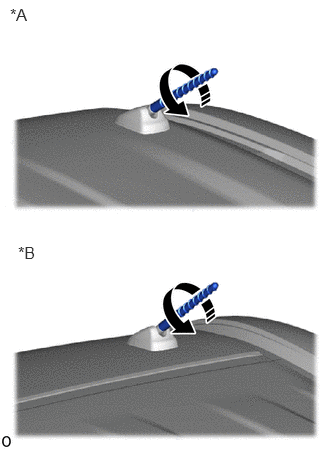

E404893C01
0.104,0.052 0.385,0.26 0.281,0.208 12 false *A 0.188,2.531 0.458,2.771 0.271,0.24 12 false *B
*A for Standard Roof
*B for High Roof
V113147

Remove in this Direction


Turn the roof antenna pole sub-assembly in the direction indicated in the illustration and remove it.
