RM35X0E _56 Audio / Visual / Telematics _078377 AUDIO / VIDEO _0380010 FRONT DOOR SPEAKER A

AUDIO / VIDEO FRONT DOOR SPEAKER INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

Hide Display 86160 1.INSTALL FRONT NO. 1 SPEAKER ASSEMBLY

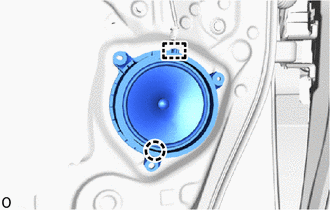

Attach the guide and claw to temporarily install the front No. 1 speaker assembly.

0,0 0,0 false

	Screw
	Connector

Connect the connector.

Install the front No. 1 speaker assembly with the 3 screws.

Hide Display 67602 2.INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

Hide Display 3.INSTALL MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Driver Side)

Hide Display 4.INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL (for Front Passenger Side)

Hide Display 69278B 5.INSTALL FRONT DOOR INSIDE HANDLE BEZEL LH
