RM35X0E _58 Vehicle Interior _078378 THEFT DETERRENT / KEYLESS ENTRY _0380053 SECURITY HORN ASSEMBLY A

THEFT DETERRENT / KEYLESS ENTRY SECURITY HORN ASSEMBLY INSTALLATION

PROCEDURE

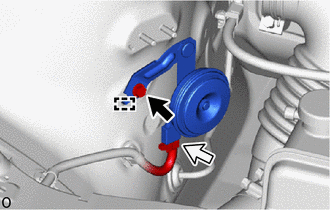

Hide Display 86510A 1.INSTALL SECURITY HORN ASSEMBLY

a.

E404904C01

0,0 0,0 false

	Bolt
	Connector

Connect the connector.

NOTICE:: Do not reuse parts if dropped or subjected to any strong impact.

b.

Attach the guide to temporarily install the security horn assembly.

c.

Install the bolt.

Hide Display 17701 2.INSTALL AIR CLEANER CASE SUB-ASSEMBLY (for 1GD-FTV)

Click hereEngine / Hybrid System>1GD-FTV (INTAKE / EXHAUST)>EXHAUST MANIFOLD W/ TURBOCHARGER>INSTALLATION201902,202005,_51,_079307,_0385721,RM100000001GNNH_01_0047,202005,202107,_51,_079307,_0385721,RM100000001M38D_01_0047,202107,999999,_51,_079307,_0385721,RM100000001X98O_01_0047,

Hide Display 17801 3.INSTALL AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY (for 1GD-FTV)

Click hereGeneral>MAINTENANCE>1GD-FTV AIR CLEANER FILTER ELEMENT>INSTALLATION201902,999999,_V1,_078672,_0385732,RM100000001GNOF_02_0003,

Hide Display 17705 4.INSTALL AIR CLEANER CAP SUB-ASSEMBLY WITH AIR CLEANER HOSE (for 1GD-FTV)

Click hereEngine / Hybrid System>1GD-FTV (INTAKE / EXHAUST)>EXHAUST MANIFOLD W/ TURBOCHARGER>INSTALLATION201902,202005,_51,_079307,_0385721,RM100000001GNNH_01_0049,202005,202107,_51,_079307,_0385721,RM100000001M38D_01_0049,202107,999999,_51,_079307,_0385721,RM100000001X98O_01_0049,

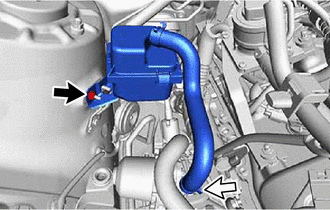

Hide Display 17810D 5.INSTALL AIR FILTER ASSEMBLY (for 7GR-FKS, w/ Secondary Air Injection System)

a.

E417777C01

0,0 0,0 false

	Nut
	Clip

Install the air filter assembly with the nut.

Torque:: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

b.

Connect the No. 5 air hose to the air pump assembly and slide the clip to secure it.

Hide Display 17881 6.INSTALL AIR CLEANER ASSEMBLY WITH AIR CLEANER HOSE (for 7GR-FKS)

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201902,201906,_51,_078603,_0381343,RM100000001FZPD_02_0001,201906,202107,_51,_078603,_0381343,RM100000001J10V_02_0001,202107,202310,_51,_078603,_0381343,RM100000001XZUR_02_0001,202310,999999,_51,_078603,_0381343,RM100000002G639_02_0001,

Hide Display 17751 7.INSTALL NO. 1 AIR CLEANER INLET

a.

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>RADIATOR>INSTALLATION201902,201906,_51,_079310,_0386774,RM100000001GTQ5_01_0157,201906,999999,_51,_079310,_0386774,RM100000001IZPW_01_0157,

b.

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (COOLING)>RADIATOR>INSTALLATION201902,201906,_51,_079309,_0386771,RM100000001GTPT_01_0064,201906,202005,_51,_079309,_0386771,RM100000001IZPZ_01_0064,202005,999999,_51,_079309,_0386771,RM100000001LT60_01_0064,

Hide Display 53106B 8.INSTALL RADIATOR COVER SUB-ASSEMBLY

a.

for 7GR-FKS:

Click hereEngine / Hybrid System>7GR-FKS (COOLING)>RADIATOR>INSTALLATION201902,201906,_51,_079310,_0386774,RM100000001GTQ5_01_0158,201906,999999,_51,_079310,_0386774,RM100000001IZPW_01_0158,

b.

for 1GD-FTV:

Click hereEngine / Hybrid System>1GD-FTV (COOLING)>RADIATOR>INSTALLATION201902,201906,_51,_079309,_0386771,RM100000001GTPT_01_0065,201906,202005,_51,_079309,_0386771,RM100000001IZPZ_01_0065,202005,999999,_51,_079309,_0386771,RM100000001LT60_01_0065,

Hide Display 11209 9.INSTALL V-BANK COVER SUB-ASSEMBLY (for 7GR-FKS)

Click hereEngine / Hybrid System>7GR-FKS (ENGINE MECHANICAL)>ENGINE ASSEMBLY>INSTALLATION201902,201906,_51,_078603,_0381343,RM100000001FZPD_02_0003,201906,202107,_51,_078603,_0381343,RM100000001J10V_02_0003,202107,202310,_51,_078603,_0381343,RM100000001XZUR_02_0003,202310,999999,_51,_078603,_0381343,RM100000002G639_02_0003,

Hide Display 12601B 10.INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY (for 1GD-FTV)

Click hereEngine / Hybrid System>1GD-FTV (ENGINE CONTROL)>DIESEL THROTTLE BODY>INSTALLATION201902,202005,_51,_078856,_0387389,RM100000001GWWQ_01_0018,202005,202107,_51,_078856,_0387389,RM100000001LZJJ_01_0018,202107,999999,_51,_078856,_0387389,RM100000001WVNS_01_0018,
