RM35X0E _58 Vehicle Interior _078378 THEFT DETERRENT / KEYLESS ENTRY _0380053 SECURITY HORN ASSEMBLY G

THEFT DETERRENT / KEYLESS ENTRY  SECURITY HORN ASSEMBLY  INSPECTION


PROCEDURE

Hide 86510A 1.INSPECT SECURITY HORN ASSEMBLY

a.
E404905C01
0.156,0.104 0.385,0.323 0.229,0.219 10 false *a

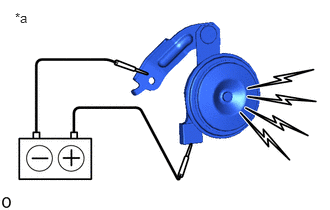

*a Component without harness connected
(Security Horn Assembly)


Check the operation of the security horn assembly.

OK:
Battery Connection Specified Condition
Battery positive (+) → Terminal 1
Battery negative (-) → Security horn assembly body 		Security horn assembly sounds


If the result is not as specified, replace the security horn assembly.
