MIRROR (INT)  DIGITAL INNER MIRROR  INSTALLATION


PROCEDURE

Hide 87810 1.INSTALL INNER REAR VIEW MIRROR ASSEMBLY

a.
B537548C02
0,0 0,0 false
V113147

Install in this Direction

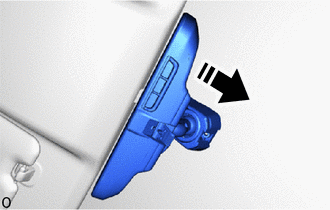

Slide the inner rear view mirror assembly as shown in the illustration to temporarily install the inner rear view mirror assembly.


b.
B537546

Using a T20 "TORX" socket wrench, install the inner rear view mirror assembly with the "TORX" screw.

Torque:
1.5 N*m (15 kgf*cm, 13 in.*lbf)


c.
B537545

Connect the 2 connectors.


Hide 87834 2.INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER

a.
B537561

Attach the claw to temporarily install the inner rear view mirror stay holder cover.


b.
B528237C01
0,0 0,0 false
V113147

Install in this Direction


Slide the inner rear view mirror stay holder cover in the direction indicated by the arrow shown in the illustration and attach the guide and claw to install the cover.
