RM35X0E _58 Vehicle Interior _078376 MIRROR (INT) _0380056 DIGITAL INNER MIRROR A

MIRROR (INT)  DIGITAL INNER MIRROR  REMOVAL


PROCEDURE

Hide 87834 1.REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER

a.
B528236C01
0,0 0,0 false
V113146

Place Fingers Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)

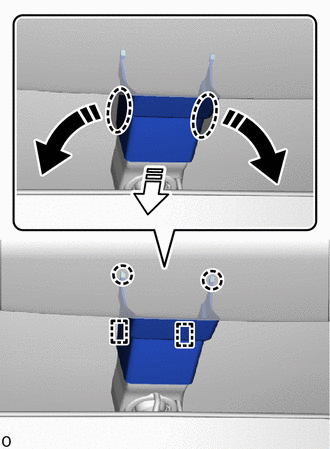

Place your fingers at the position shown in the illustration and detach the guide in the removal direction (1).


b.

Slide the inner rear view mirror stay holder cover in the removal direction (2) and detach the claw.


c.
B537561

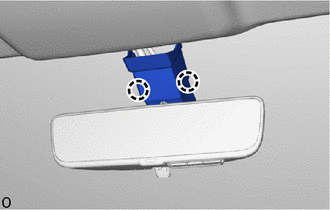

Detach the claw and remove the inner rear view mirror stay holder cover.


Hide 87810 2.REMOVE INNER REAR VIEW MIRROR ASSEMBLY

a.
B537545

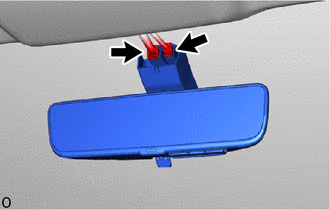

Disconnect the 2 connectors.


b.
B537546

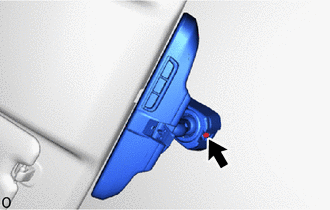

Using a T20 "TORX" socket wrench, remove the "TORX" screw.


c.
B537547C01
0,0 0,0 false
V113147

Remove in this Direction


Slide the inner rear view mirror assembly as shown in the illustration and remove the inner rear view mirror assembly.
