RM35X0E _58 Vehicle Interior _078376 MIRROR (INT) _0380054 INNER REAR VIEW MIRROR(w/o EC Mirror) A

MIRROR (INT)  INNER REAR VIEW MIRROR(w/o EC Mirror)  REMOVAL


PROCEDURE

Hide 87810 1.REMOVE INNER REAR VIEW MIRROR ASSEMBLY

a.
B528223

Using a T20 "TORX" socket wrench, remove the "TORX" screw.


b.
B528224C01
0,0 0,0 false
V113147

Remove in this Direction

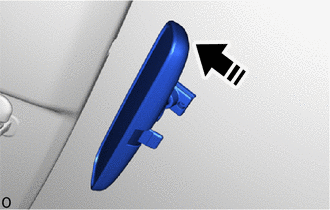

Slide the inner rear view mirror assembly as shown in the illustration to remove it.
