RM35X0E _58 Vehicle Interior _078376 MIRROR (INT) _0380057 INNER REAR VIEW MIRROR(w/ EC Mirror) A

MIRROR (INT)  INNER REAR VIEW MIRROR(w/ EC Mirror)  INSTALLATION


PROCEDURE

Hide 87810 1.INSTALL INNER REAR VIEW MIRROR ASSEMBLY

a.

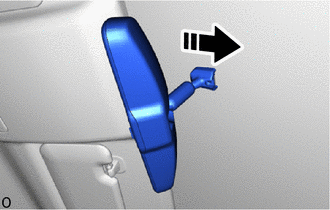

B528234C01
0,0 0,0 false
V113147

Install in this Direction


Slide the inner rear view mirror assembly as shown in the illustration to temporarily install the inner rear view mirror assembly.


b.

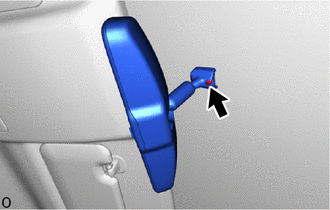

B528232

Using a T20 ''TORX'' socket wrench, install the inner rear view mirror assembly with the "TORX" screw.

Torque:
1.5 N*m (15 kgf*cm, 13 in.*lbf)


c.

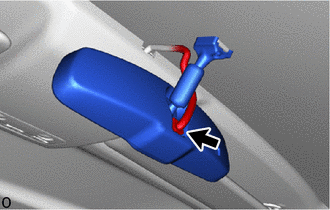

B528231

Connect the connector.


Hide 87834 2.INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER

a.

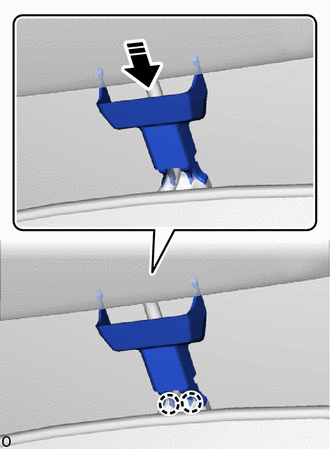

B528230C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to temporarily install the inner rear view mirror stay holder cover as shown in the illustration.


b.

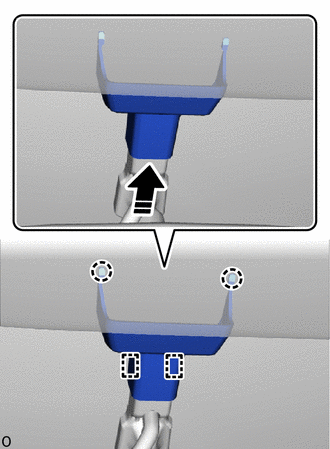

B528228C01
0,0 0,0 false
V113147

Install in this Direction


Slide the inner rear view mirror stay holder cover in the direction indicated by the arrow shown in the illustration and attach the guide and claw to install the cover.
