RM35X0E _58 Vehicle Interior _078376 MIRROR (INT) _0380057 INNER REAR VIEW MIRROR(w/ EC Mirror) G

MIRROR (INT)  INNER REAR VIEW MIRROR(w/ EC Mirror)  INSPECTION


PROCEDURE

Hide 87810 1.INSPECT INNER REAR VIEW MIRROR ASSEMBLY

a.

Inspect the operation of the electrochromic inner rear view mirror assembly.

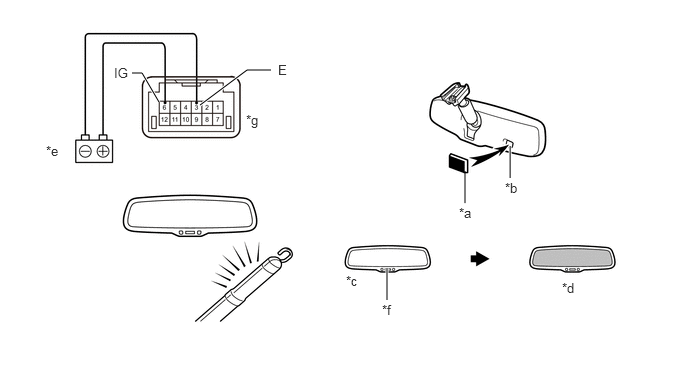

B537634C01
4.844,2.115 4.844,1.781 false 4.031,3.125 4.031,2.792 true 5.313,1.854 5.313,1.521 true 2.083,1.094 2.573,0.729 2.573,0.729 2.823,0.729 true 1.375,0.76 1.479,0.76 1.479,0.76 1.656,1.063 true 4.781,2.135 5.094,2.292 0.313,0.156 10 false *a 5.26,1.875 5.573,2.031 0.313,0.156 10 false *b 3.604,2.844 3.844,3.052 0.24,0.208 10 false *c 5.854,2.917 6.167,3.073 0.313,0.156 10 false *d 0.479,1.49 0.75,1.677 0.271,0.188 10 false *e 3.979,3.146 4.292,3.302 0.313,0.156 10 false *f 2.563,1.167 2.76,1.417 0.198,0.25 10 false *g 1.188,0.677 1.417,0.854 0.229,0.177 10 false IG 2.896,0.646 3.052,0.833 0.156,0.188 10 false E
*a Black Colored Tape *b Forward Sensor
*c Bright *d Dark
*e Battery *f AUTO Switch
*g Component without harness connected
(Inner Rear View Mirror Assembly) 		- -


i.

Connect a positive (+) lead from the battery to terminal 6 (IG) and a negative (-) lead to terminal 3 (E).


ii.

Press the AUTO switch.


iii.

Attach black colored tape to the forward sensor to prevent it from sensing.


iv.

Light up the mirror with an electric light, and check that the mirror surface changes from bright to dark.

OK:

Mirror surface changes from bright to dark.


If the result is not as specified, replace the inner rear view mirror assembly.
