RM35X0E _58 Vehicle Interior _078376 MIRROR (INT) _0380057 INNER REAR VIEW MIRROR(w/ EC Mirror) A

MIRROR (INT)  INNER REAR VIEW MIRROR(w/ EC Mirror)  REMOVAL


PROCEDURE

Hide 87834 1.REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER

a.

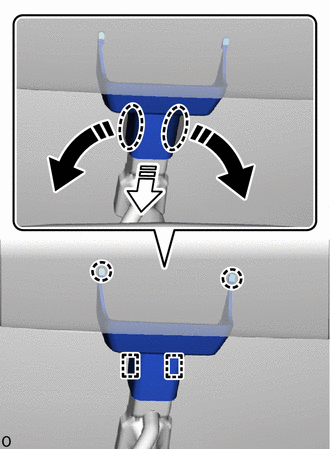

B528227C01
0,0 0,0 false
V113146

Place Fingers Here
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Place your fingers at the position shown in the illustration and detach the guide in the removal direction (1).


b.

Slide the inner rear view mirror stay holder cover in the removal direction (2) and detach the claw.


c.

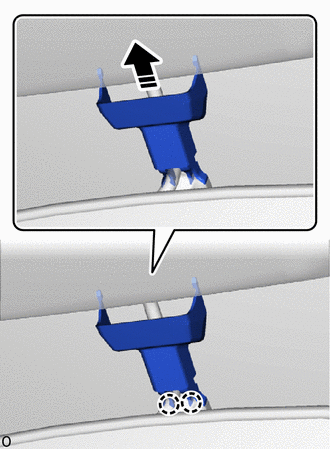

B528229C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the inner rear view mirror stay holder cover.


Hide 87810 2.REMOVE INNER REAR VIEW MIRROR ASSEMBLY

a.
B528231

Disconnect the connector.


b.
B528232

Using a T20 "TORX" socket wrench, remove the "TORX" screw.


c.
B528233C01
0,0 0,0 false
V113147

Remove in this Direction


Slide the inner rear view mirror assembly as shown in the illustration to remove it.
