THEFT DETERRENT / KEYLESS ENTRY  TRANSPONDER KEY AMPLIFIER  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 89782 1.INSTALL TRANSPONDER KEY COIL

a.
E406798

Connect the connector.

NOTICE:

Do not reuse parts if dropped or subjected to any strong impact.



b.

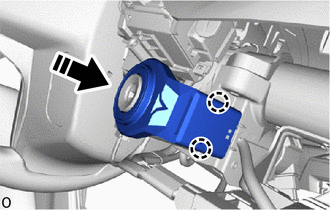

E415108C02
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install the transponder key coil as shown the illustration.
