THEFT DETERRENT / KEYLESS ENTRY  TRANSPONDER KEY AMPLIFIER  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 89782 2.REMOVE TRANSPONDER KEY COIL

a.
E411998C02
0,0 0,0 false
V113147

Remove in this Direction

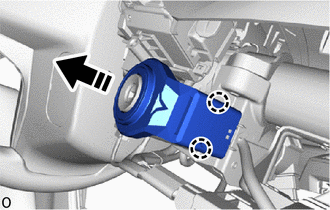

Detach the claw and remove the transponder key coil as shown in the illustration.

NOTICE:

Do not reuse parts if dropped or subjected to any strong impact.



b.
E406798

Disconnect the connector.
