METER / GAUGE / DISPLAY  COMBINATION METER  REASSEMBLY


CAUTION / NOTICE / HINT

NOTICE:

Do not allow any dirt (fingerprints, grease, etc.) to adhere to the meter glass. If the glass is dirty, wipe it clean with a soft cloth.


PROCEDURE

Hide 83138G 1.INSTALL COMBINATION METER GLASS

a.

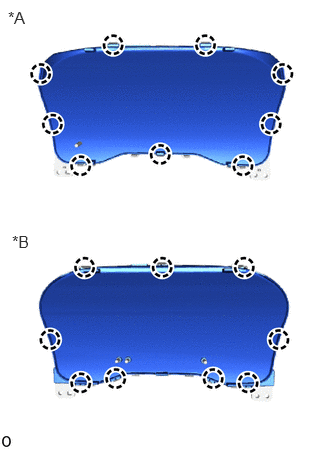

E416631C03
0.083,0.083 0.458,0.323 0.375,0.24 12 false *A 0.125,2.417 0.5,2.656 0.375,0.24 12 false *B
*A for TFT Display Type
*B for Segment Display Type


Attach the claw to install the combination meter glass.
