RM38T0EC _59 Vehicle Exterior _114126 EXTERIOR PANELS / TRIM _0505939 WHEEL OPENING MOULDING(for Rear) A

EXTERIOR PANELS / TRIM  WHEEL OPENING MOULDING(for Rear)  REASSEMBLY


CAUTION / NOTICE / HINT

COMPONENTS (REASSEMBLY)
B722850N01
5.396,1.729 5.75,1.729 false 4.385,0.24 4.74,0.24 false 1.688,1.646 2.042,1.646 false 3.219,3.51 3.573,3.51 false 5.01,0.125 5.167,0.323 0.156,0.198 10 false ● 1.396,1.563 1.552,1.76 0.156,0.198 10 false ● 5.135,0.083 5.448,0.448 0.313,0.365 18 false 2 1.5,1.51 1.813,1.875 0.313,0.365 18 false 1 5.813,1.615 6.083,1.875 0.271,0.26 10 false *1 3.635,3.375 3.948,3.74 0.313,0.365 18 false 3

Procedure Part Name Code
Z101186

Z101188

Z101187

1 NO. 2 BODY OUTSIDE MOULDING PAD 75697 (Click here) - -
2 NO. 1 BODY OUTSIDE MOULDING PAD 75696 (Click here) - -
3 NO. 2 REAR DOOR WEATHERSTRIP 67888D - - -

*1 QUARTER OUTSIDE MOULDING - -
● Non-reusable part - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 75697 1.INSTALL NO. 2 BODY OUTSIDE MOULDING PAD

a.

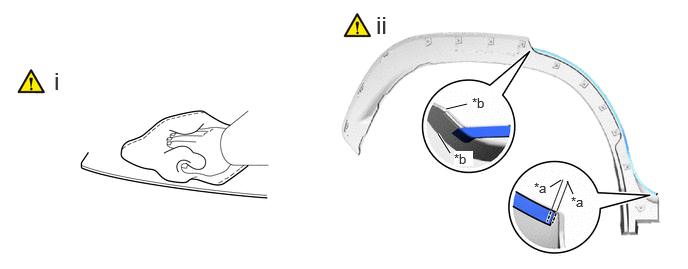

B583066C01
4.646,1.135 4.865,1.083 true 5.729,1.948 5.844,1.875 false 4.688,1.594 4.563,1.396 true 5.969,2.021 5.906,1.885 false 4.917,0.99 5.115,1.146 0.198,0.156 10 true *b 5.563,1.875 5.76,2.031 0.198,0.156 10 false *a 0.563,0.698 0.792,0.99 0.229,0.292 18 false i 3.917,0.115 4.146,0.406 0.229,0.292 18 false ii 4.729,1.573 4.927,1.729 0.198,0.156 10 true *b 5.948,2.021 6.146,2.177 0.198,0.156 10 false *a
*a Location Line *b End of R


i.

Clean the quarter outside moulding.

1. Using a heat light, heat the quarter outside moulding surface.

Standard:
Item Temperature Item Temperature
Quarter Outside Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the quarter outside moulding excessively.


2. Remove any remaining double-sided tape from the quarter outside moulding.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the No. 2 body outside moulding pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install a new No. 2 body outside moulding pad.

1. Using a heat light, heat the quarter outside moulding.

Standard:
Item Temperature Item Temperature
Quarter Outside Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the quarter outside moulding excessively.


2. Remove the release paper from the No. 2 body outside moulding pad.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Install the No. 2 body outside moulding pad as shown in the illustration.

HINT:
·

Make sure that the end of the No. 2 body outside moulding pad is between the location lines.

·

Make sure that the end of the No. 2 body outside moulding pad is between the end of R.

·

Press the No. 2 body outside moulding pad firmly to install it.





Hide 75696 2.INSTALL NO. 1 BODY OUTSIDE MOULDING PAD

a.

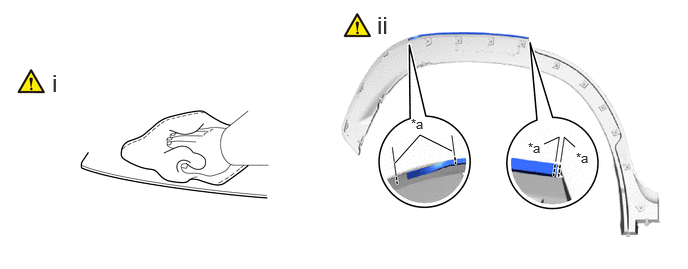

B583065C01
4.115,1.698 4.375,1.406 4.375,1.406 4.708,1.573 true 5.667,1.5 5.823,1.427 false 5.99,1.531 5.875,1.427 false 4.281,1.208 4.594,1.365 0.313,0.156 10 false *a 5.5,1.458 5.813,1.615 0.313,0.156 10 false *a 0.542,0.719 0.75,1.01 0.208,0.292 18 false i 3.927,0.115 4.135,0.406 0.208,0.292 18 false ii 6,1.563 6.333,1.729 0.333,0.167 10 false *a
*a Location Line - -


i.

Clean the quarter outside moulding.

1. Using a heat light, heat the quarter outside moulding surface.

Standard:
Item Temperature Item Temperature
Quarter Outside Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
E306500C35
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the quarter outside moulding excessively.


2. Remove any remaining double-sided tape from the quarter outside moulding.

3. Wipe off any tape adhesive residue with cleaner.

NOTICE:
·

Installing the No. 1 body outside moulding pad with some double-sided tape remaining may cause poor adhesion. Perform this procedure until the tape is sufficiently removed.

·

Make sure to use a cloth when removing. Using a screwdriver, etc., may cause damage and poor adhesion.




ii.

Install a new No. 1 body outside moulding pad.

1. Using a heat light, heat the quarter outside moulding.

Standard:
Item Temperature Item Temperature
Quarter Outside Moulding 20 to 30°C (68 to 86°F) - -


CAUTION:
·

Do not touch the heat light and heated parts.

·

Touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat the quarter outside moulding excessively.


2. Remove the release paper from the No. 1 body outside moulding pad.

HINT:

After removing the release paper, keep the exposed double-sided tape free from foreign matter.


3. Install the No. 1 body outside moulding pad as shown in the illustration.

HINT:
·

Make sure that the end of the No. 1 body outside moulding pad is between the location lines.

·

Press the No. 1 body outside moulding pad firmly to install it.





Hide 67888D 3.INSTALL NO. 2 REAR DOOR WEATHERSTRIP
