WHEEL OPENING MOULDING(for Rear)
A
EXTERIOR PANELS / TRIM WHEEL OPENING MOULDING(for Rear) DISASSEMBLY
CAUTION / NOTICE / HINT

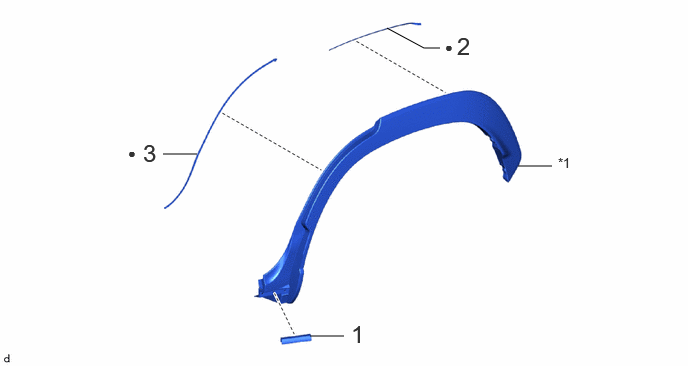

COMPONENTS (DISASSEMBLY)
