RM38T0EC _59 Vehicle Exterior _114126 EXTERIOR PANELS / TRIM _0505944 NAME PLATE A

EXTERIOR PANELS / TRIM  NAME PLATE  REMOVAL


CAUTION / NOTICE / HINT

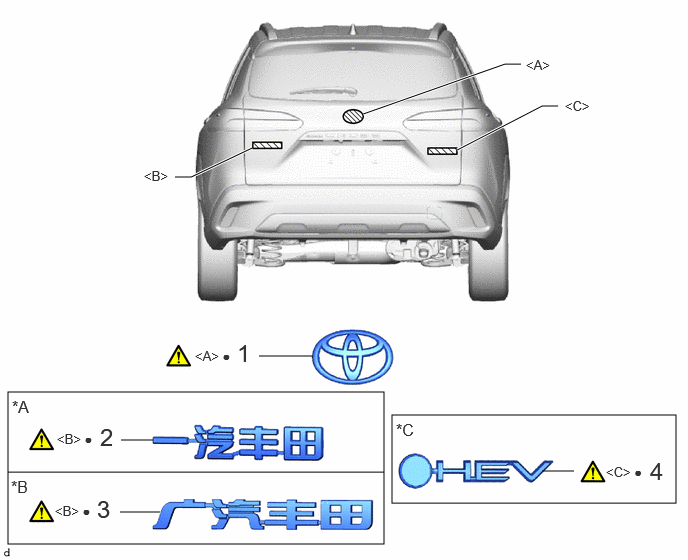

COMPONENTS (REMOVAL)
B722841N01
0.083,4.083 4,5.667 3.917,1.583 4.083,4.323 7.042,5.24 2.958,0.917 1.25,5.333 1.667,5.333 false 1.823,1.844 1.99,1.844 1.99,1.844 2.625,1.542 true 5.427,0.667 5.26,0.667 5.26,0.667 3.781,1.188 true 1.26,4.583 1.594,4.583 false 0.083,4.917 4,4.917 false 5.813,1.104 5.646,1.104 5.646,1.104 4.76,1.563 true 2.698,3.708 3.26,3.708 false 5.646,4.906 5.979,4.906 false 5.479,0.594 5.938,0.792 0.458,0.198 10 false <A> 1.5,1.75 1.958,1.948 0.458,0.198 10 false <B> 2.031,3.625 2.51,3.823 0.479,0.198 10 false <A> ● 0.594,4.49 1.073,4.688 0.479,0.198 10 false <B> ● 2.469,3.531 2.708,3.823 0.24,0.292 18 false 1 1.042,4.406 1.281,4.698 0.24,0.292 18 false 2 0.125,4.135 0.583,4.333 0.458,0.198 12 false *A 0.115,4.969 0.573,5.167 0.458,0.198 12 false *B 0.573,5.24 1.052,5.438 0.479,0.198 10 false <B> ● 1.01,5.156 1.25,5.448 0.24,0.292 18 false 3 5.885,1.021 6.344,1.219 0.458,0.198 10 false <C> 4.125,4.375 4.583,4.573 0.458,0.198 12 false *C 6.313,4.833 6.792,5.031 0.479,0.198 10 false <C> ● 6.771,4.76 7.01,5.052 0.24,0.292 18 false 4

Procedure Part Name Code
Z101186

Z101188

Z101187

1 SYMBOL EMBLEM 75741E (Click here) - -
2 NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE 75441A (Click here) - -
3 NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE 75441A (Click here) - -
4 NO. 3 LUGGAGE COMPARTMENT DOOR PLATE 75443A (Click here) - -

*A for FTMC Made *B for GTMC Made
*C for HEV Model - -
● Non-reusable part - -

B722842N01
0.083,0.333 7.083,4.667 7,4.333 3.5,0.333 3.5,4.667 false 2.375,3.688 2.729,3.688 false 6.031,3.667 6.385,3.667 false 0.073,0.063 0.302,0.281 0.229,0.219 12 false *A 0.125,0.396 0.354,0.615 0.229,0.219 12 false *B 3.635,0.385 3.865,0.604 0.229,0.219 12 false *C 3.031,3.594 3.146,3.781 0.115,0.188 10 false ● 3.167,3.542 3.521,3.854 0.354,0.313 18 false 5 6.667,3.573 6.781,3.76 0.115,0.188 10 false ● 6.802,3.531 7.063,3.865 0.26,0.333 18 false 5

Procedure Part Name Code
Z101186

Z101188

Z101187

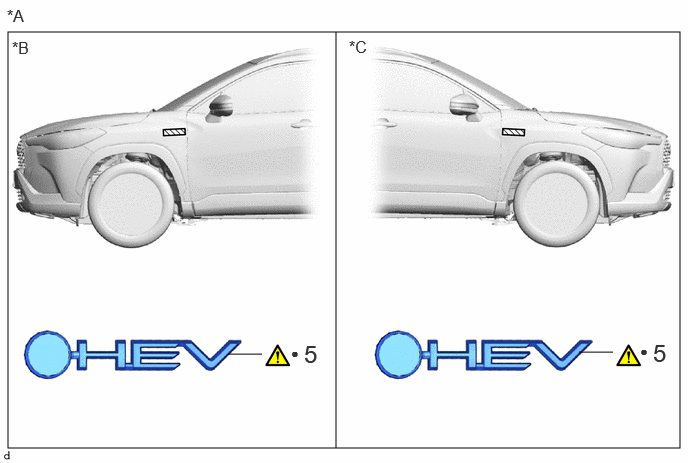

5 SIDE PANEL EMBLEM 75374 (Click here) - -

*A for HEV Model *B for LH Side
*C for RH Side - -
● Non-reusable part - -

CAUTION / NOTICE / HINT

Z101186

NOTICE:

When removing the new name plates or emblems, heat the vehicle body, name plates or emblems using a heat light.



Standard:
Item Temperature
Vehicle Body 40 to 60 °C (104 to 140 °F)
Name Plates or Emblems 20 to 30°C (68 to 86°F)


CAUTION:
E306500C23
2.365,2 2.698,2 false 0.5,2.333 0.5,2.667 true 0.427,2.708 0.74,2.865 0.313,0.156 10 false *a 2.76,1.927 3.073,2.083 0.313,0.156 10 false *b
*a Heated Part
*b Heat Light


·

Do not touch the heat light and heated parts, touching the heat light may result in burns.

·

Touching heated parts for a long time may result in burns.



NOTICE:

Do not heat vehicle body, name plates or emblems excessively.


PROCEDURE

Hide 75741E 1.REMOVE SYMBOL EMBLEM

a.
B625478C01
6.823,3.427 6.615,3.208 false 4.688,3.219 4.844,2.979 false 2.344,0.083 2.625,0.438 0.281,0.354 18 false i 0.75,2.094 1.031,2.448 0.281,0.354 18 false ii 2.208,3.125 2.438,3.406 0.229,0.281 18 true iii 6.781,3.427 6.948,3.625 0.167,0.198 10 false *a 4.594,3.219 4.906,3.417 0.313,0.198 10 false *a 4.219,2.094 4.5,2.448 0.281,0.354 18 false ii
*a Location pin - -


i.

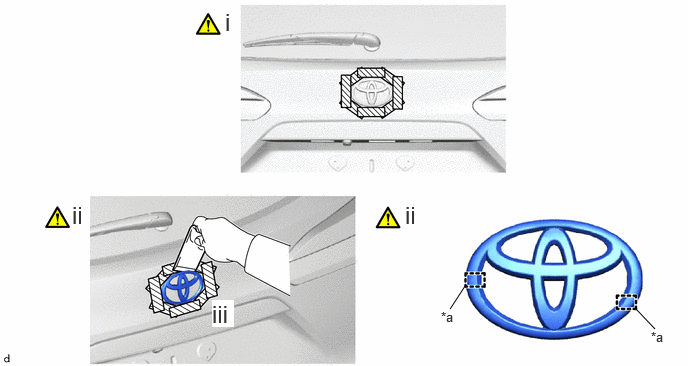

Apply protective tape around the symbol emblem as shown in the illustration.


ii.

Using a moulding remover D, separate the double-sided tape and disengage the location pins to remove the symbol emblem.

NOTICE:

Be careful not to damage the vehicle body.



iii.

Remove the protective tape.



Hide 75441A 2.REMOVE NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE (for FTMC Made)

a.
B625476C01
4.917,1.333 5.646,1.198 true 6.365,0.448 6.667,0.833 6.667,0.833 6.167,1.417 true 4.969,0.719 5.698,0.583 true 0.521,0.031 0.802,0.385 0.281,0.354 18 false i 3.979,0.052 4.26,0.406 0.281,0.354 18 false ii 6.052,0.823 6.281,1.083 0.229,0.26 18 true iii 4.771,0.615 4.938,0.781 0.167,0.167 10 true *a 6.688,0.75 6.854,0.917 0.167,0.167 10 true *b 4.729,1.24 4.896,1.406 0.167,0.167 10 true *a
*a Piano wire *b Wooden Block


i.

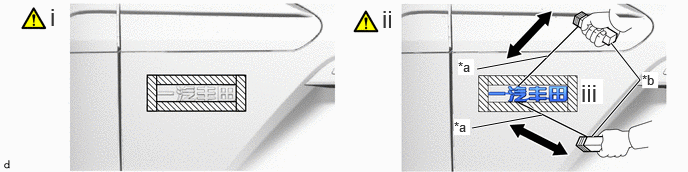

Apply protective tape around the No. 1 luggage compartment door name plate as shown in the illustration.


ii.

Remove the No. 1 luggage compartment door name plate.

1. Insert a piano wire between the vehicle body and No. 1 luggage compartment door name plate.

2. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

3. Pull the piano wire and cut the double-sided tape that holds the No. 1 luggage compartment door name plate to the vehicle body to remove the No. 1 luggage compartment door name plate.

NOTICE:

Be careful not to damage the vehicle body.



iii.

Remove the protective tape.



Hide 75441A 3.REMOVE NO. 1 LUGGAGE COMPARTMENT DOOR NAME PLATE (for GTMC Made)

a.
B625477C01
6.25,0.427 6.75,0.917 6.75,0.917 6,1.417 true 4.594,0.76 5.51,0.625 true 4.604,1.323 5.521,1.188 true 0.521,0.031 0.802,0.385 0.281,0.354 18 false i 3.979,0.052 4.26,0.406 0.281,0.354 18 false ii 6.229,0.823 6.427,1.094 0.198,0.271 18 true iii 4.406,0.656 4.573,0.823 0.167,0.167 10 true *a 6.781,0.844 6.948,1.01 0.167,0.167 10 true *b 4.417,1.24 4.583,1.406 0.167,0.167 10 true *a
*a Piano wire *b Wooden Block


i.

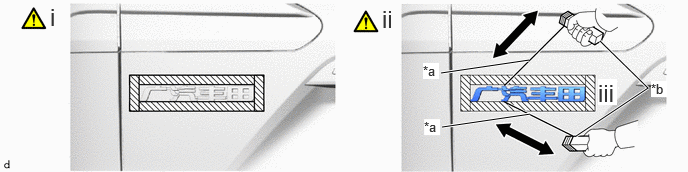

Apply protective tape around the No. 1 luggage compartment door name plate as shown in the illustration.


ii.

Remove the No. 1 luggage compartment door name plate.

1. Insert a piano wire between the vehicle body and No. 1 luggage compartment door name plate.

2. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

3. Pull the piano wire and cut the double-sided tape that holds the No. 1 luggage compartment door name plate to the vehicle body to remove the No. 1 luggage compartment door name plate.

NOTICE:

Be careful not to damage the vehicle body.



iii.

Remove the protective tape.



Hide 75443A 4.REMOVE NO. 3 LUGGAGE COMPARTMENT DOOR PLATE (for HEV Model)

a.
B722843C01
5.802,1.479 6.365,0.938 6.365,0.938 6.01,0.448 true 4.719,0.875 5.281,0.729 true 4.719,1.375 5.271,1.219 true 0.354,0.042 0.635,0.396 0.281,0.354 18 false i 3.927,0.042 4.208,0.396 0.281,0.354 18 false ii 5.635,0.708 5.823,0.979 0.188,0.271 18 true iii 6.438,0.844 6.75,1.042 0.313,0.198 10 false *b 4.49,0.781 4.719,0.99 0.229,0.208 10 true *a 4.479,1.281 4.708,1.49 0.229,0.208 10 true *a
*a Piano wire *b Wooden Block


i.

Apply protective tape around the No. 3 luggage compartment door plate as shown in the illustration.


ii.

Remove the No. 3 luggage compartment door plate by the below procedure.

1. Insert a piano wire between the vehicle body and No. 3 luggage compartment door plate.

2. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

3. Pull the piano wire and cut the double-sided tape that holds the No. 3 luggage compartment door plate to the vehicle body to remove the No. 3 luggage compartment door plate.

NOTICE:

Be careful not to damage the vehicle body.



iii.

Remove the protective tape.



Hide 75374 5.REMOVE SIDE PANEL EMBLEM (for HEV Model)

a.
B722844C01
6.146,0.719 5.906,0.49 true 5.875,1.198 5.615,1.479 true 5.094,0.719 4.646,0.583 true 4.729,1.271 5.115,1.167 true 0.354,0.031 0.635,0.385 0.281,0.354 18 false i 3.927,0.031 4.208,0.385 0.281,0.354 18 false ii 5.656,0.76 5.875,1.021 0.219,0.26 18 true iii 6.083,0.729 6.323,0.927 0.24,0.198 10 true *b 5.885,1.094 6.125,1.292 0.24,0.198 10 true *b 4.406,0.5 4.635,0.698 0.229,0.198 10 true *a 4.458,1.208 4.688,1.406 0.229,0.198 10 true *a
*a Piano wire *b Wooden Block


i.

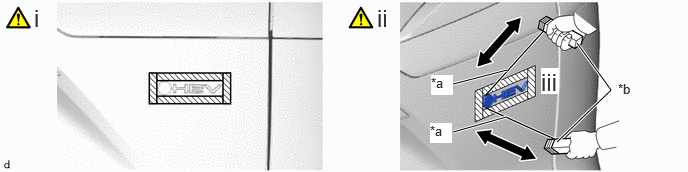

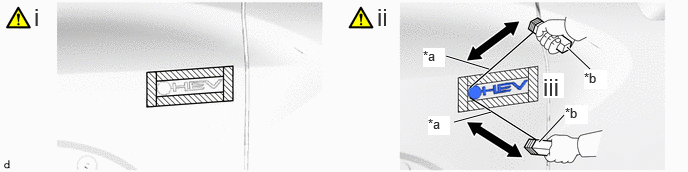

Apply protective tape around the side panel emblem as shown in the illustration.


ii.

Remove the side panel emblem by the below procedure.

1. Insert a piano wire between the vehicle body and side panel emblem.

2. Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.

3. Pull the piano wire and cut the double-sided tape that holds the side panel emblem to the vehicle body to remove the side panel emblem.

NOTICE:

Be careful not to damage the vehicle body.



iii.

Remove the protective tape.



b.

Use the same procedure for the RH side and LH side.
