RM38T0EC _56 Audio / Visual / Telematics _115646 CELLULAR COMMUNICATION _0516513 TOLL COLLECTION ECU A

CELLULAR COMMUNICATION TOLL COLLECTION ECU REMOVAL

CAUTION / NOTICE / HINT

1.854,2.615 2.271,2.615 false 3.188,1.302 3.531,1.302 false 5.083,2.49 5.427,2.49 false 4.219,1.729 4.563,1.729 false 6.115,1.979 6.458,1.979 false 6.156,0.385 6.5,0.385 false 3.865,1.167 4.146,1.521 0.281,0.354 18 false 2 2.656,2.5 2.938,2.854 0.281,0.354 18 false 3 5.958,0.25 6.24,0.604 0.281,0.354 18 false 1 4.01,1.573 4.292,1.927 0.281,0.354 18 false 6 5.51,2.365 5.792,2.719 0.281,0.354 18 false 4 6.51,1.854 6.792,2.208 0.281,0.354 18 false 5 3.823,1.625 4.104,1.979 0.281,0.354 10 false ●

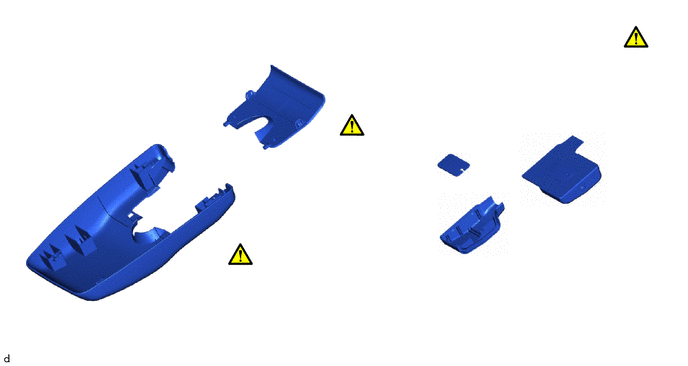

Procedure		Part Name Code
1	PRECAUTION	-	(202307,999999,_56,_115646,_0516513,RM100000002D2RD_01_0006,)	-	-
2	NO. 2 FORWARD RECOGNITION COVER	86466E	(202307,999999,_56,_115646,_0516513,RM100000002D2RD_01_0005,)	-	-
3	NO. 1 FORWARD RECOGNITION COVER	86466D	(202307,999999,_56,_115646,_0516513,RM100000002D2RD_01_0004,)	-	-
4	TOLL COLLECTION COVER	86981	-	-	-
5	TOLL COLLECTION ECU ASSEMBLY	86980	-	-	-
6	TOLL COLLECTION ECU SEAL TAPE	F1969B	-	-	-

●

Non-reusable part

PROCEDURE

Hide Display 1. PRECAUTION

When the toll collection ECU assembly or toll collection ECU seal tape is difficult to remove:

HINT:: When removing the toll collection ECU assembly or toll collection ECU seal tape, heat the toll collection ECU assembly, toll collection ECU seal tape or windshield glass using a hair dryer.

NOTICE:: Do not heat the toll collection ECU assembly or toll collection ECU seal tape excessively.

CAUTION:: Using a hair dryer, heat the toll collection ECU seal tape area.

·

Do not touch the hair dryer or the heated portions of the components.

·

Touching the hair dryer could result in burns.

·

Touching the heated portions of the components and remaining in contact for a long time could result in burns.

Hide Display 86466E 2.REMOVE NO. 2 FORWARD RECOGNITION COVER

Click here(

202201,999999,_95,_112293,_0580211,RM1000000028VIS_01_0022,)

Hide Display 86466D 3.REMOVE NO. 1 FORWARD RECOGNITION COVER

Click here(

202201,999999,_95,_112293,_0580211,RM1000000028VIS_01_0023,)

Hide Display 86981 4.REMOVE TOLL COLLECTION COVER

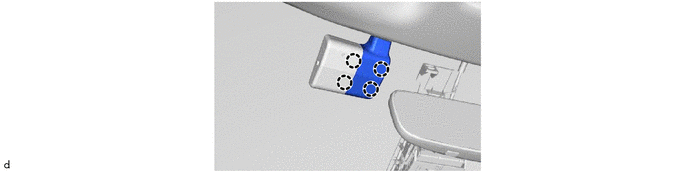

Hide Display 86980 5.REMOVE TOLL COLLECTION ECU ASSEMBLY

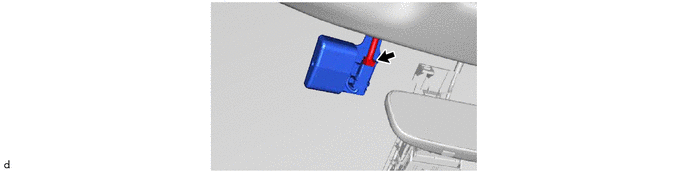

Hide Display F1969B 6.REMOVE TOLL COLLECTION ECU SEAL TAPE

HINT:: When reusing the toll collection ECU assembly.
