RM38T0EC _58 Vehicle Interior _112291 INTERIOR PANELS / TRIM _0501088 COMBINATION SWITCH A

INTERIOR PANELS / TRIM  COMBINATION SWITCH  REMOVAL


CAUTION / NOTICE / HINT

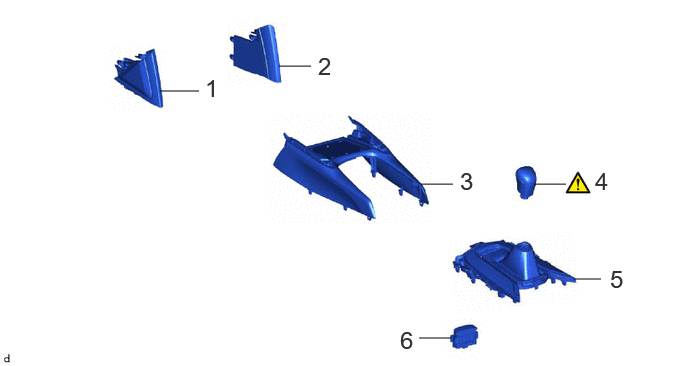

COMPONENTS (REMOVAL)
B590533N01
2.073,0.948 1.667,0.948 false 5.896,1.917 5.563,1.917 false 3.24,0.688 2.906,0.688 false 4.698,3.521 4.365,3.521 false 6.26,2.906 5.979,2.906 false 4.719,1.917 4.385,1.917 false 6.354,2.76 6.677,3.063 0.323,0.302 18 false 5 2.135,0.771 2.458,1.073 0.323,0.302 18 false 1 4.792,1.74 5.115,2.042 0.323,0.302 18 false 3 3.313,0.542 3.635,0.844 0.323,0.302 18 false 2 6.198,1.74 6.521,2.042 0.323,0.302 18 false 4 4.167,3.396 4.448,3.75 0.281,0.354 18 false 6

Procedure Part Name Code
Z101186

Z101188

Z101187

1 NO. 2 CONSOLE UPPER PANEL GARNISH 58834B - - -
2 NO. 1 CONSOLE UPPER PANEL GARNISH 58833B - - -
3 FRONT CONSOLE UPPER PANEL GARNISH 58831A - - -
4 SHIFT LEVER KNOB SUB-ASSEMBLY 33504F (Click here) - -
5 POSITION INDICATOR HOUSING ASSEMBLY 35970F - - -
6 COMBINATION SWITCH ASSEMBLY 84970 - - -

PROCEDURE

Hide 58833B 2.REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH

a.

Use the same procedure as for the No. 2 console upper panel garnish.


Hide 33504F 4.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Z101186

Click here(Click here)

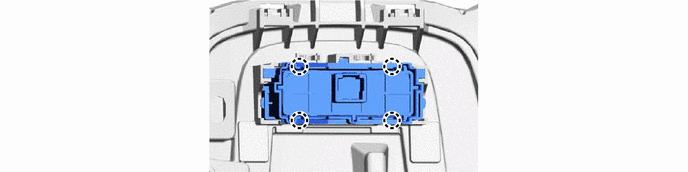

Hide 84970 6.REMOVE COMBINATION SWITCH ASSEMBLY

a.
B591888
