RM38T0EC _58 Vehicle Interior _112288 LIGHTING (INT) _0501075 INTERIOR ILLUMINATION LIGHT(for Console Box) A

LIGHTING (INT)  INTERIOR ILLUMINATION LIGHT(for Console Box)  REMOVAL


CAUTION / NOTICE / HINT

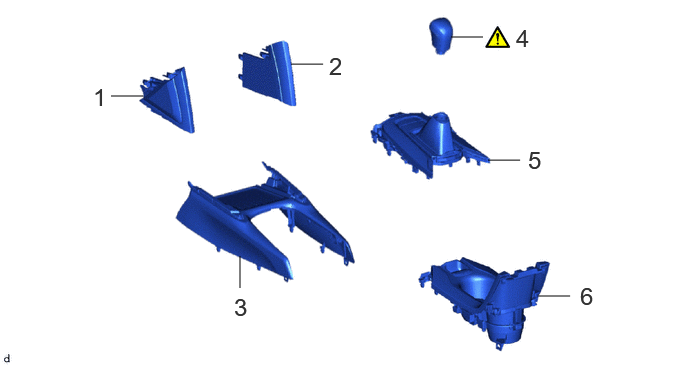

COMPONENTS (REMOVAL)
E475973N01
3.031,0.667 3.365,0.667 false 1.156,1 1.49,1 false 4.698,0.385 5.031,0.385 false 5.083,1.667 5.417,1.667 false 2.5,3 2.5,2.667 false 5.604,3.083 5.938,3.083 false 3.427,0.542 3.708,0.896 0.281,0.354 18 false 2 0.969,0.865 1.25,1.219 0.281,0.354 18 false 1 2.438,3.052 2.719,3.406 0.281,0.354 18 false 3 5.375,0.25 5.656,0.604 0.281,0.354 18 false 4 5.5,1.521 5.781,1.875 0.281,0.354 18 false 5 6.042,2.938 6.323,3.292 0.281,0.354 18 false 6

Procedure Part Name Code
Z101186

Z101188

Z101187

1 NO. 2 CONSOLE UPPER PANEL GARNISH 58834B - - -
2 NO. 1 CONSOLE UPPER PANEL GARNISH 58833B - - -
3 FRONT CONSOLE UPPER PANEL GARNISH 58831A - - -
4 SHIFT LEVER KNOB SUB-ASSEMBLY 33504F (Click here) - -
5 POSITION INDICATOR HOUSING ASSEMBLY 35970F - - -
6 CONSOLE CUP HOLDER BOX SUB-ASSEMBLY - - - -

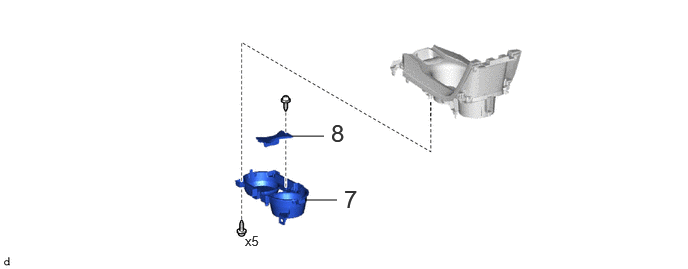

E472640N05
3.042,1.417 3.375,1.417 false 3.177,2.083 3.51,2.083 false 2.552,2.427 2.865,2.625 0.313,0.198 10 false x5 3.448,1.24 3.729,1.594 0.281,0.354 18 false 8 3.583,1.927 3.865,2.281 0.281,0.354 18 false 7

Procedure Part Name Code
Z101186

Z101188

Z101187

7 INSTRUMENT PANEL UNDER TRAY WALL RETAINER 55626A - - -
8 CONSOLE BOX POCKET GARNISH 58827A - - -

PROCEDURE

Hide 58833B 2.REMOVE NO. 1 CONSOLE UPPER PANEL GARNISH

a.

Use the same procedure as for the No. 2 console upper panel garnish.


Hide 33504F 4.REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

Z101186

Click here(Click here)

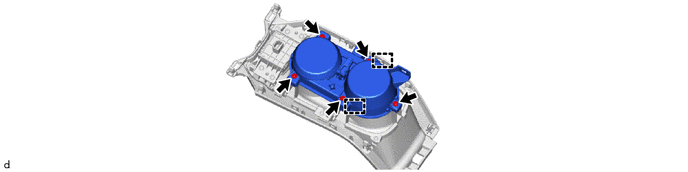

Hide 55626A 7.REMOVE INSTRUMENT PANEL UNDER TRAY WALL RETAINER

a.
E472674


Hide 58827A 8.REMOVE CONSOLE BOX POCKET GARNISH

a.
E445079
