Vehicle Interior
_115106
MIRROR (INT)
_0510346
INNER REAR VIEW MIRROR(w/o EC Mirror)
A
MIRROR (INT) INNER REAR VIEW MIRROR(w/o EC Mirror) REMOVAL
CAUTION / NOTICE / HINT

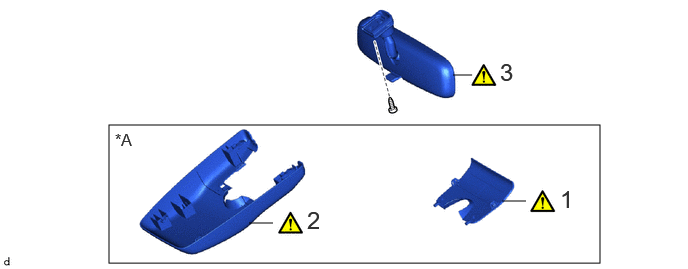

COMPONENTS (REMOVAL)
1.135,1.302 6.25,2.74
5.115,1.438
4.719,0.781 4.917,0.781
false
5.229,2.094 5.479,2.094
false
2.594,2.323 2.844,2.323
false
3.198,2.146 3.469,2.427
0.271,0.281
18
false
2
5.833,1.927 6.104,2.208
0.271,0.281
18
false
1
5.208,0.604 5.479,0.885
0.271,0.281
18
false
3
1.198,1.354 1.469,1.635
0.271,0.281
12
false
*A
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | NO. 2 FORWARD RECOGNITION COVER | 86466E | ( 202307,999999,_58,_115106,_0510346,RM100000002D0C5_01_0003,)
|
- | - |
| 2 | NO. 1 FORWARD RECOGNITION COVER | 86466D | (202307,999999,_58,_115106,_0510346,RM100000002D0C5_01_0004,)
|
- | - |
| 3 | INNER REAR VIEW MIRROR ASSEMBLY | 87810 | (202307,999999,_58,_115106,_0510346,RM100000002D0C5_01_0001,)
|
- | - |
| *A | w/ Pre-collision System | - | - |
PROCEDURE
86466E
1.REMOVE NO. 2 FORWARD RECOGNITION COVER (w/ Pre-collision System)
86466D
2.REMOVE NO. 1 FORWARD RECOGNITION COVER (w/ Pre-collision System)
87810

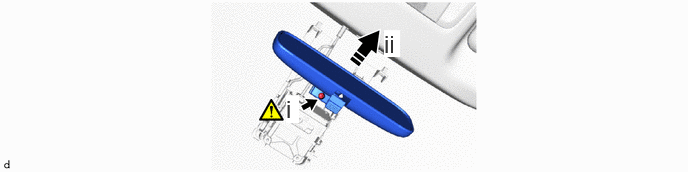

3.REMOVE INNER REAR VIEW MIRROR ASSEMBLY
a.
2.979,0.99 3.115,1.281
0.135,0.292
18
true
i
4,0.313 4.167,0.594
0.167,0.281
18
true
ii
|
Remove in this Direction | - | - |
i.
Using a T20 "TORX" socket wrench, remove the screw.
ii.
Remove the inner rear view mirror assembly as shown in the illustration.
