POWER BACK DOOR WARNING BUZZER
A
DOOR / HATCH POWER BACK DOOR WARNING BUZZER REMOVAL
CAUTION / NOTICE / HINT

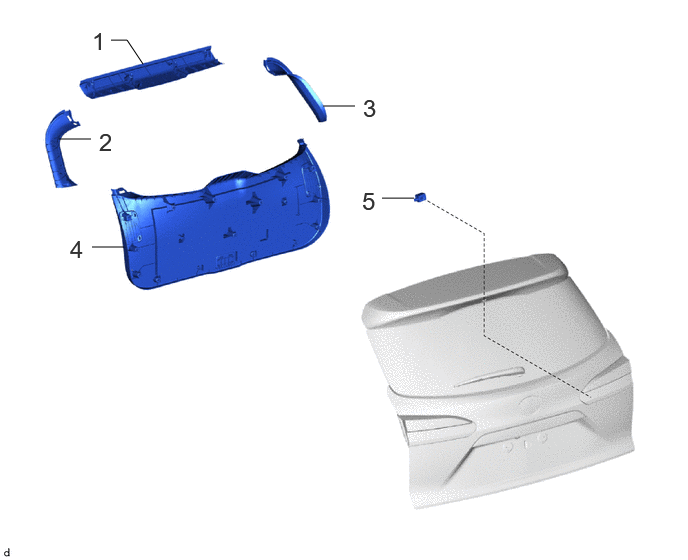

COMPONENTS (REMOVAL)
3.979,2.063 4.313,2.063
false
0.958,2.573 1.292,2.573
false
3.365,1.104 3.698,1.104
false
0.615,1.448 0.948,1.448
false
1.156,0.417 1.323,0.417
1.323,0.417 1.49,0.667
false
3.771,1.948 4.052,2.302
0.281,0.354
18
false
5
0.958,0.281 1.24,0.635
0.281,0.354
18
false
1
1.031,1.333 1.313,1.688
0.281,0.354
18
false
2
3.781,0.979 4.063,1.333
0.281,0.354
18
false
3
0.729,2.448 1.01,2.802
0.281,0.354
18
false
4
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | BACK DOOR TRIM UPPER PANEL ASSEMBLY | 64790B | - | - | - |
| 2 | BACK DOOR SIDE GARNISH LH | 67938A | - | - | - |
| 3 | BACK DOOR SIDE GARNISH RH | 67937B | - | - | - |
| 4 | BACK DOOR TRIM PANEL ASSEMBLY | 64780A | - | - | - |
| 5 | POWER BACK DOOR WARNING BUZZER | 89747E | - | - | - |
PROCEDURE
64790B
1.REMOVE BACK DOOR TRIM UPPER PANEL ASSEMBLY
67938A
2.REMOVE BACK DOOR SIDE GARNISH LH
67937B
3.REMOVE BACK DOOR SIDE GARNISH RH
a.
Use the same procedure as for the LH side.
64780A
4.REMOVE BACK DOOR TRIM PANEL ASSEMBLY
89747E
5.REMOVE POWER BACK DOOR WARNING BUZZER
a.
