RM38T0EC _59 Vehicle Exterior _113746 DOOR / HATCH _0510836 REAR DOOR OPENING TRIM WEATHERSTRIP A

DOOR / HATCH  REAR DOOR OPENING TRIM WEATHERSTRIP  INSTALLATION


CAUTION / NOTICE / HINT

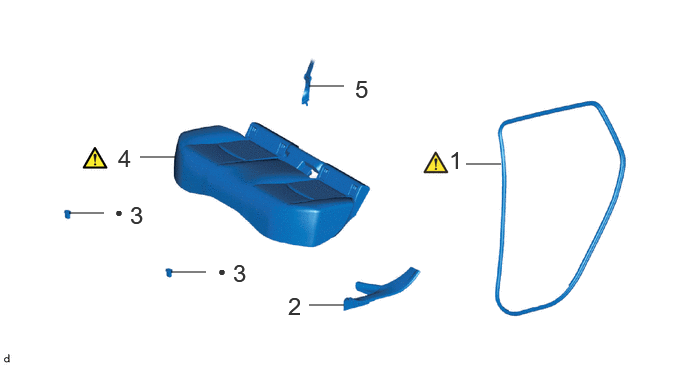

COMPONENTS (INSTALLATION)
B635087N01
1.458,1.635 1.823,1.635 false 0.719,2.219 1.083,2.219 false 1.781,2.833 2.146,2.833 false 3.219,0.896 3.583,0.896 false 4.854,1.708 5.219,1.708 false 3.219,3.177 3.583,3.177 false 4.677,1.521 4.958,1.875 0.281,0.354 18 false 1 3,3.042 3.281,3.396 0.281,0.354 18 false 2 2.271,2.74 2.427,2.938 0.156,0.198 10 false ● 1.198,2.125 1.354,2.323 0.156,0.198 10 false ● 1.354,2.094 1.635,2.448 0.281,0.354 18 false 3 2.427,2.698 2.708,3.052 0.281,0.354 18 false 3 1.229,1.5 1.51,1.854 0.281,0.354 18 false 4 3.698,0.781 3.979,1.135 0.281,0.354 18 false 5

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR DOOR OPENING TRIM WEATHERSTRIP 62332C (Click here) - -
2 REAR DOOR SCUFF PLATE 67918A - - -
3 REAR SEAT CUSHION LOCK HOOK 72693 - - -
4 BENCH TYPE REAR SEAT CUSHION ASSEMBLY - (Click here) - -
5 REAR CENTER SEAT OUTER BELT ASSEMBLY 73350C - - -

● Non-reusable part - -

CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.



PROCEDURE

Hide 62332A 1.INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP

a.
B587268C01
4.083,0.646 4.292,0.458 false 5.354,1.073 5.208,0.833 false 4.313,0.333 4.625,0.531 0.313,0.198 10 false *a 5.333,1.083 5.646,1.281 0.313,0.198 10 false *b
*a Paint Mark *b Cutout


i.

Align the paint mark on the rear door opening trim weatherstrip with the cutout on the vehicle body, and install the rear door opening trim weatherstrip.

NOTICE:
·

Make sure that the paint mark is aligned with the cutout when installing the rear door opening trim weatherstrip, otherwise water ingress may occur.

·

After installation, check that the corners fit correctly.



HINT:
·

Make sure to install the part of the rear door opening trim weatherstrip near the paint mark first.

·

The color of the paint marks on the rear door opening trim weatherstrip LH and rear door opening trim weatherstrip RH are different.

Paint mark
Location Color
for LH Side Green
for RH Side White





Hide 67918A 2.INSTALL REAR DOOR SCUFF PLATE

Hide 72693 3.INSTALL REAR SEAT CUSHION LOCK HOOK

Hide 4.INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

Z101186

Click here(Click here)

Hide 73350C 5.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
