RM38T0EC _59 Vehicle Exterior _113746 DOOR / HATCH _0510834 FRONT DOOR OPENING TRIM WEATHERSTRIP A

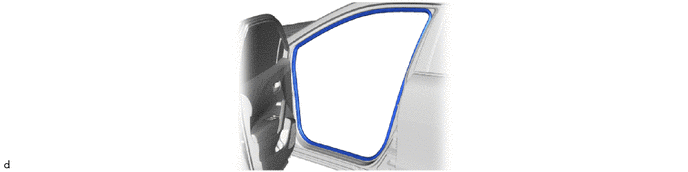

DOOR / HATCH FRONT DOOR OPENING TRIM WEATHERSTRIP REMOVAL

CAUTION / NOTICE / HINT

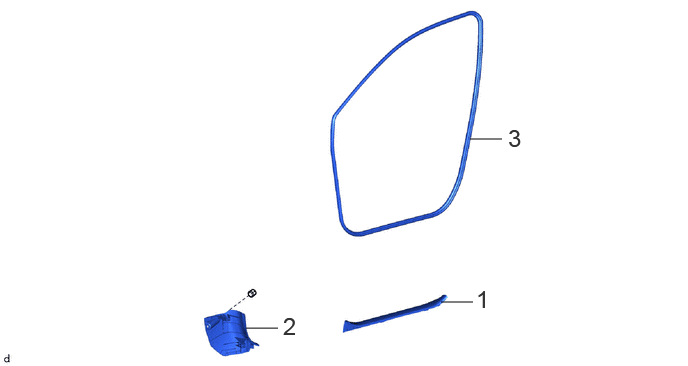

COMPONENTS (REMOVAL)

4.896,1.448 5.229,1.448 false 4.594,3.146 4.927,3.146 false 2.563,3.417 2.896,3.417 false 4.958,2.969 5.24,3.323 0.281,0.354 18 false 1 2.948,3.25 3.229,3.604 0.281,0.354 18 false 2 5.292,1.292 5.573,1.646 0.281,0.354 18 false 3

Procedure		Part Name Code
1	FRONT DOOR SCUFF PLATE	67914	-	-	-
2	COWL SIDE TRIM SUB-ASSEMBLY	62112A	-	-	-
3	FRONT DOOR OPENING TRIM WEATHERSTRIP	62312B	-	-	-

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH side and LH side.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 67914B 1.REMOVE FRONT DOOR SCUFF PLATE

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0001,

Hide Display 62112A 2.REMOVE COWL SIDE TRIM SUB-ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0268,

Hide Display 62312B 3.REMOVE FRONT DOOR OPENING TRIM WEATHERSTRIP
