RM38T0EC _58 Vehicle Interior _115230 THEFT DETERRENT / KEYLESS ENTRY _0510818 ELECTRICAL KEY OSCILLATOR(for Front Floor) A

THEFT DETERRENT / KEYLESS ENTRY ELECTRICAL KEY OSCILLATOR(for Front Floor) REMOVAL

CAUTION / NOTICE / HINT

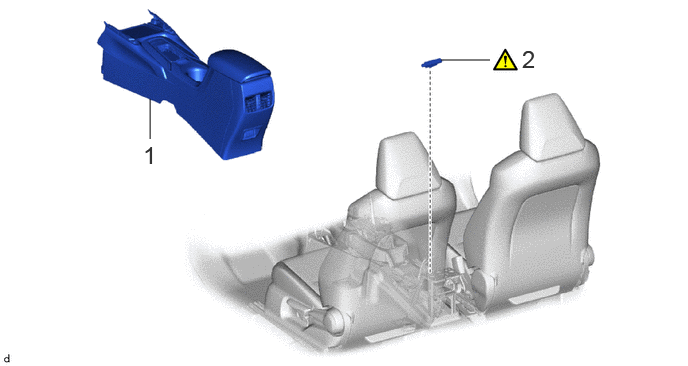

COMPONENTS (REMOVAL)

4.594,0.625 5.104,0.625 false 1.563,1.448 1.563,1.031 false 1.49,1.469 1.771,1.823 0.281,0.354 18 false 1 5.438,0.469 5.719,0.823 0.281,0.354 18 false 2

Procedure		Part Name Code
1	CONSOLE BOX ASSEMBLY	58810J	-	-	-
2	NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY	899A0	(202307,999999,_58,_115230,_0510818,RM100000002CO98_01_0004,)	-	-

PROCEDURE

Hide Display 58810J 1.REMOVE CONSOLE BOX ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>FRONT CONSOLE BOX>REMOVAL202307,999999,_58,_112291,_0501086,RM100000002BHCH,

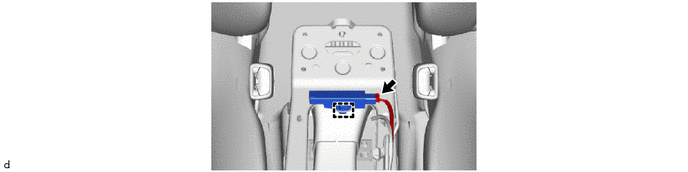

Hide Display 899A0 2.REMOVE NO. 1 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

NOTICE:: Be careful when removing the No. 1 indoor electrical key antenna assembly. If the No. 1 indoor electrical key antenna assembly is dropped, replace it with a new one.
