THEFT DETERRENT / KEYLESS ENTRY ELECTRICAL KEY OSCILLATOR(for Luggage Compartment) REMOVAL

CAUTION / NOTICE / HINT

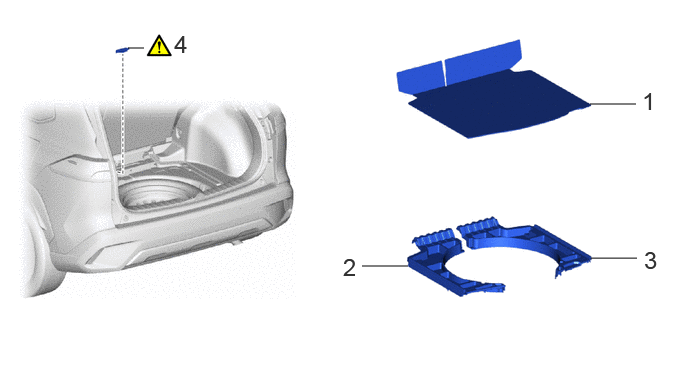

COMPONENTS (REMOVAL)

1.333,0.5 1.5,0.5 false 6.146,1.083 6.625,1.083 false 6.156,2.688 6.635,2.688 false 3.771,2.771 4.25,2.771 false 6.688,0.906 6.896,1.198 0.208,0.292 18 false 1 3.573,2.635 3.781,2.927 0.208,0.292 18 false 2 6.708,2.563 6.917,2.854 0.208,0.292 18 false 3 1.813,0.313 2.021,0.604 0.208,0.292 18 false 4

Procedure		Part Name Code
1	DECK BOARD ASSEMBLY	-	-	-	-
2	DECK FLOOR BOX LH	64997	-	-	-
3	DECK FLOOR BOX RH	64995	-	-	-
4	NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY	899A0B	(202307,999999,_58,_115230,_0510816,RM100000002CO96_02_0002,)	-	-

PROCEDURE

Hide Display 1.REMOVE DECK BOARD ASSEMBLY

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0094,

Hide Display 64997 2.REMOVE DECK FLOOR BOX LH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0207,

Hide Display 64995 3.REMOVE DECK FLOOR BOX RH

Click hereVehicle Interior>INTERIOR PANELS / TRIM>ROOF HEADLINING>REMOVAL202307,999999,_58,_112291,_0501087,RM100000002BHCJ_02_0213,

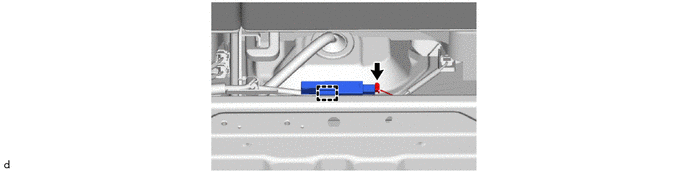

Hide Display 899A0B 4.REMOVE NO. 3 INDOOR ELECTRICAL KEY ANTENNA ASSEMBLY

NOTICE:: Be careful when removing the No. 3 indoor electrical key antenna assembly. If the No. 3 indoor electrical key antenna assembly is dropped, replace it with a new one.
