DOOR LOCK
_0510794
DOOR CONTROL RECEIVER
A
DOOR LOCK DOOR CONTROL RECEIVER INSTALLATION
CAUTION / NOTICE / HINT

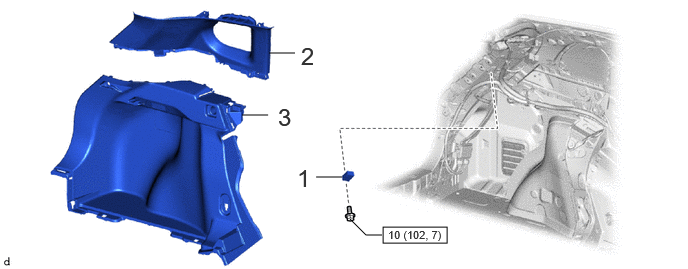

COMPONENTS (INSTALLATION)
3.99,2.365 4.656,2.531
0.667,0.167
2.802,0.552 3.073,0.552
false
2.521,1.198 2.792,1.198
false
3.292,1.844 3.563,1.844
false
3.646,2.281 3.813,2.448
3.813,2.448 3.979,2.448
false
3.094,1.708 3.375,2.063
0.281,0.354
18
false
1
3.135,0.438 3.417,0.792
0.281,0.354
18
false
2
2.896,1.073 3.177,1.427
0.281,0.354
18
false
3
4.042,2.375 5.396,2.531
1.354,0.156
8
false
10 (102, 7)
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY | 897A0A | - | - | - |
| 2 | ROOF SIDE INNER GARNISH ASSEMBLY LH | 62480A | - | - | - |
| 3 | DECK TRIM SIDE PANEL ASSEMBLY LH | 64740C | - | - | - |
|
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
PROCEDURE
897A0A
1.INSTALL DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY
- Torque:
- 10 N*m (102 kgf*cm, 7 ft.*lbf)
62480A
2.INSTALL ROOF SIDE INNER GARNISH ASSEMBLY LH
64740C
3.INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH
