RM38T0EC _58 Vehicle Interior _115226 DOOR LOCK _0510793 BACK DOOR LOCK A

DOOR LOCK BACK DOOR LOCK REMOVAL

CAUTION / NOTICE / HINT

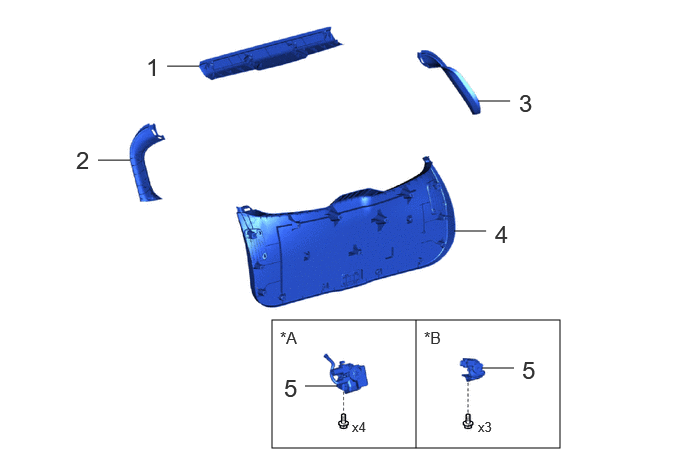

COMPONENTS (REMOVAL)

2.833,3.333 5.833,4.667 3,1.333 3.177,4.021 3.51,4.021 false 5.021,3.833 5.354,3.833 false 4.729,2.406 5.063,2.406 false 4.979,1.052 5.313,1.052 false 1.021,1.667 1.354,1.667 false 1.74,0.688 2.073,0.688 false 4.333,4.667 4.333,3.333 false 1.521,0.552 1.802,0.906 0.281,0.354 18 false 1 0.792,1.521 1.073,1.875 0.281,0.354 18 false 2 5.406,0.927 5.688,1.281 0.281,0.354 18 false 3 5.156,2.292 5.438,2.646 0.281,0.354 18 false 4 2.958,3.896 3.24,4.25 0.281,0.354 18 false 5 3.667,4.365 3.979,4.563 0.313,0.198 10 false x4 4.979,4.365 5.292,4.563 0.313,0.198 10 false x3 5.438,3.708 5.719,4.063 0.281,0.354 18 false 5 2.917,3.417 3.292,3.656 0.375,0.24 12 false *A 4.417,3.417 4.792,3.656 0.375,0.24 12 false *B

Procedure		Part Name Code
1	BACK DOOR TRIM UPPER PANEL ASSEMBLY	64790B	-	-	-
2	BACK DOOR SIDE GARNISH LH	67938A	-	-	-
3	BACK DOOR SIDE GARNISH RH	67937B	-	-	-
4	BACK DOOR TRIM PANEL ASSEMBLY	64780A	-	-	-

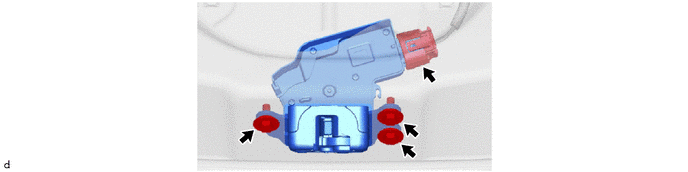

5	BACK DOOR LOCK WITH COURTESY LIGHT SWITCH ASSEMBLY	69350P	-	-	-
