Vehicle Exterior
_113746
DOOR / HATCH
_0613054
FUEL LID OPENER MOTOR ASSEMBLY
A
DOOR / HATCH FUEL LID OPENER MOTOR ASSEMBLY REMOVAL
CAUTION / NOTICE / HINT
CAUTION / NOTICE / HINT

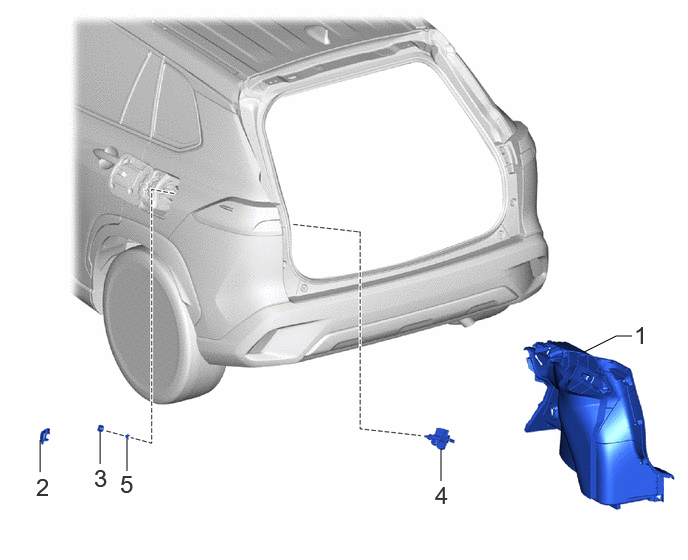

COMPONENTS (REMOVAL)
6.083,3.667 6.417,3.5
6.417,3.5 6.583,3.5
false
4.594,4.677 4.594,5.01
false
1.323,4.573 1.323,4.906
false
1.042,4.5 1.042,4.833
false
0.417,4.583 0.417,4.917
false
6.604,3.344 6.885,3.698
0.281,0.354
18
false
1
4.531,5.01 4.813,5.365
0.281,0.354
18
false
4
0.375,4.927 0.656,5.281
0.281,0.354
18
false
2
0.979,4.833 1.26,5.188
0.281,0.354
18
false
3
1.25,4.896 1.531,5.25
0.281,0.354
18
false
5
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | DECK TRIM SIDE PANEL ASSEMBLY LH | 64740C | - | - | - |
| 2 | FUEL FILLER OPENING LID LOCK COVER | 77378A | - | - | - |
| 3 | FUEL FILLER OPENING LID LOCK RETAINER | 77377 | - | - | - |
| 4 | FUEL LID LOCK WITH MOTOR ASSEMBLY | 77030A | - | - | - |
| 5 | DECK TRIM SIDE PANEL ASSEMBLY LH | 64740C | - | - | - |
PROCEDURE
64740C
1.REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
77378A

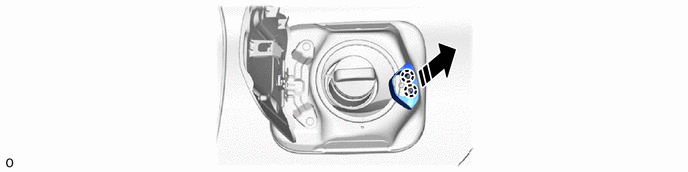

2.REMOVE FUEL FILLER OPENING LID LOCK COVER
a.
0,0 0,0
false
|
Remove in this Direction | - | - |
77377

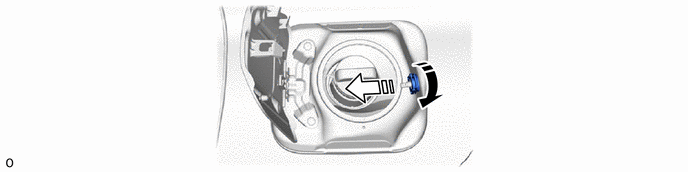

3.REMOVE FUEL FILLER OPENING LID LOCK RETAINER
a.
0,0 0,0
false
|
|
Remove in this Direction (1) |
|
Remove in this Direction (2) |
77030A

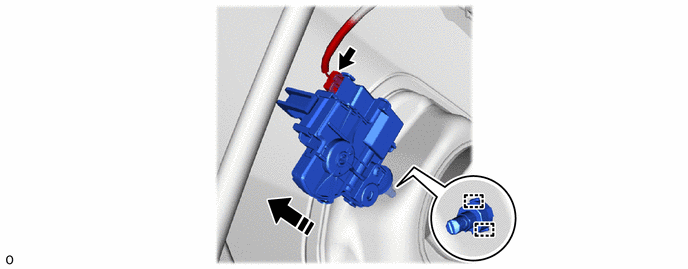

4.REMOVE FUEL LID LOCK WITH MOTOR ASSEMBLY
a.
0,0 0,0
false
|
|
Remove in this Direction | - | - |
77379A

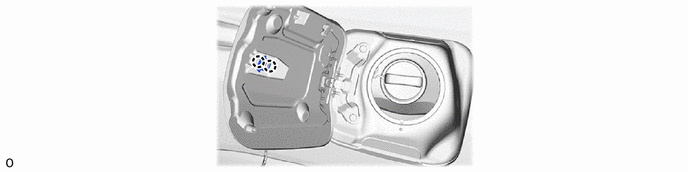

5.INSTALL FUEL LID OPEN LEVER SPACER
a.
