BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS  ELECTRONICALLY CONTROLLED BRAKE SYSTEM(for HEV Model)  DTC CHECK / CLEAR


HINT:
·

DTCs which are stored in the skid control ECU can be displayed on the GTS. The GTS can display the confirmed and permanent DTCs.

·

If a malfunction is detected during the current driving cycle, confirmed and permanent DTCs are stored.

·

Confirmed DTCs can be cleared by using the GTS. However, permanent DTCs cannot be cleared using the GTS.

·

After clearing confirmed DTCs using the GTS, permanent DTCs can be cleared when the system is determined to be normal for the relevant DTCs and then the universal trip is performed. The driving pattern to obtain a normal judgment is described under the "Confirmation Driving Pattern" for the respective DTC.

To clear permanent DTCs, all of the following conditions must be are met:

-

There is a history that universal trip driving was performed.

-

The vehicle has been judged as normal for 1 trip.

-

No malfunctions are detected.




Detection Logic Examples

*: Including 2 trip detection

Confirmed DTC* Store condition Malfunction detected
Clear condition No malfunctions in 40 driving cycles
or
DTCs cleared using GTS
Permanent DTC* Store condition Malfunction detected
Clear condition Ignition switch is turned to ON (READY) after normal judgment obtained in 3 consecutive driving cycles
or
After DTCs cleared using GTS, universal trip performed and normal judgment obtained for 1 trip
MIL ON Malfunction detected
OFF Ignition switch is turned to ON (READY) after normal judgment obtained in 3 consecutive driving cycles
or
DTCs cleared using GTS

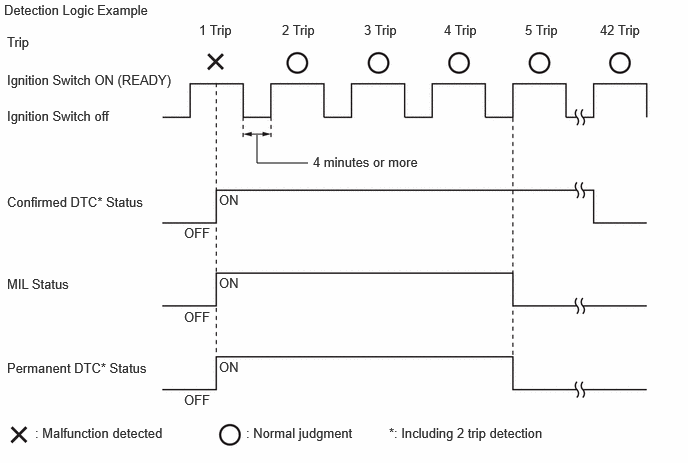

C494968E01
2.677,1.406 2.677,1.698 2.677,1.698 3.208,1.698 true 0.042,0.021 2.26,0.229 2.219,0.208 10 false Detection Logic Example 0.073,0.354 0.688,0.552 0.615,0.198 10 false Trip 2.073,0.229 2.688,0.427 0.615,0.198 10 false 1 Trip 2.938,0.229 3.552,0.427 0.615,0.198 10 false 2 Trip 3.792,0.229 4.406,0.427 0.615,0.198 10 false 3 Trip 4.625,0.229 5.24,0.427 0.615,0.198 10 false 4 Trip 5.469,0.229 6.083,0.427 0.615,0.198 10 false 5 Trip 6.25,0.229 6.781,0.427 0.531,0.198 10 false 42 Trip 0.073,0.75 1.896,1.094 1.823,0.344 10 false Ignition Switch ON (READY) 0.073,1.125 1.479,1.385 1.406,0.26 10 false Ignition Switch off 3.26,1.604 4.427,1.854 1.167,0.25 10 false 4 minutes or more 0.073,2.021 1.604,2.281 1.531,0.26 10 false Confirmed DTC* Status 0.073,2.875 0.823,3.135 0.75,0.26 10 false MIL Status 0.073,3.75 1.656,4.01 1.583,0.26 10 false Permanent DTC* Status 0.365,4.427 1.948,4.677 1.583,0.25 10 false : Malfunction detected 2.563,4.427 3.885,4.688 1.323,0.26 10 false : Normal judgment 1.917,4.083 2.375,4.281 0.458,0.198 10 false OFF 1.917,3.219 2.375,3.417 0.458,0.198 10 false OFF 2.281,2.865 2.74,3.063 0.458,0.198 10 false ON 2.281,3.74 2.74,3.938 0.458,0.198 10 false ON 2.281,2 2.74,2.198 0.458,0.198 10 false ON 1.917,2.344 2.375,2.542 0.458,0.198 10 false OFF 4.052,4.427 6.031,4.594 1.979,0.167 10 false *: Including 2 trip detection

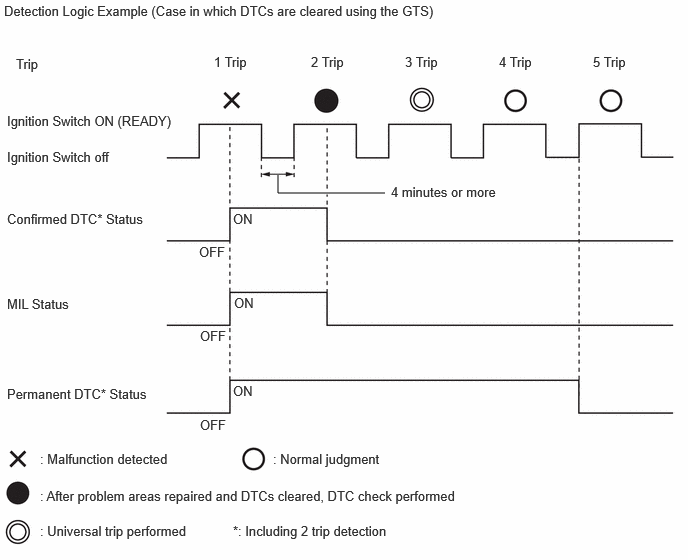

C494969E01
2.896,1.823 2.896,2.01 2.896,2.01 4.01,2.01 true 0.042,0.031 7.052,0.438 7.01,0.406 10 false Detection Logic Example (Case in which DTCs are cleared using the GTS) 0.073,1.177 1.865,1.438 1.792,0.26 10 false Ignition Switch ON (READY) 0.167,0.583 0.781,0.781 0.615,0.198 10 false Trip 0.073,1.552 1.667,1.771 1.594,0.219 10 false Ignition Switch off 0.073,2.198 1.583,2.448 1.51,0.25 10 false Confirmed DTC* Status 0.073,3.083 0.99,3.281 0.917,0.198 10 false MIL Status 0.073,4.021 1.74,4.219 1.667,0.198 10 false Permanent DTC* Status 0.417,4.698 1.917,4.948 1.5,0.25 10 false : Malfunction detected 0.417,5.083 4.917,5.333 4.5,0.25 10 false : After problem areas repaired and DTCs cleared, DTC check performed 2.844,4.698 4.51,4.948 1.667,0.25 10 false : Normal judgment 0.417,5.448 2.333,5.698 1.917,0.25 10 false : Universal trip performed 2.083,4.344 2.698,4.542 0.615,0.198 10 false OFF 2.083,3.417 2.698,3.615 0.615,0.198 10 false OFF 2.438,3.073 3.052,3.271 0.615,0.198 10 false ON 2.229,0.563 2.844,0.76 0.615,0.198 10 false 1 Trip 3.24,0.563 3.854,0.76 0.615,0.198 10 false 2 Trip 4.219,0.563 4.833,0.76 0.615,0.198 10 false 3 Trip 4.073,1.917 5.323,2.115 1.25,0.198 10 false 4 minutes or more 2.427,3.99 3.042,4.188 0.615,0.198 10 false ON 6.177,0.563 6.792,0.76 0.615,0.198 10 false 5 Trip 2.427,2.198 3.042,2.396 0.615,0.198 10 false ON 2.073,2.542 2.688,2.74 0.615,0.198 10 false OFF 5.198,0.563 5.813,0.76 0.615,0.198 10 false 4 Trip 2.427,5.448 5.031,5.646 2.604,0.198 10 false *: Including 2 trip detection

HINT:
·

Obtaining a normal judgment and performing a universal trip driving pattern can be done in the same driving cycle or in different driving cycles.

·

Ensure to wait at least 4 minutes between each trip.



CHECK DTC


a.

Turn the ignition switch off.


b.

Connect the GTS to the DLC3.


c.

Turn the ignition switch to ON.


d.

Turn the GTS on.


e.

Enter the following menus: Chassis / Brake Booster / Trouble Codes.

Chassis > Brake Booster > Trouble Codes
50001 466

f.

Enter the following menus: Chassis / Brake/EPB* / Trouble Codes.

*: Electric Parking Brake System

Chassis > Brake/EPB > Trouble Codes
50001 435

g.

Check the DTC(s) and Freeze Frame Data, and then write them down.

NOTICE:

The electronically controlled brake system outputs DTCs for the following system. When DTCs other than those in Diagnostic Trouble Code Chart for the electronically controlled brake system are output, refer to Diagnostic Trouble Code Chart for the relevant system.

System Proceed to
Electric Parking Brake System (Click here)


HINT:
GTS Display Description

*: Including 2 trip detection

Test Failed Shows the malfunction judgment results during the current trip.
Confirmed* Shows the DTCs confirmed up to now. (The number of current trips differs for each DTC.)



h.

Check the details of the DTC(s).



CLEAR DTC (CONFIRMED DTC)


a.

Turn the ignition switch off.


b.

Connect the GTS to the DLC3.


c.

Turn the ignition switch to ON.


d.

Turn the GTS on.


e.

Enter the following menus: Chassis / Brake Booster / Trouble Codes.

Chassis > Brake Booster > Clear DTCs
50002 466

f.

Enter the following menus: Chassis / Brake/EPB* / Trouble Codes.

*: Electric Parking Brake System

Chassis > Brake/EPB > Clear DTCs
50002 435

g.

Press the clear button.



CLEAR PERMANENT DTC


OUTLINE

After clearing confirmed DTCs using the GTS, permanent DTCs can be cleared when the universal trip is performed and then the system is determined to be normal for the relevant DTCs. The driving pattern to obtain a normal judgment is described under the "Confirmation Driving Pattern" for the respective DTC.

To clear permanent DTCs, all of the following conditions must be are met:

-

There is a history that universal trip driving was performed.

-

The vehicle has been judged as normal for 1 trip.

-

No malfunctions are detected.



NOTICE:

When performing the following procedure, make sure that the driver door is closed and is not opened at any time during the procedure.


a.

Turn the ignition switch off.


b.

Connect the GTS to the DLC3.


c.

Turn the ignition switch to ON.


d.

Turn the GTS on.


e.

Enter the following menus: Chassis / Brake Booster / Trouble Codes.

Chassis > Brake Booster > Trouble Codes
50001 466
HINT:

If "PERMANENT" in the top right of the screen displays "YES", permanent DTCs are stored.



f.

Enter the following menus: Chassis / Brake/EPB* / Trouble Codes.

*: Electric Parking Brake System

Chassis > Brake/EPB > Trouble Codes
50001 435
HINT:

If "PERMANENT" in the top right of the screen displays "YES", permanent DTCs are stored.



g.

Select the "Generic" tab.


h.

Check if permanent DTCs are stored.

HINT:

If permanent DTCs are not output, it is not necessary to continue this procedure.



i.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

Chassis > Brake Booster > Clear DTCs
50002 466
Chassis > Brake/EPB > Clear DTCs
50002 435
NOTICE:

Do not clear the DTCs or disconnect the cable from the auxiliary battery terminal after performing this step.



j.

Turn the ignition switch off and wait for 4 minutes or more.


k.

Perform the universal trip.

HINT:

The driving pattern to obtain a normal judgment and the universal trip driving can be performed consecutively in the same driving cycle.

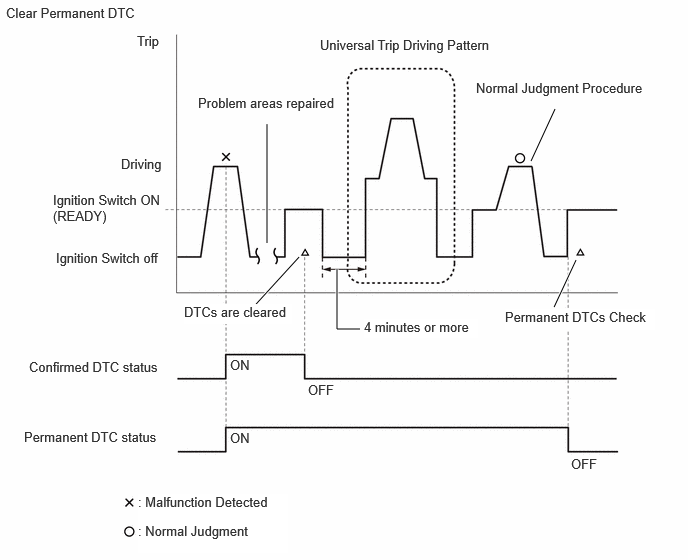

C494952E01
2.667,3.167 3.115,2.677 true 3.75,3.427 3.51,3.427 3.51,3.427 3.51,2.802 true 5.531,1.677 5.781,1.135 true 5.771,3.198 6,2.708 true 2.781,2.531 2.781,1.292 true 0.063,0.052 1.563,0.26 1.5,0.208 10 false Clear Permanent DTC 1.427,0.344 1.823,0.583 0.396,0.24 10 false Trip 3.333,0.385 5.313,0.656 1.979,0.271 10 false Universal Trip Driving Pattern 2.063,0.99 3.583,1.292 1.521,0.302 10 false Problem areas repaired 5.26,3.219 6.823,3.438 1.563,0.219 10 true Permanent DTCs Check 1.917,3.167 3.042,3.375 1.125,0.208 10 true DTCs are cleared 1.26,1.625 1.75,1.917 0.49,0.292 10 false Driving 0.552,2 1.708,2.375 1.156,0.375 10 false Ignition Switch ON (READY) 0.583,2.604 1.771,2.948 1.188,0.344 10 false Ignition Switch off 0.302,3.74 1.854,4.104 1.552,0.365 10 false Confirmed DTC status 0.25,4.469 1.802,4.833 1.552,0.365 10 false Permanent DTC status 2.396,3.719 2.885,4.01 0.49,0.292 10 false ON 2.396,4.479 2.885,4.771 0.49,0.292 10 false ON 3.208,3.979 3.698,4.271 0.49,0.292 10 false OFF 5.948,4.75 6.438,5.042 0.49,0.292 10 false OFF 1.438,5.146 3,5.458 1.563,0.313 10 true : Malfunction Detected 1.438,5.448 3,5.76 1.563,0.313 10 true : Normal Judgment 4.958,0.833 6.729,1.115 1.771,0.281 10 false Normal Judgment Procedure 3.792,3.323 4.979,3.521 1.188,0.198 10 true 4 minutes or more

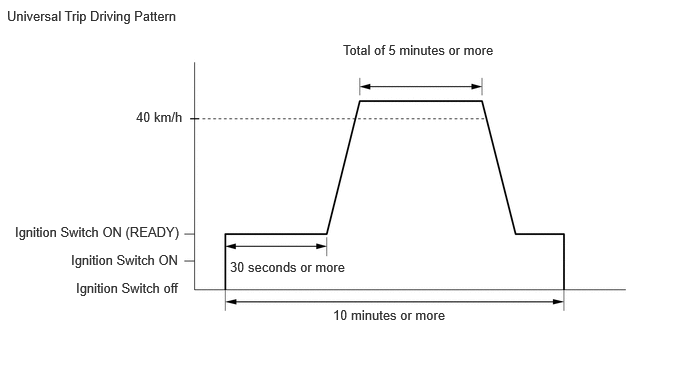

C423627E01
0.073,0.083 1.927,0.333 1.854,0.25 10 false Universal Trip Driving Pattern 3.573,0.438 5.26,0.708 1.688,0.271 10 false Total of 5 minutes or more 1.417,1.135 3.406,1.479 1.99,0.344 10 false 40 km/h 0.156,2.333 1.927,2.583 1.771,0.25 10 false Ignition Switch ON (READY) 0.74,2.625 2.302,2.813 1.563,0.188 10 false Ignition Switch ON 0.792,2.917 2.323,3.177 1.531,0.26 10 false Ignition Switch off 2.396,2.698 4.344,2.969 1.948,0.271 10 false 30 seconds or more 3.469,3.198 5.292,3.469 1.823,0.271 10 false 10 minutes or more

1.

Turn the ignition switch to ON (READY) and wait for 30 seconds or more.

2.

With the engine running, drive the vehicle at 40 km/h (25 mph) or more for a total of 5 minutes or more.

CAUTION:

When performing a driving pattern, obey all speed limits and traffic laws.


HINT:

It is possible to complete the drive pattern even if the vehicle decelerates to less than 40 km/h (25 mph) during the driving cycle provided that the vehicle is driven at 40 km/h (25 mph) or more for a total of 5 minutes.


3.

Allow 10 minutes or more to elapse from the time the ignition switch turned to ON (READY).



l.

Turn the ignition switch off and wait for 4 minutes or more.


m.

Turn the ignition switch to ON (READY).


n.

Perform the normal judgment procedure in the respective confirmation driving pattern of each output DTC.

HINT:

Do not turn the ignition switch off by mistake during this step.



o.

With the ignition switch ON (READY) wait for 5 seconds or more. (Except when the ignition switch is already turned to ON (READY) or the engine is running)


p.

Turn the ignition switch off and wait for 4 minutes or more.


q.

Turn the ignition switch to ON (READY).


r.

Enter the following menus: Chassis / Brake Booster / Trouble Codes.

Chassis > Brake Booster > Trouble Codes
50001 466

s.

Enter the following menus: Chassis / Brake/EPB* / Trouble Codes.

*: Electric Parking Brake System

Chassis > Brake/EPB > Trouble Codes
50001 435

t.

Check that the permanent DTCs have been cleared.
