RM38T0EC _58 Vehicle Interior _115230 THEFT DETERRENT / KEYLESS ENTRY _0606512 SMART ENTRY AND START SYSTEM(for Start Function, HEV Model) J

THEFT DETERRENT / KEYLESS ENTRY  SMART ENTRY AND START SYSTEM(for Start Function, HEV Model)  Immobiliser System does not Operate Properly


DESCRIPTION

The immobiliser function compares the ID code that is registered in the certification ECU (smart key ECU assembly) with the ID code of the transponder chip that is embedded in the electrical key transmitter sub-assembly.

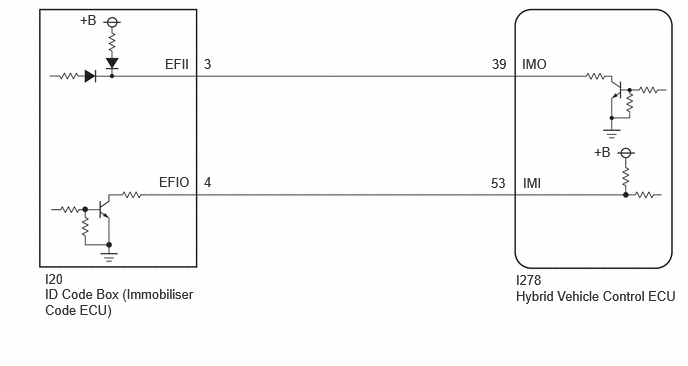

WIRING DIAGRAM

B688450E02
5.375,3 7.094,3.573 1.719,0.573 10 false Hybrid Vehicle Control ECU 5.375,2.833 5.833,3.031 0.458,0.198 10 false I278 0.469,2.823 0.927,3.021 0.458,0.198 10 false I20 0.833,0.125 1.292,0.323 0.458,0.198 10 false +B 6.188,1.5 6.646,1.698 0.458,0.198 10 false +B 1.719,0.583 2.177,0.781 0.458,0.198 10 false EFII 1.656,1.813 2.115,2.01 0.458,0.198 10 false EFIO 2.125,0.583 2.583,0.781 0.458,0.198 10 false 3 2.125,1.813 2.583,2.01 0.458,0.198 10 false 4 5.438,0.583 5.896,0.781 0.458,0.198 10 false IMO 5.448,1.823 5.906,2.021 0.458,0.198 10 false IMI 5.125,0.583 5.583,0.781 0.458,0.198 10 false 39 5.115,1.823 5.573,2.021 0.458,0.198 10 false 53 0.469,2.979 2.052,3.396 1.583,0.417 10 false ID Code Box (Immobiliser Code ECU)

CAUTION / NOTICE / HINT

NOTICE:
·

When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.

·

The smart entry and start system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Start Function) after confirming that the communication systems are functioning properly.

Click hereVehicle Interior>THEFT DETERRENT / KEYLESS ENTRY>SMART ENTRY AND START SYSTEM (for Start Function, HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before replacing the hybrid vehicle control ECU or certification ECU (smart key ECU assembly), refer to Service Bulletin.

·

After repair, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".



HINT:

If an immobiliser function or hybrid control system DTC is output, first perform troubleshooting for the immobiliser function or hybrid control system DTC.


PROCEDURE

1.CHECK FOR DTC
a.

Check for DTCs.

Body Electrical > Entry&Start > Trouble Codes
50001 440
Powertrain > Hybrid Control > Trouble Codes
50001 397

Result:
Result Proceed to
DTCs are not output A
DTCs are output B



A

2.CHECK WHETHER HYBRID CONTROL SYSTEM STARTS

B

2.CHECK WHETHER HYBRID CONTROL SYSTEM STARTS
a.

Check that the hybrid control system starts within 5 seconds of the ignition switch being turned on (READY).

OK:

Hybrid control system starts normally.



Result:
Proceed to
OK
NG



OK

NG

3.CHECK HYBRID VEHICLE CONTROL ECU (TERMINAL IMI AND IMO)
3.CHECK HYBRID VEHICLE CONTROL ECU (TERMINAL IMI AND IMO)
a.

Using an oscilloscope, check the waveform.

E438562C37
4.323,0.125 4.823,0.375 0.5,0.25 3.396,6.125 3.396,5.688 false 3,4.083 3,3.656 false 3.75,2 4.063,1.24 true 3.333,0.25 4.115,1.135 true 1.198,2.302 1.448,2.469 0.25,0.167 10 false *f 1.177,4.385 1.427,4.615 0.25,0.229 10 false *g 2.417,4.625 2.667,4.792 0.25,0.167 10 false *h 3.052,2.667 3.302,2.833 0.25,0.167 10 false *i 3.438,4.615 3.667,4.833 0.229,0.219 10 false *j 4.438,0.146 4.833,0.323 0.396,0.177 10 false I278 1.125,0.094 1.375,0.26 0.25,0.167 10 false *a 2.927,4.115 3.094,4.281 0.167,0.167 10 false *b 3.104,3.75 3.333,3.917 0.229,0.167 10 false *c 2.656,7.135 2.906,7.302 0.25,0.167 10 false *d 2.729,7.396 2.979,7.563 0.25,0.167 10 false *e 1.031,3.604 1.354,3.771 0.323,0.167 10 false GND 1.042,5.635 1.365,5.802 0.323,0.167 10 false GND 3.521,5.771 3.75,5.938 0.229,0.167 10 false *c 3.333,6.167 3.5,6.333 0.167,0.167 10 false *b 4.583,7.396 4.833,7.563 0.25,0.167 10 false *e 4.667,7.135 4.917,7.302 0.25,0.167 10 false *d 4.021,6.438 4.438,6.604 0.417,0.167 10 false *k 2.135,6.448 2.885,6.615 0.75,0.167 10 false *k 3.656,2.01 3.906,2.177 0.25,0.167 10 false IMI 3.01,0.146 3.344,0.313 0.333,0.167 10 false IMO
*a Component with harness connected
(Hybrid Vehicle Control ECU)
*b Approximately 160 ms.
*c Approximately 270 ms. *d Approximately 40 ms.
*e Approximately 60 ms. *f Terminal IMO
*g Terminal IMI *h Waveform 1
*i Waveform 2 *j Waveform 3
*k Waveform 1 (detail) - -


NOTICE:

The waveform shown in the illustration is an example for reference only. Noise, chattering, etc. are not shown.


OK:
Tester Connection Condition Tool Setting Specified Condition
I278-39 (IMO) - Body ground Within 3 seconds of hybrid control system start or within 3 seconds of ignition switch turned to ON after auxiliary battery cable disconnected and reconnected 2 V/DIV., 500 ms./DIV. Pulse generation
(See waveform 2)
I278-53 (IMI) - Body ground Within 3 seconds of hybrid control system start or within 3 seconds of ignition switch turned to ON after auxiliary battery cable disconnected and reconnected 2 V/DIV., 500 ms./DIV. Pulse generation
(See waveform 1 and 3)



Result:
Result Proceed to
Normal waveform A
Waveform 1 is not output, or has abnormal wavelength or shape B
Waveform 2 is not output, or has abnormal wavelength or shape C
Waveform 3 is not output, or has abnormal wavelength or shape D



A

4.REGISTER ECU COMMUNICATION ID

B

6.CHECK HARNESS AND CONNECTOR (ID CODE BOX (IMMOBILISER CODE ECU) - HYBRID VEHICLE CONTROL ECU)

C

D

7.REPLACE ID CODE BOX (IMMOBILISER CODE ECU)
4.REGISTER ECU COMMUNICATION ID
a.

Register the ECU communication ID codes.

HINT:

Refer to Service Bulletin.



Result:
Proceed to
NEXT



NEXT

5.CHECK WHETHER HYBRID CONTROL SYSTEM STARTS
5.CHECK WHETHER HYBRID CONTROL SYSTEM STARTS
a.

Check that the hybrid control system starts.

OK:

Hybrid control system starts normally.



Result:
Proceed to
OK
NG



OK

END (COMMUNICATION ID REGISTRATION WAS DEFECTIVE)

NG

REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

6.CHECK HARNESS AND CONNECTOR (ID CODE BOX (IMMOBILISER CODE ECU) - HYBRID VEHICLE CONTROL ECU)
a.

Disconnect the I20 ID code box (immobiliser code ECU) connector.


b.

Disconnect the I278 hybrid vehicle control ECU connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I20-3 (EFII) - I278-39 (IMO) Always Below 1 Ω
I20-3 (EFII) or I278-39 (IMO) - Other terminals and body ground Always 10 kΩ or higher
I20-4 (EFIO) - I278-53 (IMI) Always Below 1 Ω
I20-4 (EFIO) or I278-53 (IMI) - Other terminals and body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

7.REPLACE ID CODE BOX (IMMOBILISER CODE ECU)

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

7.REPLACE ID CODE BOX (IMMOBILISER CODE ECU)
a.

Replace the ID code box (immobiliser code ECU) with a new one.


Result:
Proceed to
NEXT



NEXT

8.REGISTER RECOGNITION CODE
8.REGISTER RECOGNITION CODE
a.

Register the recognition codes to the ECUs.

HINT:

Refer to Service Bulletin.



Result:
Proceed to
NEXT



NEXT

9.REGISTER ECU COMMUNICATION ID
9.REGISTER ECU COMMUNICATION ID
a.

Register the ECU communication ID codes.

HINT:

Refer to Service Bulletin.



Result:
Proceed to
NEXT



NEXT

10.CHECK WHETHER HYBRID CONTROL SYSTEM STARTS
10.CHECK WHETHER HYBRID CONTROL SYSTEM STARTS
a.

Check that the hybrid control system starts.

OK:

Hybrid control system starts normally.



Result:
Proceed to
OK
NG



OK

END (ID CODE BOX (IMMOBILISER CODE ECU) WAS DEFECTIVE)

NG
