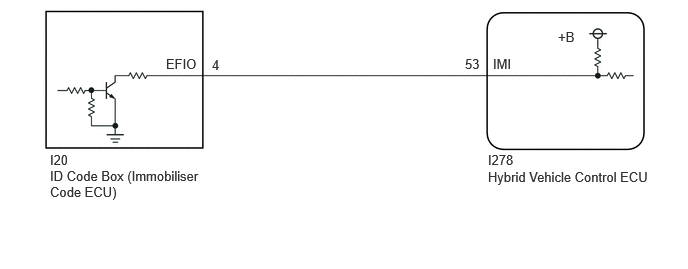

If the communication line (IMI - EFIO) between the hybrid vehicle control ECU and ID code box (immobiliser code ECU) is stuck high, the hybrid vehicle control ECU will store this DTC.
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | Note |
|---|---|---|---|---|
| B279A12 | Engine Immobiliser System Circuit Short to Battery | The communication line (IMI - EFIO) between the hybrid vehicle control ECU and ID code box (immobiliser code ECU) is stuck high. (1 trip detection logic*) | ·
ID code box (immobiliser code ECU) ·
Hybrid vehicle control ECU ·
Wire harness or connector |
DTC output confirmation operation:
Turn the ignition switch to ON and wait 6 seconds. |
*: Only output while a malfunction is present.
| Vehicle Condition when Malfunction Detected | Fail-safe Operation when Malfunction Detected |
|---|---|
| Hybrid control system cannot be started | Hybrid control system cannot be started |
| DTC No. | Data List and Active Test |
|---|---|
| B279A12 | - |
When using the GTS with the ignition switch off, connect the GTS to the DLC3 and turn a courtesy light switch on and off at intervals of 1.5 seconds or less until communication between the GTS and the vehicle begins. Then select Model Code "KEY REGIST" under manual mode and enter the following menus: Body Electrical / Entry&Start(CAN). While using the GTS, periodically turn a courtesy light switch on and off at intervals of 1.5 seconds or less to maintain communication between the GTS and the vehicle.
The smart entry and start system (for Start Function) uses the LIN communication system and CAN communication system. Inspect the communication function by following How to Proceed with Troubleshooting. Troubleshoot the smart entry and start system (for Start Function) after confirming that the communication systems are functioning properly.
Before replacing the hybrid vehicle control ECU or ID code box (immobiliser code ECU), refer to Service Bulletin.
After performing repairs, confirm that no DTCs are output by performing "DTC Output Confirmation Operation".
When DTC B279A12 and the certification ECU (smart key ECU assembly) DTC are output simultaneously, first perform troubleshooting for the certification ECU (smart key ECU assembly) DTC.
Turn the ignition switch off.
Check that the connectors are properly connected to the hybrid vehicle control ECU and ID code box (immobiliser code ECU).
Connectors are properly connected.
| Proceed to |
|---|
| OK |
| NG |
OK
NG

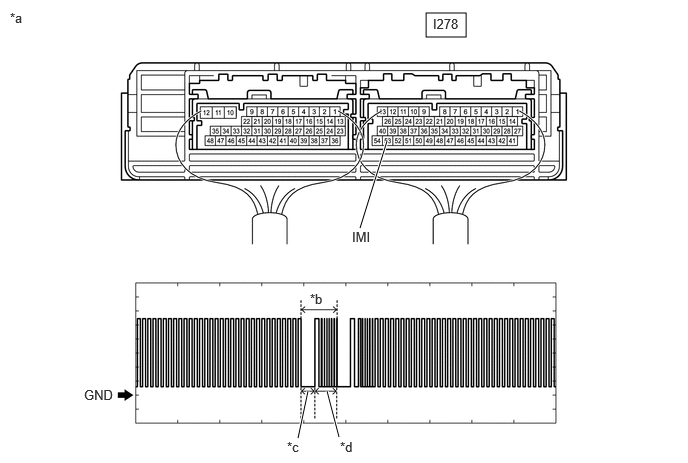

Using an oscilloscope, check the waveform.
| *a | Component with harness connected
(Hybrid Vehicle Control ECU) |
*b | Waveform |
| *c | Approximately 160 ms. | *d | Approximately 270 ms. |
| Tester Connection | Condition | Tool Setting | Specified Condition |
|---|---|---|---|
| I278-53 (IMI) - Body ground | Within 3 seconds of hybrid control system start or within 3 seconds of ignition switch turned to ON after cable disconnected and reconnected to auxiliary battery | 2 V/DIV., 500 ms./DIV. | Pulse generation
(See waveform) |
| Result | Proceed to |
|---|---|
| 11 to 14 V | A |
| Below 1 V | B |
| Normal waveform |
A
B
Disconnect the I278 hybrid vehicle control ECU connector.
Disconnect the I20 code box (immobiliser code ECU) connector.
Measure the resistance according to the value(s) in the table below.
| Tester Connection | Condition | Specified Condition |
|---|---|---|
| I20-4 (EFIO) - I278-53 (IMI) | Always | Below 1 Ω |
| Proceed to |
|---|
| OK |
| NG |
OK
NG
