POWER OUTLETS (INT) WIRELESS CHARGING SYSTEM SYSTEM DESCRIPTION
WIRELESS CHARGER FUNCTION OUTLINE
The wireless charging system allows Qi-compatible* devices to be charged without connecting acharging cable by placing compatible devices on the charging area in the charging tray of the mobilewireless charger cradle assembly to activate the charging coil.
- HINT:
-
*: Qi-compatible is an international wireless charging standard set by the Wireless Power Consortium (WPC). The wireless charging system is compatible with Power Class 0 as defined by Qi-compatible Ver. 1.2.4 and supports charging from 5 W up to 15 W.
Qi-compatible devices which do not fit within the charging area cannot be used. If a Qi-compatible device does not operate normally, refer to the owner's manual of the device.
Qi-compatible rechargeable devices can be charged.
- HINT:
- ·
"Qi" and "Qi" logo are trademarks of the Wireless Power Consortium (WPC).
·Although the wireless charging system meets Qi standards, compatibility with all Qi-compatible devices is not guaranteed.
CHARGING INDICATOR STATUS

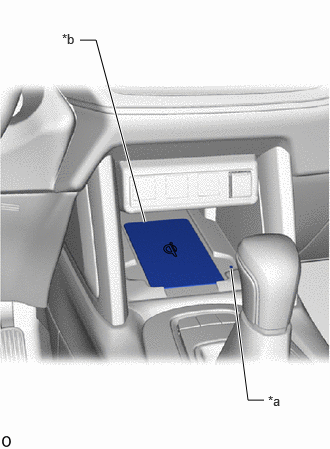

| *a | Indicator Light (Green/Red) |
| *b | Charging Area |
The indicator light shows the operation condition of the wireless charging system.
| Indicator | Operation Condition | |
|---|---|---|
| Condition | Color | |
|

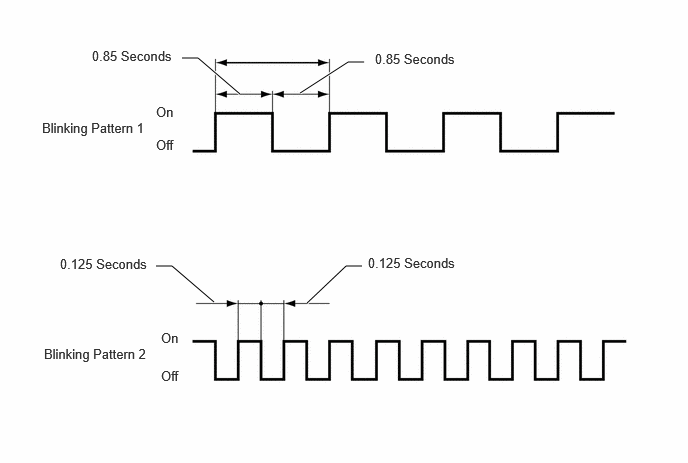

*1: Some mobile devices, cases or accessories may not cause the indicator (green) to illuminate when charging is complete, even though they are Qi-compatible. Check the mobile device to confirm the charge status. *2: Refer to the following diagram for details about the indicator blinking patterns. |
||
| Off | - | Wireless charging system is turned off |
| On | Green | ·
Wireless charging system is on (stand-by) ·
Charging is complete*1 ·
Charging is temporarily stopped |
| Blinks
(Pattern 1)*2 |
Red | A rechargeable device is being charged |
| Blinks
(Pattern 2)*2 |
Red | ·
There is a communication malfunction between the wireless charging system and certification ECU (smart key ECU assembly) ·
Foreign matter exists between the rechargeable device and the charging area ·
A gap exists between the rechargeable device and the charging area ·
The rechargeable device is not placed correctly on the charging area ·
It is detected that the rechargeable device has been moved from the location where it was first placed when charging started ·
The temperature of the mobile wireless charger cradle assembly is abnormally high |
RESUMPTION OF CHARGING
If the rechargeable device is moved while it is being charged, charging will resume when the device is placed on the charging area.
SUSPENSION OF CHARGING DUE TO THE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)
The wireless charging system uses the same radio wave frequency that is used to perform verification of the electrical key transmitter sub-assembly. Therefore, when the electrical key transmitter sub-assembly verification is being performed, the certification ECU (smart key ECU assembly) sends a charging suspension signal to the wireless charging system to suspend charging.
- HINT:
- ·
When charging is suspended due to the charging suspension signal, the indicator (green) will illuminate.
·If there is an open in the charging suspension signal circuit, the indicator (red) will blink (pattern 2)
The certification ECU (smart key ECU assembly) sends the charging suspension signal when any ofthe following conditions is met:
A door is opened and closed.
The back door opening switch is pressed.
The back door is closed.
Starting the hybrid system.
An electrical key transmitter sub-assembly is not detected in the cabin.
