RM38T0EC _57 Power Source / Network _104409 NETWORKING _0606038 CAN COMMUNICATION SYSTEM(for HEV Model) J

NETWORKING  CAN COMMUNICATION SYSTEM(for HEV Model)  Parking Assist ECU Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Parking Assist ECU Communication Stop Mode Communication stop for "Panoramic View Monitor / Circumference Monitoring Camera Control Module" is indicated on the "Communication Bus Check" screen of the GTS.
Click here(Click here)
·

Parking assist ECU branch line or connector

·

Power source circuit of parking assist ECU

·

Parking assist ECU ground circuit

·

Parking assist ECU

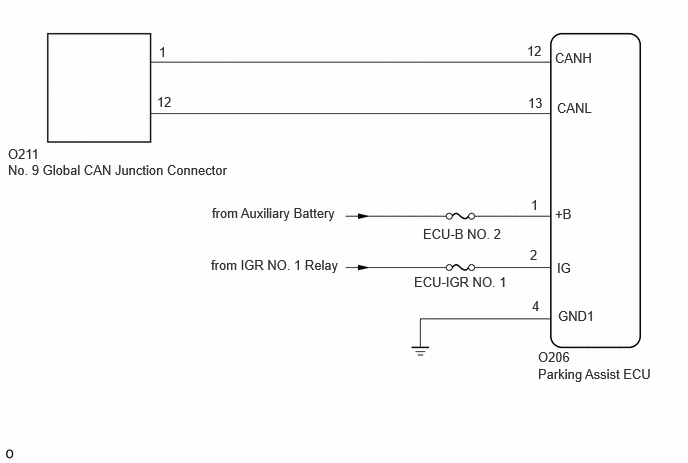

WIRING DIAGRAM

C499942E06
1.635,0.979 1.875,1.156 0.24,0.177 10 false 12 0.083,1.521 0.823,1.688 0.74,0.167 10 false O211 0.083,1.688 2.938,1.927 2.854,0.24 10 false No. 9 Global CAN Junction Connector 5.49,0.448 5.729,0.719 0.24,0.271 10 false 12 1.656,0.458 1.844,0.635 0.188,0.177 10 false 1 5.5,0.99 5.75,1.167 0.25,0.177 10 false 13 5.781,0.521 6.229,0.729 0.448,0.208 10 false CANH 5.802,1.042 6.25,1.25 0.448,0.208 10 false CANL 5.781,2.146 6.229,2.354 0.448,0.208 10 false +B 5.802,2.708 6.25,2.917 0.448,0.208 10 false IG 5.813,3.208 6.365,3.417 0.552,0.208 10 false GND1 5.531,2.052 5.719,2.229 0.188,0.177 10 false 1 5.521,2.573 5.708,2.75 0.188,0.177 10 false 2 5.542,3.104 5.729,3.281 0.188,0.177 10 false 4 4.406,2.354 5.365,2.625 0.958,0.271 10 false ECU-B NO. 2 4.313,2.854 5.385,3.073 1.073,0.219 10 false ECU-IGR NO. 1 5.604,3.635 6.042,3.844 0.438,0.208 10 false O206 5.604,3.813 7.125,4.073 1.521,0.26 10 false Parking Assist ECU 2.208,2.135 3.677,2.354 1.469,0.219 10 false from Auxiliary Battery 2.198,2.677 3.604,2.885 1.406,0.208 10 false from IGR NO. 1 Relay

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minute or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>DIAGNOSIS SYSTEM

·

Inspect the fuses for circuits related to this system before performing the following procedure.



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS LINES (PARKING ASSIST ECU BRANCH LINE)
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the parking assist ECU connector.


c.

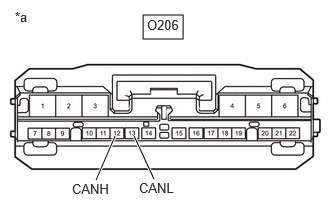

C464768C67
1.49,0.156 1.906,0.406 0.417,0.25 1.198,1.417 1,1.875 true 1.396,1.417 1.604,1.865 true 0.156,0.094 0.469,0.292 0.313,0.198 10 false *a 1.531,0.177 1.958,0.375 0.427,0.198 10 false O206 0.75,1.885 1.208,2.073 0.458,0.188 10 false CANH 1.448,1.875 1.906,2.063 0.458,0.188 10 false CANL
*a Front view of wire harness connector
(to Parking Assist ECU)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O206-12 (CANH) - O206-13 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (PARKING ASSIST ECU)

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

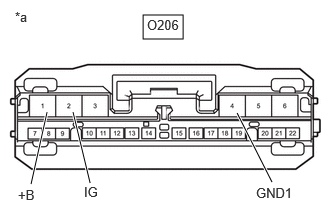

C464768C68
1.49,0.156 1.906,0.406 0.417,0.25 0.76,1.167 0.938,1.906 true 2.469,1.177 2.833,1.896 true 0.49,1.167 0.323,1.917 true 0.156,0.094 0.469,0.292 0.313,0.198 10 false *a 1.531,0.177 1.958,0.375 0.427,0.198 10 false O206 0.875,1.917 1.333,2.104 0.458,0.188 10 false IG 2.667,1.927 3.125,2.115 0.458,0.188 10 false GND1 0.188,1.948 0.646,2.135 0.458,0.188 10 false +B
*a Front view of wire harness connector
(to Parking Assist ECU)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
O206-4 (GND1) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) auxiliary battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
O206-1 (+B) - Body ground Ignition switch off 11 to 14 V
O206-2 (IG) - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

REPLACE PARKING ASSIST ECU

Click hereAudio / Visual / Telematics>PARK ASSIST / MONITORING>PARKING ASSIST ECU>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
