NETWORKING  CAN COMMUNICATION SYSTEM(for HEV Model)  Steering Angle Sensor Communication Stop Mode


DESCRIPTION

Detection Item Symptom Trouble Area
Steering Angle Sensor Communication Stop Mode Communication stop for "Spiral cable (Steering Angle Sensor)" is indicated on the "Communication Bus Check" screen of the GTS.
Click here(Click here)
·

Steering sensor branch line or connector

·

Power source circuit of steering sensor

·

Steering sensor ground circuit

·

Steering sensor



WIRING DIAGRAM

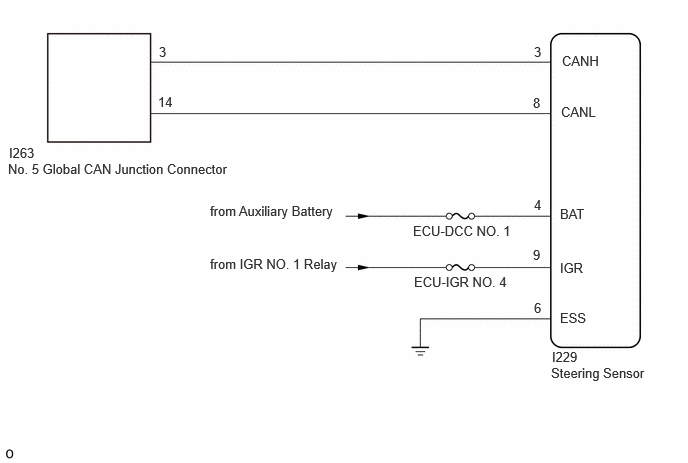

C499942E11
1.646,0.979 1.885,1.156 0.24,0.177 10 false 14 0.094,1.51 0.833,1.677 0.74,0.167 10 false I263 0.083,1.677 2.938,1.917 2.854,0.24 10 false No. 5 Global CAN Junction Connector 5.563,0.458 5.802,0.729 0.24,0.271 10 false 3 1.656,0.458 1.844,0.635 0.188,0.177 10 false 3 5.552,0.99 5.802,1.167 0.25,0.177 10 false 8 5.854,0.552 6.302,0.76 0.448,0.208 10 false CANH 5.844,1.083 6.292,1.292 0.448,0.208 10 false CANL 5.833,2.146 6.281,2.354 0.448,0.208 10 false BAT 5.833,2.708 6.281,2.917 0.448,0.208 10 false IGR 5.833,3.229 6.385,3.438 0.552,0.208 10 false ESS 5.563,2.052 5.75,2.229 0.188,0.177 10 false 4 5.552,2.573 5.74,2.75 0.188,0.177 10 false 9 5.563,3.125 5.75,3.302 0.188,0.177 10 false 6 4.302,2.323 5.656,2.583 1.354,0.26 10 false ECU-DCC NO. 1 4.313,2.854 5.385,3.073 1.073,0.219 10 false ECU-IGR NO. 4 5.75,3.635 6.188,3.844 0.438,0.208 10 false I229 5.74,3.802 6.854,4.083 1.115,0.281 10 false Steering Sensor 2.188,2.115 3.656,2.333 1.469,0.219 10 false from Auxiliary Battery 2.188,2.667 3.594,2.875 1.406,0.208 10 false from IGR NO. 1 Relay

CAUTION / NOTICE / HINT

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


NOTICE:
·

Because the order of diagnosis is important to allow correct diagnosis, make sure to begin troubleshooting using How to Proceed with Troubleshooting when CAN communication system related DTCs are output.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>HOW TO PROCEED WITH TROUBLESHOOTING

·

Before measuring the resistance of the CAN bus, turn the ignition switch off and leave the vehicle for 1 minute or more without operating the key or any switches, or opening or closing the doors. After that, disconnect the cable from the negative (-) auxiliary battery terminal and leave the vehicle for 10 minute or more before measuring the resistance.

·

After the ignition switch is turned off, there may be a waiting time before disconnecting the negative (-) auxiliary battery terminal.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>BEFORE DISCONNECTING BATTERY

·

When disconnecting and reconnecting the auxiliary battery.

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Click hereGeneral>SETUP>WHEN DISCONNECTING OR RECONNECTING BATTERY TERMINAL>AUTOMATIC LEARNING CHART


·

Some parts must be initialized and set when replacing or removing and installing parts.

Click hereGeneral>SETUP>WHEN REPLACING OR REMOVING/INSTALLING PARTS>WORK PROCEDURE

·

After performing repairs, perform the DTC check procedure and confirm that the DTCs are not output again.

DTC check procedure: Turn the ignition switch to ON and wait for 1 minute or more. Then operate the suspected malfunctioning system and drive the vehicle at 60 km/h (37 mph) or more for 5 minutes or more.

·

After the repair, perform the CAN bus check and check that all the ECUs and sensors connected to the CAN communication system are displayed as normal.

Click herePower Source / Network>NETWORKING>CAN COMMUNICATION SYSTEM (for HEV Model)>DIAGNOSIS SYSTEM

·

Inspect the fuses for circuits related to this system before performing the following procedure.



HINT:
·

Before disconnecting related connectors for inspection, push in on each connector body to check that the connector is not loose or disconnected.

·

When a connector is disconnected, check that the terminals and connector body are not cracked, deformed or corroded.



PROCEDURE

1.CHECK FOR OPEN IN CAN BUS LINES (STEERING SENSOR BRANCH LINE)
a.

Disconnect the cable from the negative (-) auxiliary battery terminal.


b.

Disconnect the steering sensor connector.


c.

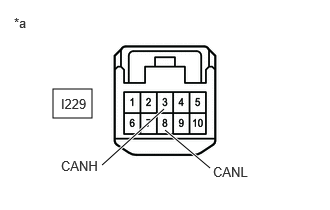

C427527C82
0.552,0.927 0.958,1.229 0.406,0.302 1.063,1.719 1.708,1.135 true 2.188,1.75 1.719,1.354 true 0.146,0.156 0.458,0.354 0.313,0.198 10 false *a 0.635,1 0.948,1.198 0.313,0.198 10 false I229 0.635,1.646 1.333,1.885 0.698,0.24 10 false CANH 2.219,1.708 2.917,1.948 0.698,0.24 10 false CANL
*a Front view of wire harness connector
(to Steering Sensor)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I229-3 (CANH) - I229-8 (CANL) Cable disconnected from negative (-) auxiliary battery terminal 54 to 69 Ω



Result:
Proceed to
OK
NG



OK

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)

NG

REPAIR OR REPLACE CAN BRANCH LINES OR CONNECTOR (STEERING SENSOR)

2.CHECK HARNESS AND CONNECTOR (POWER SOURCE CIRCUIT)
a.

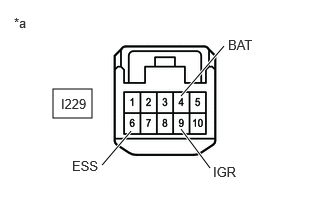

C427527C83
0.552,0.927 0.958,1.229 0.406,0.302 1.063,1.719 1.365,1.365 true 2.188,1.75 1.885,1.344 true 2.333,0.479 1.885,1 true 0.146,0.156 0.458,0.354 0.313,0.198 10 false *a 0.635,1 0.948,1.198 0.313,0.198 10 false I229 0.75,1.646 1.448,1.885 0.698,0.24 10 false ESS 2.219,1.708 2.917,1.948 0.698,0.24 10 false IGR 2.375,0.385 2.781,0.625 0.406,0.24 10 false BAT
*a Front view of wire harness connector
(to Steering Sensor)


Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
I229-6 (ESS) - Body ground Cable disconnected from negative (-) auxiliary battery terminal Below 1 Ω



b.

Reconnect the cable to the negative (-) auxiliary battery terminal.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Switch Condition Specified Condition
I229-4 (BAT) - Body ground Ignition switch off 11 to 14 V
I229-9 (IGR) - Body ground Ignition switch ON 11 to 14 V



Result:
Proceed to
OK
NG



OK

REPLACE STEERING SENSOR

Click hereBrake>BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS>STEERING ANGLE SENSOR>REMOVAL


NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (POWER SOURCE CIRCUIT)
