RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0605894 CRANKSAFT POSITION SENSOR A

M20F-FXS, M20G-FXS ENGINE CONTROL  CRANKSAFT POSITION SENSOR  INSTALLATION


CAUTION / NOTICE / HINT

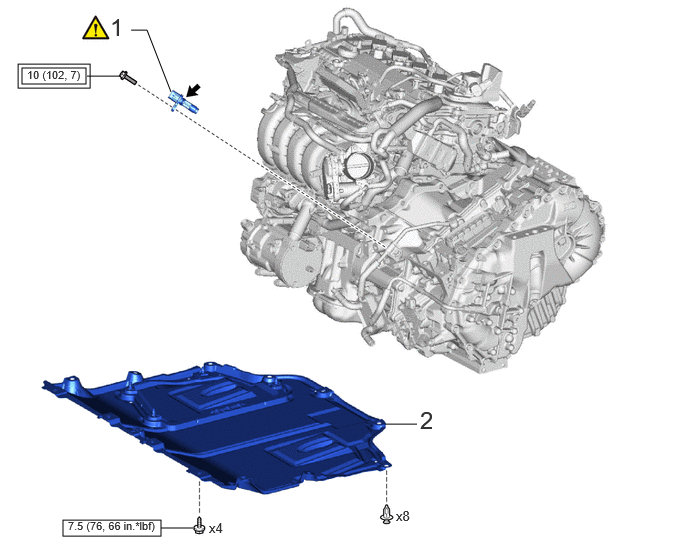

COMPONENTS (INSTALLATION)
A524419N01
0.229,0.708 0.896,0.875 0.667,0.167 0.656,5.417 1.677,5.583 1.021,0.167 0.188,0.667 0.938,0.917 0.75,0.25 1.365,0.313 1.531,0.313 1.531,0.313 1.781,0.958 false 4.01,4.417 4.344,4.417 false 1.677,5.5 2.01,5.5 false 0.906,0.792 1.24,0.792 false 1.146,0.135 1.427,0.49 0.281,0.354 18 false 1 4.375,4.229 4.656,4.583 0.281,0.354 18 false 2 4.125,5.292 4.531,5.583 0.406,0.292 10 false x8 2.177,5.417 2.583,5.708 0.406,0.292 10 false x4 0.281,0.708 1.635,0.865 1.354,0.156 8 false 10 (102, 7) 0.708,5.406 2.063,5.563 1.354,0.156 8 false 7.5 (76, 66 in.*lbf)

Procedure Part Name Code
Z101186

Z101188

Z101187

1 CRANKSHAFT POSITION SENSOR 11401G (Click here) - -
2 NO. 1 ENGINE UNDER COVER ASSEMBLY 51410 - - -

V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m(kgf*cm, ft.*lbf)
V100146

N*m (kgf*cm, ft.*lbf): Specified torque
V100135

TOYOTA genuine engine oil - -

CAUTION / NOTICE / HINT

NOTICE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION


PROCEDURE

Hide 11401G 1.INSTALL CRANKSHAFT POSITION SENSOR

a.
A524421N01
0.396,0.021 0.677,0.375 0.281,0.354 18 false i 3.583,0.031 4.167,0.333 0.583,0.302 18 false ii, iii

i.

Apply a light coat of engine oil to the O-ring of the crankshaft position sensor.

NOTICE:

If reusing the crankshaft position sensor, be sure to inspect the O-ring.



ii.

Using an 8 mm socket wrench, install the crankshaft position sensor to the cylinder block sub-assembly with the bolt.

Torque:
10 N*m (102 kgf*cm, 7 ft.*lbf)

NOTICE:
·

If the crankshaft position sensor has been struck or dropped, replace it.

·

Make sure that the O-ring is not cracked or moved out of place when installing the crankshaft position sensor.




iii.

Connect the crankshaft position sensor connector.
