CRANKSAFT POSITION SENSOR
A
M20F-FXS, M20G-FXS ENGINE CONTROL CRANKSAFT POSITION SENSOR REMOVAL
CAUTION / NOTICE / HINT

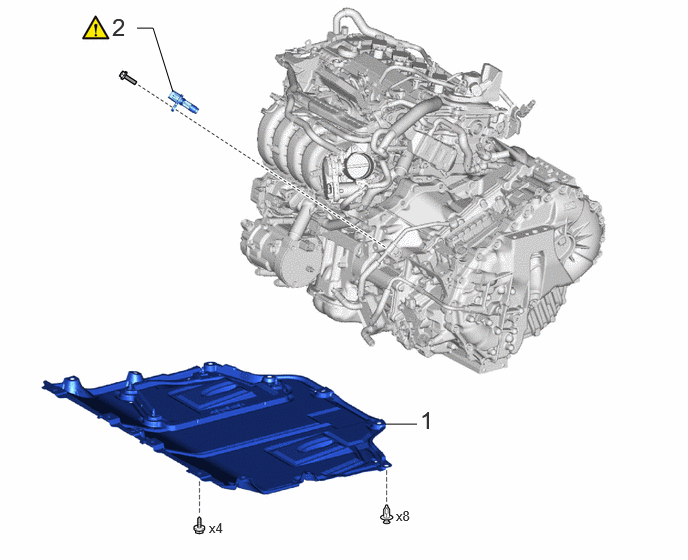

COMPONENTS (REMOVAL)
1.427,0.292 1.594,0.292
1.594,0.292 1.802,0.958
false
4.01,4.417 4.344,4.417
false
1.167,0.135 1.448,0.49
0.281,0.354
18
false
2
4.375,4.229 4.656,4.583
0.281,0.354
18
false
1
4.125,5.292 4.531,5.583
0.406,0.292
10
false
x8
2.177,5.417 2.583,5.708
0.406,0.292
10
false
x4
| Procedure | Part Name Code |
|
|
|
|
|---|---|---|---|---|---|
| 1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | 51410 | - | - | - |
| 2 | CRANKSHAFT POSITION SENSOR | 11401G | ( 202307,999999,_51,_144956,_0605894,RM100000002C06R_02_0013,)
|
- | - |
CAUTION / NOTICE / HINT
- NOTICE:
-
This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
PROCEDURE
51410
1.REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
11401G
2.REMOVE CRANKSHAFT POSITION SENSOR
a.
0.375,0.031 0.823,0.385
0.448,0.354
18
false
i, ii
i.
Disconnect the crankshaft position sensor connector.
ii.
Using an 8 mm socket wrench, remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
- NOTICE:
-
If the crankshaft position sensor has been struck or dropped, replace it.
