RM38T0EC _58 Vehicle Interior _114202 SEAT BELT _0509306 CHILD RESTRAINT SEAT ANCHOR BRACKET A

SEAT BELT CHILD RESTRAINT SEAT ANCHOR BRACKET INSTALLATION

CAUTION / NOTICE / HINT

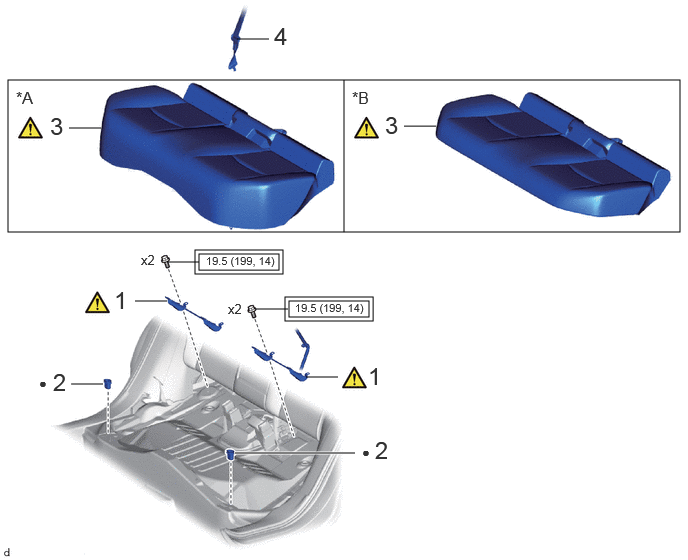

COMPONENTS (INSTALLATION)

0.083,0.833 7.083,2.417 7,1.583 3.01,3.135 3.844,3.302 0.833,0.167 2.969,3.094 3.885,3.344 0.917,0.25 2.031,2.604 2.948,2.854 0.917,0.25 2.073,2.646 2.906,2.813 0.833,0.167 3.583,2.417 3.583,0.833 false 3.188,3.927 3.521,3.927 false 2.667,3.219 3,3.219 false 1.406,3.135 1.74,3.135 false 1.74,2.729 2.073,2.729 false 0.74,4 1.073,4 false 0.719,1.333 1.052,1.333 false 4.208,1.313 4.542,1.313 false 2.469,0.406 2.802,0.406 false 2.448,4.719 3.698,4.719 true 3.073,3.135 3.927,3.375 0.854,0.24 8 false 19.5 (199, 14) 3.833,3.771 4.115,4.125 0.281,0.354 18 false 1 1.188,2.979 1.469,3.333 0.281,0.354 18 false 1 0.552,3.833 0.833,4.188 0.281,0.354 18 false 2 3.906,4.542 4.188,4.896 0.281,0.354 18 false 2 0.521,1.167 0.802,1.521 0.281,0.354 18 false 3 4.01,1.156 4.292,1.51 0.281,0.354 18 false 3 2.854,0.229 3.135,0.583 0.281,0.354 18 false 4 0.167,0.917 0.542,1.156 0.375,0.24 12 false *A 3.667,0.917 4.042,1.156 0.375,0.24 12 false *B 3.771,4.625 3.927,4.823 0.156,0.198 10 false ● 1.469,2.625 1.781,2.823 0.313,0.198 10 false x2 2.375,3.135 2.688,3.333 0.313,0.198 10 false x2 0.406,3.906 0.563,4.104 0.156,0.198 10 false ● 2.146,2.646 3,2.885 0.854,0.24 8 false 19.5 (199, 14)

Procedure		Part Name Code
1	CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY	73707	(202307,999999,_58,_114202,_0509306,RM100000002BZYO_01_0017,)	-	-
2	REAR SEAT CUSHION LOCK HOOK	72693	-	-	-
3	BENCH TYPE REAR SEAT CUSHION ASSEMBLY	-	(202307,999999,_58,_114202,_0509306,RM100000002BZYO_01_0049,)	-	-
4	REAR CENTER SEAT OUTER BELT ASSEMBLY	73350C	-	-	-

*A	for Gasoline Model	*B	for HEV Model
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	●	Non-reusable part

PROCEDURE

Hide Display 73707 1.INSTALL CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

for RH Side:

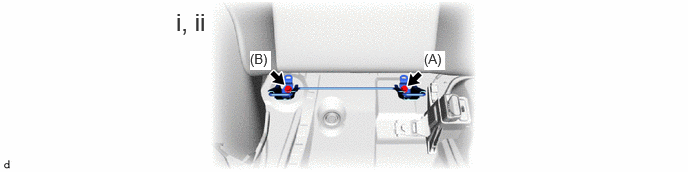

4.417,0.531 4.635,0.729 0.219,0.198 10 true (A) 2.604,0.531 2.823,0.729 0.219,0.198 10 true (B) 1.833,0.083 3.208,0.438 1.375,0.354 18 false i, ii

Temporarily install the child restraint seat anchor bracket sub-assembly RH with the 2 bolts.

ii.

Fully tighten the bolt (A) and then the bolt (B) to install the child restraint seat anchor bracket sub-assembly RH.

Torque:: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)

for LH Side:

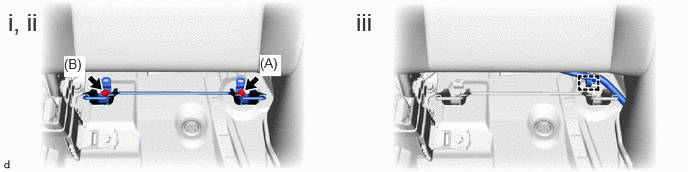

2.708,0.573 2.927,0.792 0.219,0.219 10 true (A) 0.667,0.583 0.885,0.802 0.219,0.219 10 true (B) 0.083,0.083 1.458,0.438 1.375,0.354 18 false i, ii 3.708,0.083 5.083,0.438 1.375,0.354 18 false iii

Temporarily install the child restraint seat anchor bracket sub-assembly LH with the 2 bolts.

ii.

Fully tighten the bolt (A) and then the bolt (B) to install the child restraint seat anchor bracket sub-assembly LH.

Torque:: 19.5 N*m (199 kgf*cm, 14 ft.*lbf)

iii.

Engage the clamp.

Hide Display 72693 2.INSTALL REAR SEAT CUSHION LOCK HOOK

Hide Display 3.INSTALL BENCH TYPE REAR SEAT CUSHION ASSEMBLY

for Gasoline Model

Click here(202307,999999,_58,_114203,_0509293,RM100000002BZY2_01_0021,)

for HEV Model

Click here(202307,999999,_58,_114203,_0509293,RM100000002BZY2_01_0031,)

Hide Display 73350C 4.CONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY
