RM38T0EC _58 Vehicle Interior _114202 SEAT BELT _0509302 REAR SEAT INNER BELT ASSEMBLY(for LH Side) A

SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for LH Side)  REMOVAL


CAUTION / NOTICE / HINT

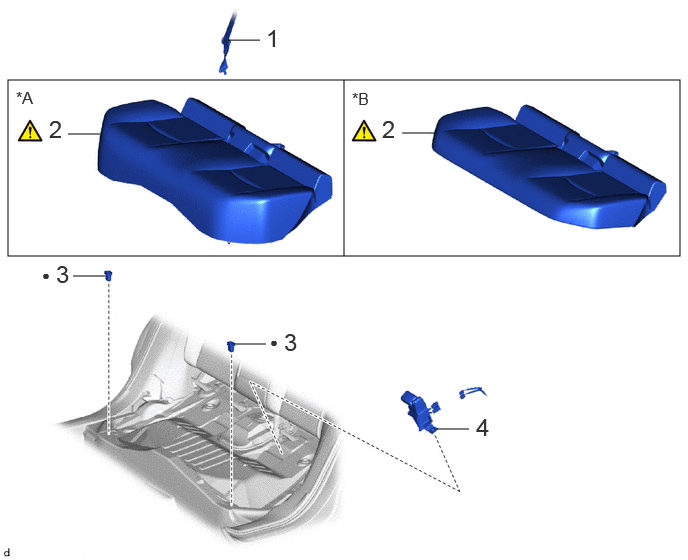

COMPONENTS (REMOVAL)
B605387N01
0.083,0.833 7.083,2.667 7,1.833 2.438,3.583 2.771,3.583 false 3.583,2.667 3.583,0.833 false 0.76,2.875 1.094,2.875 false 0.708,1.396 1.042,1.396 false 2.375,0.417 2.708,0.417 false 4.188,1.385 4.521,1.385 false 4.552,4.469 4.885,4.469 false 2.771,0.25 3.052,0.604 0.281,0.354 18 false 1 2.813,3.479 2.969,3.677 0.156,0.198 10 false ● 0.167,0.917 0.542,1.156 0.375,0.24 12 false *A 3.667,0.927 4.042,1.167 0.375,0.24 12 false *B 3.979,1.198 4.26,1.552 0.281,0.354 18 false 2 0.51,1.198 0.792,1.552 0.281,0.354 18 false 2 0.583,2.708 0.865,3.063 0.281,0.354 18 false 3 2.958,3.417 3.24,3.771 0.281,0.354 18 false 3 4.958,4.302 5.24,4.656 0.281,0.354 18 false 4 0.438,2.781 0.594,2.979 0.156,0.198 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

1 REAR CENTER SEAT OUTER BELT ASSEMBLY 73350C - - -
2 BENCH TYPE REAR SEAT CUSHION ASSEMBLY - (Click here) - -
3 REAR SEAT CUSHION LOCK HOOK 72693 - - -
4 REAR SEAT INNER WITH CENTER BELT ASSEMBLY 73480 - - -

*A for Gasoline Model *B for HEV Model
● Non-reusable part - -

PROCEDURE

Hide 2.REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

Z101186

·

for Gasoline Model

Click here(Click here)

·

for HEV Model

Click here(Click here)



Hide 73480 4.REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY

a.
B625955

HINT:

The bolt cannot be removed from the rear seat inner with center belt assembly.
