RM38T0EC _58 Vehicle Interior _114203 SEAT _0509293 REAR SEAT ASSEMBLY A

SEAT  REAR SEAT ASSEMBLY  REASSEMBLY


CAUTION / NOTICE / HINT

COMPONENTS (REASSEMBLY)
B685093N01

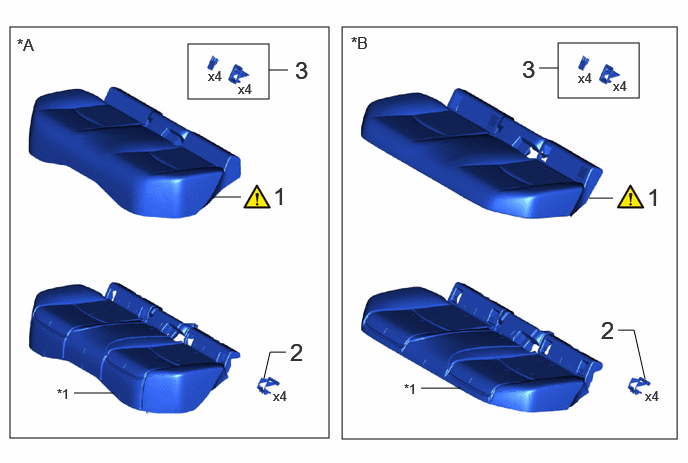

0.104,0.281 3.427,4.563 3.323,4.281 3.563,0.281 7.052,4.573 3.49,4.292 1.958,0.458 2.802,1.031 0.844,0.573 5.813,0.448 6.656,1.021 0.844,0.573 2.802,0.729 3,0.729 false 5.615,0.708 5.813,0.708 false 2.219,2.052 2.51,2.052 false 6.135,2.063 6.385,2.063 false 0.771,4.094 1.188,4.094 false 4.385,4.042 4.802,4.042 false 2.75,3.938 2.813,3.667 2.813,3.667 2.979,3.667 false 6.719,3.948 6.604,3.438 6.604,3.438 6.438,3.438 false 3.073,0.583 3.625,0.938 0.552,0.354 18 false 3 2.844,1.896 3.396,2.25 0.552,0.354 18 false 1 3.021,3.521 3.375,3.865 0.354,0.344 18 false 2 2.167,0.708 2.406,0.906 0.24,0.198 10 false x4 2.479,0.844 2.719,1.042 0.24,0.198 10 false x4 0.594,4.021 0.833,4.219 0.24,0.198 10 false *1 2.844,4.042 3.083,4.24 0.24,0.198 10 false x4 0.177,0.365 0.729,0.719 0.552,0.354 12 false *A 3.656,0.344 4.208,0.698 0.552,0.354 12 false *B 5.438,0.573 5.99,0.927 0.552,0.354 18 false 3 6.74,1.906 7.073,2.229 0.333,0.323 18 false 1 6.26,3.292 6.615,3.635 0.354,0.344 18 false 2 4.208,3.969 4.448,4.167 0.24,0.198 10 false *1 6.719,4.042 6.958,4.24 0.24,0.198 10 false x4 6.385,0.813 6.625,1.01 0.24,0.198 10 false x4 6.021,0.729 6.26,0.927 0.24,0.198 10 false x4

Procedure Part Name Code
Z101186

Z101188

Z101187

1 BENCH TYPE REAR SEAT CUSHION COVER 71078S (Click here) - -
2 CHILD RESTRAINT SEAT GUIDE CUP 73735A - - -
3 CHILD RESTRAINT SEAT TETHER ANCHOR COVER 73731 - - -

*A for Gasoline Model *B for HEV Model
*1 REAR SEAT CUSHION PAD SUB-ASSEMBLY - -

B605058N06

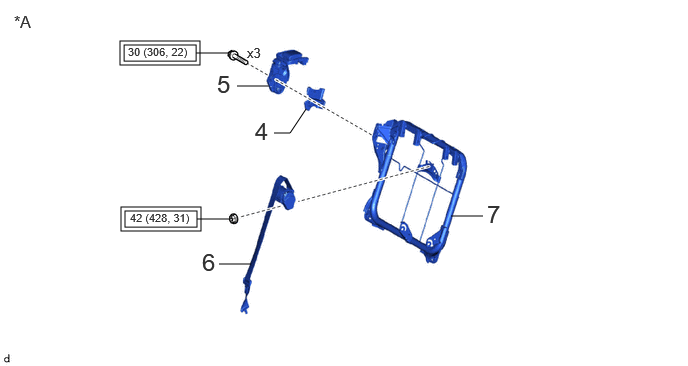

1.292,0.469 2.042,0.635 0.75,0.167 1.25,0.427 2.083,0.677 0.833,0.25 1.302,2.198 2.052,2.365 0.75,0.167 1.26,2.156 2.094,2.406 0.833,0.25 4.698,2.25 5.031,2.25 false 2.281,2.75 2.615,2.75 false 2.469,0.896 2.802,0.896 false 2.854,1.385 3.021,1.385 3.021,1.385 3.188,1.135 false 2.042,0.552 2.375,0.552 false 2.052,2.281 2.385,2.281 false 5.073,2.083 5.625,2.438 0.552,0.354 18 false 7 2.104,2.583 2.656,2.938 0.552,0.354 18 false 6 2.26,0.729 2.813,1.083 0.552,0.354 18 false 5 2.656,1.219 3.208,1.573 0.552,0.354 18 false 4 2.573,0.469 2.885,0.667 0.313,0.198 10 false x3 0.146,0.125 0.521,0.365 0.375,0.24 12 false *A 1.333,0.469 2.802,0.625 1.469,0.156 8 false 30 (306, 22) 1.354,2.198 2.823,2.354 1.469,0.156 8 false 42 (428, 31)

Procedure Part Name Code
Z101186

Z101188

Z101187

4 REAR SEATBACK LOCK STRIKER PROTECTOR 72618A - - -
5 REAR SEATBACK LOCK ASSEMBLY RH 72630C - - -
6 REAR CENTER SEAT OUTER BELT ASSEMBLY 73350C - - -
7 REAR SEATBACK FRAME SUB-ASSEMBLY RH 71017 - - -

*A for RH Side - -
V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -

B639791N01

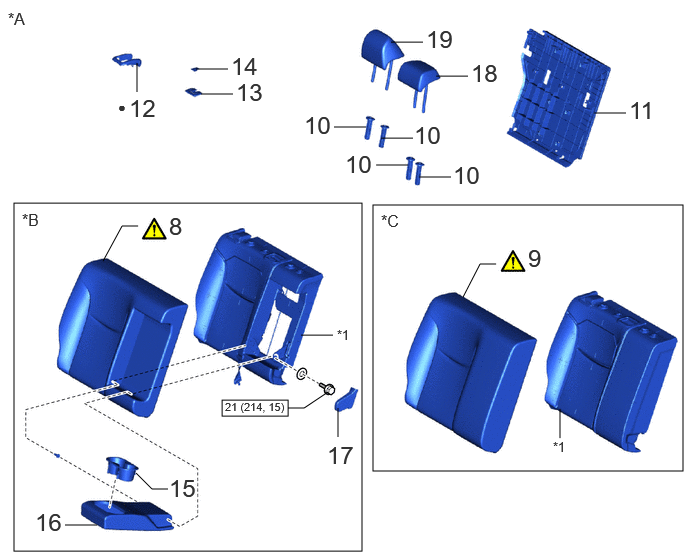

0.146,2.115 3.771,5.74 3.625,3.625 3.885,2.135 7.115,4.906 3.229,2.771 2.313,4.167 3,4.333 0.688,0.167 4.073,0.438 4.406,0.438 false 0.677,5.469 1.01,5.469 false 1.417,4.927 1.583,5.094 1.583,5.094 1.75,5.094 false 2.042,0.719 2.375,0.719 false 2.094,0.979 2.427,0.979 false 5.833,4.563 5.833,4.26 false 6.188,1.177 6.521,1.177 false 3.479,1.323 3.813,1.323 false 1.073,2.719 1.271,2.354 1.271,2.354 1.438,2.354 false 4.823,3.094 5,2.75 5,2.75 5.167,2.75 false 3.135,3.49 3.469,3.49 false 1.427,0.958 1.427,0.656 false 3.969,1.438 4.302,1.438 false 3.917,1.719 4.25,1.719 false 4.365,1.844 4.698,1.844 false 3.521,4.552 3.521,4.25 false 3,4.25 3.167,4.25 3.167,4.25 3.417,4.083 false 4.542,0.792 4.875,0.792 false 4.438,0.26 4.917,0.604 0.479,0.344 18 false 19 0.365,5.292 0.76,5.615 0.396,0.323 18 false 16 1.76,4.938 2.396,5.313 0.635,0.375 18 false 15 2.406,0.542 2.854,0.885 0.448,0.344 18 false 14 1.344,0.979 1.781,1.323 0.438,0.344 18 false 12 6.552,1 6.958,1.333 0.406,0.333 18 false 11 3.167,1.156 3.625,1.49 0.458,0.333 18 false 10 1.76,2.208 2.146,2.542 0.385,0.333 18 false 8 5.5,2.542 5.885,2.875 0.385,0.333 18 false 9 3.51,3.406 3.823,3.604 0.313,0.198 10 false *1 5.76,4.573 6,4.771 0.24,0.198 10 false *1 0.083,0.094 0.458,0.333 0.375,0.24 12 false *A 0.229,2.188 0.604,2.427 0.375,0.24 12 false *B 3.969,2.198 4.344,2.438 0.375,0.24 12 false *C 2.458,0.813 2.896,1.156 0.438,0.344 18 false 13 1.229,1.031 1.385,1.229 0.156,0.198 10 false ● 4.313,1.26 4.771,1.594 0.458,0.333 18 false 10 3.594,1.563 4.052,1.896 0.458,0.333 18 false 10 4.719,1.677 5.177,2.01 0.458,0.333 18 false 10 3.406,4.594 3.802,4.917 0.396,0.323 18 false 17 2.344,4.167 3.01,4.344 0.667,0.177 8 false 21 (214, 15) 4.906,0.615 5.385,0.958 0.479,0.344 18 false 18

Procedure Part Name Code
Z101186

Z101188

Z101187

8 SEPARATE TYPE REAR SEATBACK COVER 71077S (Click here) - -
9 SEPARATE TYPE REAR SEATBACK COVER 71077S (Click here) - -
10 REAR SEAT HEADREST SUPPORT 71931A - - -
11 REAR SEATBACK BOARD SUB-ASSEMBLY RH 71701C - - -
12 REAR SEATBACK LOCK UPPER BEZEL 72667A - - -
13 REAR SEAT SHOULDER BELT COVER 73373 - - -
14 SEAT BELT ANCHOR COVER CAP 73178A - - -
15 REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY 72806D - - -
16 REAR SEAT CENTER ARMREST ASSEMBLY 72830 - - -
17 CENTER ARMREST HINGE COVER 72868B - - -
18 REAR SEAT CENTER HEADREST ASSEMBLY 71960B - - -
19 REAR SEAT HEADREST ASSEMBLY 71940A - - -

*A for RH Side *B w/ Armrest
*C w/o Armrest - -
*1 SEPARATE TYPE REAR SEATBACK PAD - -
V100146

N*m (kgf*cm, ft.*lbf): Specified torque - -
● Non-reusable part - -

B582971N04

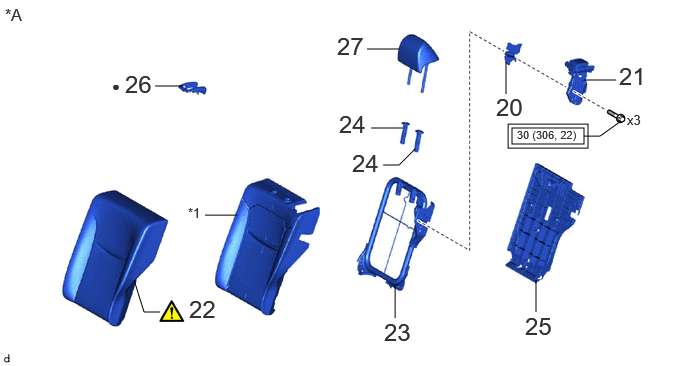

5.333,1.333 6.083,1.5 0.75,0.167 5.292,1.292 6.125,1.542 0.833,0.25 1.396,2.917 1.5,3.25 1.5,3.25 1.667,3.25 false 2.135,2.24 2.469,2.24 false 4.115,2.979 4.115,3.313 false 5.583,2.917 5.583,3.25 false 3.865,1.333 4.198,1.333 false 3.823,0.51 4.156,0.51 false 3.99,1.719 4.156,1.719 4.156,1.719 4.323,1.552 false 5.271,0.979 5.271,0.646 false 6.083,0.833 6.417,0.833 false 1.615,0.896 1.906,0.896 false 6.083,1.417 6.25,1.417 6.25,1.417 6.469,1.26 false 0.052,0.052 0.427,0.292 0.375,0.24 12 false *A 3.51,0.333 4.063,0.688 0.552,0.354 18 false 27 5.469,3.25 6.021,3.604 0.552,0.354 18 false 25 4,3.313 4.552,3.667 0.552,0.354 18 false 23 3.531,1.146 4.083,1.5 0.552,0.354 18 false 24 1.969,3.073 2.521,3.427 0.552,0.354 18 false 22 6.448,0.646 7,1 0.552,0.354 18 false 21 5.167,0.969 5.719,1.323 0.552,0.354 18 false 20 1.302,0.729 1.854,1.083 0.552,0.354 18 false 26 1.958,2.135 2.333,2.375 0.375,0.24 10 false *1 3.667,1.552 4.219,1.906 0.552,0.354 18 false 24 6.531,1.167 6.844,1.365 0.313,0.198 10 false x3 5.385,1.333 6.115,1.5 0.729,0.167 8 false 30 (306, 22) 1.167,0.813 1.542,1.052 0.375,0.24 10 false ●

Procedure Part Name Code
Z101186

Z101188

Z101187

20 REAR SEATBACK LOCK STRIKER PROTECTOR 72618B - - -
21 REAR SEATBACK LOCK ASSEMBLY LH 72640A - - -
22 SEPARATE TYPE REAR SEATBACK COVER 71078S (Click here) - -
23 REAR SEATBACK FRAME SUB-ASSEMBLY LH 71018 - - -
24 REAR SEAT HEADREST SUPPORT 71931A - - -
25 REAR SEATBACK BOARD SUB-ASSEMBLY LH 71702C - -
26 REAR SEATBACK LOCK UPPER BEZEL 72667B - - -
27 REAR SEAT HEADREST ASSEMBLY 71940A - - -

*A for LH Side - -
*1 SEPARATE TYPE REAR SEATBACK PAD - -
V111893

Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) - -
● Non-reusable part - -

CAUTION / NOTICE / HINT

CAUTION:
B585831

Wear protective gloves. Sharp areas on the parts may injure your hands.


PROCEDURE

Hide 71078S 1.INSTALL BENCH TYPE REAR SEAT CUSHION COVER

Z101186

NOTICE:

When installing a bench type rear seat cushion cover, refer to Precaution in order to prevent wrinkles from forming.

Click here(Click here)



Hide 73735A 2.INSTALL CHILD RESTRAINT SEAT GUIDE CUP

Hide 73731 3.INSTALL CHILD RESTRAINT SEAT TETHER ANCHOR COVER

Hide 72618A 4.INSTALL REAR SEATBACK LOCK STRIKER PROTECTOR (for RH Side)

Hide 72630C 5.INSTALL REAR SEATBACK LOCK ASSEMBLY RH (for RH Side)

Torque:
30 N*m (306 kgf*cm, 22 ft.*lbf)

Hide 7.INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY RH (for RH Side)

Hide 71077S 8.INSTALL SEPARATE TYPE REAR SEATBACK COVER (for RH Side w/ Armrest)

Z101186

NOTICE:

When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

Click here(Click here)



a.

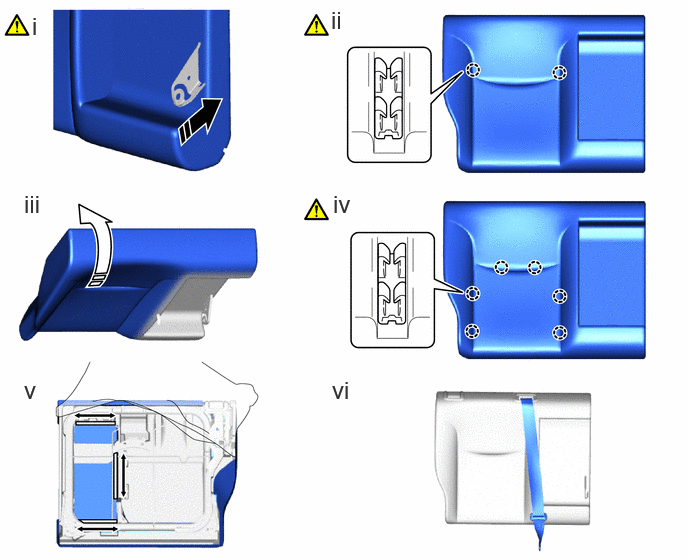

B615741C01
0.333,0.125 0.615,0.479 0.281,0.354 18 false i 3.448,0.063 3.729,0.417 0.281,0.354 18 false ii 0.25,1.979 0.531,2.333 0.281,0.354 18 false iii 3.469,1.979 3.75,2.333 0.281,0.354 18 false iv 0.25,3.917 0.531,4.271 0.281,0.354 18 false v 3.458,3.917 3.74,4.271 0.281,0.354 18 false vi
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


i.

Temporarily install the separate type rear seatback cover on the armrest hinge side as shown in the illustration.

NOTICE:

Be careful not to damage the separate type rear seatback cover.



ii.

Engage the claws.

NOTICE:

Be careful not to damage the separate type rear seatback cover.



iii.

Temporarily install the separate type rear seatback cover on the seatback lock side as shown in the illustration.


iv.

Engage the claws to install the separate type rear seatback cover to the separate type rear seatback pad.

NOTICE:

Be careful not to damage the separate type rear seatback cover.



v.

Engage the hooks.


vi.

Pass the rear center seat outer belt assembly through the hole of separate type rear seatback cover with pad.



Hide 71077S 9.INSTALL SEPARATE TYPE REAR SEAT BACK COVER (for RH Side w/o Armrest)

Z101186

NOTICE:

When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

(Click here)



a.

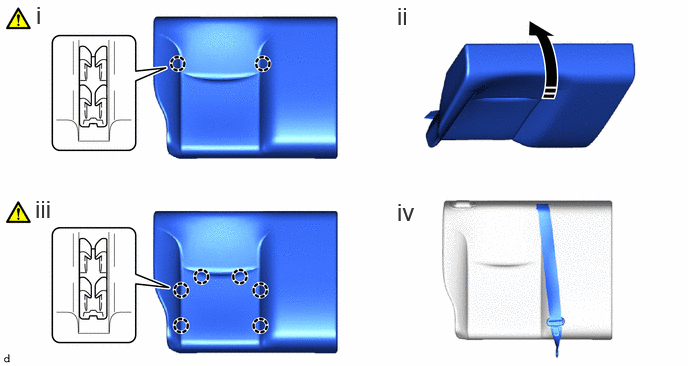

B623211N01
0.375,0.01 0.656,0.365 0.281,0.354 18 false i 0.365,2.031 0.646,2.385 0.281,0.354 18 false iii 4.135,0.021 4.417,0.375 0.281,0.354 18 false ii 4.135,2.063 4.417,2.417 0.281,0.354 18 false iv

i.

Engage the claws.

NOTICE:

Be careful not to damage the separate type rear seatback cover.



ii.

Temporarily install the separate type rear seatback cover on the seatback lock side as shown in the illustration.


iii.

Engage the claws to install the separate type rear seatback cover to the separate type rear seatback pad.

NOTICE:

Be careful not to damage the separate type rear seatback cover.



iv.

Pass the rear center seat outer belt assembly through the hole of separate type rear seatback cover with pad.



Hide 71931A 10.INSTALL REAR SEAT HEADREST SUPPORT (for RH Side)

Z101186

NOTICE:

When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

(Click here)



Hide 71701C 11.INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH (for RH Side)

Hide 72667A 12.INSTALL REAR SEATBACK LOCK UPPER BEZEL (for RH Side)

Hide 73373 13.INSTALL REAR SEAT SHOULDER BELT COVER (for RH Side)

Hide 73178A 14.INSTALL SEAT BELT ANCHOR COVER CAP (for RH Side)

Hide 72806D 15.INSTALL REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY (for RH Side w/ Armrest)

Hide 72830 16.INSTALL REAR SEAT CENTER ARMREST ASSEMBLY (for RH Side w/ Armrest)

Torque:
21 N*m (214 kgf*cm, 15 ft.*lbf)

Hide 72868B 17.INSTALL CENTER ARMREST HINGE COVER (for RH Side w/ Armrest)

Hide 71960B 18.INSTALL REAR SEAT CENTER HEADREST ASSEMBLY

Hide 71940A 19.INSTALL REAR SEAT HEADREST ASSEMBLY (for RH Side)

Hide 72618B 20.INSTALL REAR SEATBACK LOCK STRIKER PROTECTOR (for LH Side)

Hide 72640A 21.INSTALL REAR SEATBACK LOCK ASSEMBLY LH (for LH Side)

Torque:
30 N*m (306 kgf*cm, 22 ft.*lbf)

Hide 71078S 22.INSTALL SEPARATE TYPE REAR SEATBACK COVER (for LH Side)

Z101186

NOTICE:
·

When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

Click here(Click here)

·

Be careful not to damage the separate type rear seatback cover.




Hide 23.INSTALL REAR SEATBACK FRAME SUB-ASSEMBLY LH (for LH Side)

Hide 71931A 24.INSTALL REAR SEAT HEADREST SUPPORT (for LH Side)

Z101186

NOTICE:

When installing a separate type rear seatback cover, refer to Precaution in order to prevent wrinkles from forming.

Click here(Click here)



Hide 71702C 25.INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY LH (for LH Side)

Hide 72667B 26.INSTALL REAR SEATBACK LOCK UPPER BEZEL (for LH Side)

Hide 71940A 27.INSTALL REAR SEAT HEADREST ASSEMBLY (for LH Side)
