RM38T0EC _57 Power Source / Network _145000 M20F-FXS, M20G-FXS BATTERY / CHARGING _0605077 CHARGING SYSTEM U

M20F-FXS, M20G-FXS BATTERY / CHARGING CHARGING SYSTEM TERMINALS OF ECU

4.49,0.198 4.969,0.531 0.479,0.333 2.313,0.198 2.792,0.531 0.479,0.333 4.594,0.271 5.052,0.469 0.458,0.198 10 false I278 2.385,0.281 2.844,0.479 0.458,0.198 10 false A197 0.219,0.146 0.531,0.344 0.313,0.198 10 false *a

Hybrid Vehicle Control ECU

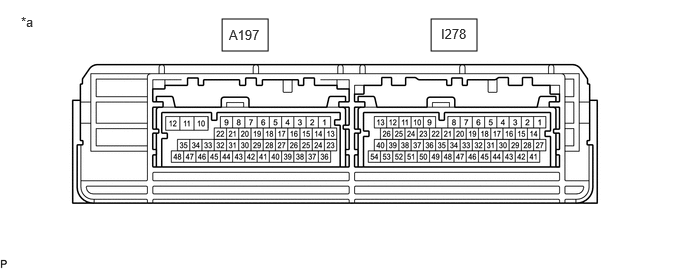

HINT:: The standard normal voltage between each pair of hybrid vehicle control ECU terminals is shown in the table below. The appropriate conditions for checking each pair of terminals are also indicated. The result of checks should be compared with the standard normal voltage for that pair of terminals, displayed in the Specified Condition column. The illustration above can be used as a reference to identify the hybrid vehicle control ECU terminal locations.

Hybrid Vehicle Control ECU
Terminal No. (Symbol)	Terminal Description	Condition	Specified Condition
A197-1 (HMCL) - I278-1 (E1)	CAN communication signal	Ignition switch ON	Pulse generation (Waveform 1)
A197-2 (HMCH) - I278-1 (E1)	CAN communication signal	Ignition switch ON	Pulse generation (Waveform 1)
A197-16 (LIN3) - I278-1 (E1)	LIN communication signal	Ignition switch ON (READY)	Pulse generation
I278-10 (MREL) - I278-1 (E1)	IGCT-MAIN NO. 1 relay	Ignition switch ON	11 to 14 V

Oscilloscope waveforms

HINT:: Oscilloscope waveform samples are provided here for informational purposes. Noise and fluttering waveforms have been omitted.

2.969,1.198 3.427,1.396 0.458,0.198 10 GND 2.969,1.573 3.427,1.771 0.458,0.198 10 GND 0.396,0.646 0.854,0.844 0.458,0.198 10 CH1 0.396,1.229 0.854,1.427 0.458,0.198 10 CH2

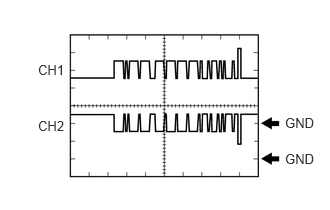

Waveform 1 (CAN communication signal)

Item	Content
Terminal	CH1: A197-2 (HMCH) - I278-1 (E1) CH2: A197-1 (HMCL) - I278-1 (E1)
Equipment Setting	1 V/DIV., 50 μs./DIV.
Condition	Ignition switch ON

HINT:: The waveform will vary depending on the content of the digital communication (digital signal).
