M20F-FXS, M20G-FXS ENGINE CONTROL  SFI SYSTEM  P24522A  Particulate Filter Pressure Sensor "A" Signal Stuck In Range


DESCRIPTION

Refer to DTC P244B00.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>P244B00

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note
P24522A Particulate Filter Pressure Sensor "A" Signal Stuck In Range When ignition switch ON the differential pressure sensor output learning value at atmospheric pressure is above or below the specified value for 1 second or more (1 trip detection logic).
·

Open or short in differential pressure sensor circuit

·

Differential pressure sensor

·

Vacuum transmitting hose assembly

·

No. 1 vacuum pipe


Does not come on SAE Code: P2453

MONITOR DESCRIPTION

The differential pressure sensor output learning value is updated when ignition switch off after completely engine warmed up drive cycle. The sensor output should show its neutral (zero) value at the condition. The sensor output stuck in range is judged when the learning value is below or above the specified value at ignition switch ON after the learning value updated.

MONITOR STRATEGY

Frequency of Operation Continuous

CONFIRMATION DRIVING PATTERN

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON.

7.

Turn the GTS on.

9.

Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher.

10.

Idle the engine for 1 minute or more.

11.

Turn the ignition switch off and wait for at least 30 seconds.

12.

Turn the ignition switch to ON.

13.

Turn the GTS on.

14.

Enter the following menus: Powertrain / Engine / Trouble Codes.

15.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



16.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

17.

Input the DTC: P24522A.

18.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system has a malfunction.




CAUTION / NOTICE / HINT

NOTICE:
·

Vehicle Control History may be stored in the hybrid vehicle control ECU if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the freeze frame data and Vehicle Control History can be useful for troubleshooting.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)

(Select Powertrain in Health Check and then check the time stamp data.)

·

If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)



HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P24522A)
a.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372

Result:
Result Proceed to
DTC P24522A and other DTCs are output A
DTC P24522A is output B


HINT:

If any DTCs other than P24522A are output, troubleshoot those DTCs first.



A

GO TO DTC CHART

B

2.CHECK FOR EXHAUST GAS LEAK
2.CHECK FOR EXHAUST GAS LEAK
a.

Check for exhaust gas leaks.

OK:

No gas leaks in exhaust system.


HINT:

Perform "Inspection After Repair" after repairing or replacing the exhaust system.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION



Result:
Proceed to
OK
NG



OK

3.CHECK CONNECTION OF VACUUM TRANSMITTING HOSE ASSEMBLY (DIFFERENTIAL PRESSURE SENSOR - NO. 1 PIPE)

NG

REPAIR OR REPLACE EXHAUST SYSTEM

3.CHECK CONNECTION OF VACUUM TRANSMITTING HOSE ASSEMBLY (DIFFERENTIAL PRESSURE SENSOR - NO. 1 PIPE)
A529039C01
1.271,1.125 0.667,0.25 0.667,0.25 0.5,0.25 true 1.583,1.74 1.083,2.5 1.083,2.5 0.917,2.5 true 3.74,1.781 3.333,0.917 3.333,0.917 3.167,0.917 true 3.75,2.604 3.167,2 3.167,2 3,2 true 3.271,3.333 3,3 3,3 2.833,3 true 0.323,0.177 0.635,0.333 0.313,0.156 10 false *1 0.719,2.417 1.01,2.615 0.292,0.198 10 false *2 2.625,2.917 2.938,3.073 0.313,0.156 10 false *3 2.802,1.917 3.115,2.073 0.313,0.156 10 false *2 2.99,0.833 3.302,0.99 0.313,0.156 10 false *1
*1 Differential Pressure Sensor *2 Vacuum Transmitting Hose Assembly
*3 No. 1 Pipe - -


a.

Check the vacuum transmitting hose assembly is no exhaust gas leak between the differential pressure sensor and the No. 1 pipe.

OK:

The vacuum transmitting hose assembly is no exhaust gas leak.



Result:
Proceed to
OK
NG



OK

4.CHECK BLOCKAGE OF VACUUM TRANSMITTING HOSE ASSEMBLY AND NO. 1 PIPE

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS

4.CHECK BLOCKAGE OF VACUUM TRANSMITTING HOSE ASSEMBLY AND NO. 1 PIPE
CAUTION:

Be careful of being burned by exhaust gases during the following inspection.

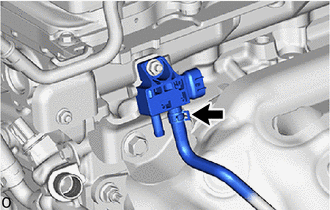

A529040
1.833,0.792 2.25,0.333 true 1.833,1.479 1.417,1.917 true 2.25,0.135 2.563,0.333 0.313,0.198 10 true *1 1.104,1.917 1.417,2.115 0.313,0.198 10 true *2
*1 Differential Pressure Sensor
*2 Vacuum Transmitting Hose Assembly


a.

Disconnect vacuum transmitting hose assembly on the differential pressure sensor.


b.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

c.

Start the engine.


d.

Check if there are exhaust gas pulsations from vacuum transmitting hose assembly during idling.


Result:
Proceed to
OK
NG



OK

5.INSPECT DIFFERENTIAL PRESSURE SENSOR

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS

5.INSPECT DIFFERENTIAL PRESSURE SENSOR

OK

6.CLEAR DTC

NG

8.CHECK HARNESS AND CONNECTOR (DIFFERENTIAL PRESSURE SENSOR - ECM)
6.CLEAR DTC
a.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

Result:
Proceed to
NEXT


b.

Turn the ignition switch off and wait for at least 30 seconds.



NEXT

7.CHECK WHETHER DTC OUTPUT RECURS (DTC P24522A)
7.CHECK WHETHER DTC OUTPUT RECURS (DTC P24522A)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Read the Pending DTCs.

Powertrain > Engine > Trouble Codes
50001 372
OK:

DTCs are not output



Result:
Proceed to
NEXT



NEXT

END

8.CHECK HARNESS AND CONNECTOR (DIFFERENTIAL PRESSURE SENSOR - ECM)
a.

Disconnect the differential pressure sensor connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
C140-3 (VC) - C141-69 (VCPX) Always Below 1 Ω
C140-2 (PEX) - C141-92 (PEX) Always Below 1 Ω
C140-1 (E2) - C141-68 (EPEX) Always Below 1 Ω
C140-3 (VC) or C141-69 (VCPX) - Body ground and other terminals Always 10 kΩ or higher
C140-2 (PEX) or C141-92 (PEX) - Body ground and other terminals Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

9.REPLACE DIFFERENTIAL PRESSURE SENSOR

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

9.REPLACE DIFFERENTIAL PRESSURE SENSOR

b.

Put the engine in Inspection Mode (Maintenance Mode).

Powertrain > Hybrid Control > Utility
Tester Display
Inspection Mode
50005 397 2103

c.

Start the engine and allow it to idle until the engine coolant temperature reaches 75°C (167°F) or higher.

Powertrain > Engine > Data List
Tester Display
Coolant Temperature
50003 372 205

d.

Idle the engine for 7 minutes.


e.

Run the engine at an engine speed of 2500 rpm for 2 minutes.


f.

Turn the ignition switch off and wait for 30 seconds or more.


Result:
Proceed to
NEXT



NEXT

END
