M20F-FXS, M20G-FXS ENGINE CONTROL SFI SYSTEM P261029 ECM/PCM Engine Off Timer Performance Signal Invalid P261093 ECM/PCM Engine Off Timer Performance No Operation
DTC SUMMARY
| DTC No. | Detection Item | DTC Detection Condition | Trouble Area | MIL | Note |
|---|---|---|---|---|---|
| P261029 | ECM/PCM Engine Off Timer Performance Signal Invalid | ECM internal malfunction | ECM | Comes on | SAE Code: P2610 |
| P261093 | ECM/PCM Engine Off Timer Performance No Operation | ECM internal malfunction | ECM | Comes on | SAE Code: P2610 |
| DTC No. | Monitoring Item | Detection Timing | Detection Logic |
|---|---|---|---|
| P261029 | Soak timer (built into ECM) | EVAP monitoring
(ignition switch off) |
2 trip |
| P261093 | Soak timer (built into ECM) | Ignition switch ON | 2 trip |

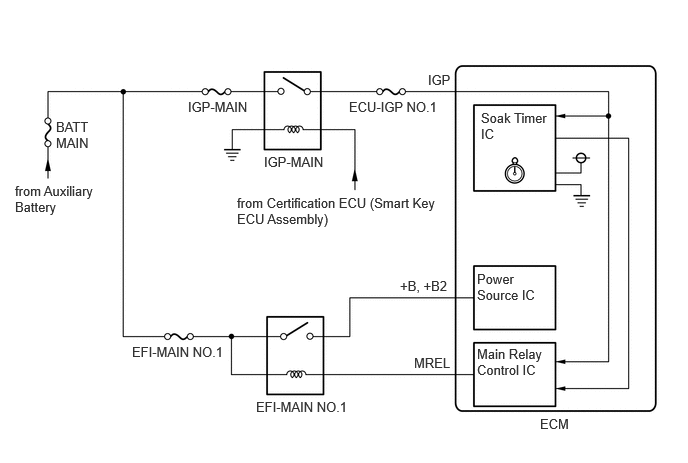

DESCRIPTION
The soak timer operates after the ignition switch is turned off. When a certain amount of time has elapsed after turning the ignition switch off, the soak timer activates the ECM to perform malfunction checks which can only be performed after the engine is stopped. The soak timer is built into the ECM.
MONITOR DESCRIPTION
If the soak timer activates the ECM even though only a short amount of time has elapsed since the ignition switch was off, or if the soak timer does not activate the ECM even though a considerable amount of time has elapsed since the ignition switch was off, the ECM determines that the soak timer is malfunctioning, illuminates the MIL and stores a DTC the next time the ignition switch is to ON.
MONITOR STRATEGY
| Required Sensors/Components | ECM |
| Frequency of Operation | Once per driving cycle |
CONFIRMATION DRIVING PATTERN
- HINT:
- ·
After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.
·When clearing the permanent DTCs, refer to the "CLEAR PERMANENT DTC" procedure.
Connect the GTS to the DLC3.
Turn the ignition switch to ON.
Turn the GTS on.
Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
Turn the ignition switch off and wait for at least 30 seconds.
Turn the ignition switch to ON.
Turn the GTS on.
Put the engine in Inspection Mode (Maintenance Mode).
Start the engine and warm it up until the engine coolant temperature reaches 75°C (167°F) or higher [A].
Turn the ignition switch off and wait for at least 15 seconds [B].
Turn the ignition switch to ON.
Turn the GTS on.
Put the engine in Inspection Mode (Maintenance Mode).
Start the engine [C].
Stop the engine and leave the vehicle for 60 minutes or more [D].
Turn the ignition switch to ON.
Turn the GTS on.
Enter the following menus: Powertrain / Engine / Trouble Codes [E].
Read the pending DTCs.
- HINT:
- ·
If a pending DTC is output, the system is malfunctioning.
·If a pending DTC is not output, perform the following procedure.
Enter the following menus: Powertrain / Engine / Utility / All Readiness.
Input the DTC: P261029 or P261093.
Check the DTC judgment result.
| GTS Display | Description |
|---|---|
| NORMAL | ·
DTC judgment completed ·
System normal |
| ABNORMAL | ·
DTC judgment completed ·
System abnormal |
| INCOMPLETE | ·
DTC judgment not completed ·
Perform driving pattern after confirming DTC enabling conditions |
- HINT:
- ·
If the judgment result is NORMAL, the system is normal.
·If the judgment result is ABNORMAL, the system has a malfunction.
·[A] to [E]: Normal judgment procedure.
The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.
·When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.
CAUTION / NOTICE / HINT
- NOTICE:
- ·
Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.
(Select Powertrain in Health Check and then check the time stamp data.)
·If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.
- HINT:
- ·
DTC P261029 or P261093 is set if an internal ECM problem is detected. Diagnostic procedures are not required. ECM replacement is required.
·Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.
PROCEDURE
- Result:
Proceed to NEXT
NEXT
Clear the DTCs.
- Powertrain > Engine > Clear DTCs
- 50002 372
Turn the ignition switch off and wait for at least 30 seconds.
- Result:
Proceed to NEXT
NEXT
Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
Read the Pending DTCs.
- Powertrain > Engine > Trouble Codes
- 50001 372
- HINT:
-
If no pending DTC is output, the repair has been successfully completed.
- Result:
Proceed to NEXT
NEXT
