M20F-FXS, M20G-FXS ENGINE CONTROL  SFI SYSTEM  P142000  Evaporative Emission Canister (Small Leak)  P142100  Evaporative Emission Canister (Gross Leak)


DTC SUMMARY

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note
P142000 Evaporative Emission Canister (Small Leak) Leak detection pump creates negative pressure (vacuum) in EVAP system and EVAP system pressure is measured. Reference pressure is measured at the start and at the end of leak check. If stabilized pressure is higher than second reference pressure, ECM determines that EVAP system has a small leak.
·

EVAP leak (purge VSV - canister - fuel vapor-containment valve)

·

Purge VSV

·

Connector/wire harness (purge VSV - ECM)

·

Canister pump module

·

ECM


Comes on SAE Code: P1420
P142100 Evaporative Emission Canister (Gross Leak) Leak detection pump creates negative pressure (vacuum) in EVAP system and EVAP system pressure is measured. Reference pressure is measured at the start and at the end of leak check. If stabilized pressure is higher than [second reference pressure x 0.2], ECM determines that EVAP system has a large leak.
·

EVAP leak (purge VSV - canister - fuel vapor-containment valve)

·

Purge VSV

·

Connector/wire harness (purge VSV - ECM)

·

Canister pump module

·

ECM


Comes on SAE Code: P1421

DTC No. Monitoring Item Detection Timing Detection Logic SAE Code
P142000 Canister small leak EVAP monitoring
(Ignition switch off)
2 trip P1420
P142100 Canister gross leak P1421

MONITOR DESCRIPTION

1.

P142000: EVAP (evaporative emission) small leak

In operation C, the leak detection pump creates negative pressure (vacuum) in the EVAP system and the EVAP system pressure is measured. If the stabilized system pressure is higher than the second reference pressure, the ECM determines that the EVAP system has a small leak, illuminates the MIL and stores the DTC (2 trip detection logic).

2.

P142100: EVAP gross leak

In operation C, the leak detection pump creates negative pressure (vacuum) in the EVAP system and the EVAP system pressure is measured. If the stabilized system pressure is higher than [second reference pressure x 0.2] (near atmospheric pressure), the ECM determines that the EVAP system has a large leak, illuminates the MIL and stores the DTC (2 trip detection logic).

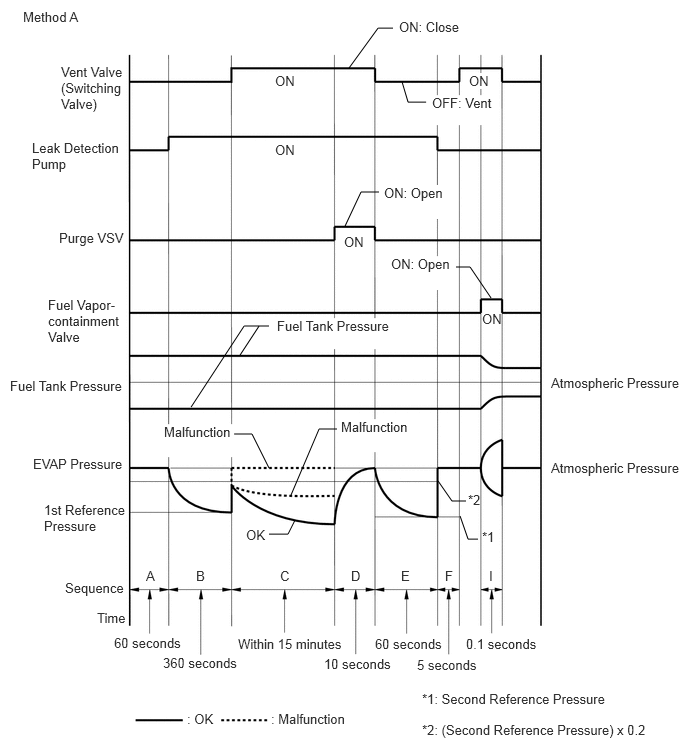

A319538E01
2.802,5.563 3,5.563 3,5.563 3.073,5.417 false 4.792,5.375 4.875,5.615 4.875,5.615 4.979,5.615 false 4.563,5.01 4.708,5.219 4.708,5.219 4.854,5.219 false 3.51,4.469 3.323,4.469 3.323,4.469 3.031,5.156 false 2.438,4.521 2.625,4.521 2.625,4.521 2.802,4.875 false 2.802,3.396 2.542,3.396 2.542,3.396 1.99,4.24 false 2.5,3.698 2.698,3.396 false 4.75,2.781 4.896,2.781 4.896,2.781 5.115,3.104 false 3.948,2 3.76,2 3.76,2 3.594,2.354 false 4.438,1.063 4.25,1.063 4.25,1.063 4.188,0.854 false 4.094,0.292 3.938,0.292 3.938,0.292 3.635,0.708 false 0.24,0.094 1.125,0.417 0.885,0.323 10 false Method A 0.635,0.667 1.323,1.25 0.688,0.583 10 false Vent Valve (Switching Valve) 0.333,1.458 1.271,2.021 0.938,0.563 10 false Leak Detection Pump 0.615,2.396 1.396,2.76 0.781,0.365 10 false Purge VSV 0.5,3.094 1.26,3.646 0.76,0.552 10 false Fuel Vapor-containment Valve 0.104,3.938 2.063,4.281 1.958,0.344 10 false Fuel Tank Pressure 0.344,4.75 1.427,5.156 1.083,0.406 10 false EVAP Pressure 0.458,5.229 1.323,5.708 0.865,0.479 10 false 1st Reference Pressure 0.677,6.042 1.76,6.448 1.083,0.406 10 false Sequence 1.01,6.354 2.094,6.76 1.083,0.406 10 false Time 1.188,6.615 2.271,7.021 1.083,0.406 10 false 60 seconds 1.698,6.823 2.781,7.229 1.083,0.406 10 false 360 seconds 2.479,6.625 3.958,6.875 1.479,0.25 10 false Within 15 minutes 3.375,6.833 4.198,7.125 0.823,0.292 10 false 10 seconds 3.906,6.625 4.729,6.917 0.823,0.292 10 false 60 seconds 4.344,6.844 5.167,7.135 0.823,0.292 10 false 5 seconds 4.854,6.625 5.677,6.917 0.823,0.292 10 false 0.1 seconds 5.74,4.792 7.135,5.063 1.396,0.271 10 false Atmospheric Pressure 5.74,3.906 7.135,4.177 1.396,0.271 10 false Atmospheric Pressure 2.563,5.49 2.844,5.708 0.281,0.219 10 false OK 5.021,5.51 5.313,5.76 0.292,0.25 10 false *1 4.875,5.125 5.167,5.375 0.292,0.25 10 false *2 3.552,4.365 4.271,4.708 0.719,0.344 10 true Malfunction 1.708,4.417 2.427,4.76 0.719,0.344 10 true Malfunction 2.885,3.313 4.094,3.635 1.208,0.323 10 true Fuel Tank Pressure 4.073,2.667 4.698,3.021 0.625,0.354 10 true ON: Open 4,1.927 4.625,2.281 0.625,0.354 10 true ON: Open 2.865,0.76 3.094,1.01 0.229,0.25 10 true ON 2.865,1.479 3.094,1.729 0.229,0.25 10 true ON 4.156,0.198 4.813,0.51 0.656,0.313 10 true ON: Close 4.5,0.99 5.177,1.302 0.677,0.313 10 true OFF: Vent 4.885,0.76 5.125,0.927 0.24,0.167 10 true ON 1.948,7.406 2.458,7.604 0.51,0.198 10 false : OK 2.823,7.406 3.969,7.635 1.146,0.229 10 false : Malfunction 4.396,7.198 6.469,7.458 2.073,0.26 10 false *1: Second Reference Pressure 4.396,7.521 6.885,7.781 2.49,0.26 10 false *2: (Second Reference Pressure) x 0.2 1.521,5.917 1.74,6.188 0.219,0.271 10 false A 2.042,5.917 2.26,6.188 0.219,0.271 10 false B 2.917,5.917 3.135,6.188 0.219,0.271 10 false C 3.656,5.917 3.875,6.188 0.219,0.271 10 false D 4.177,5.917 4.396,6.188 0.219,0.271 10 false E 4.635,5.917 4.854,6.188 0.219,0.271 10 false F 5.094,5.917 5.313,6.188 0.219,0.271 10 false I 3.583,2.438 3.813,2.688 0.229,0.25 10 true ON 5.021,3.24 5.25,3.49 0.229,0.25 10 false ON

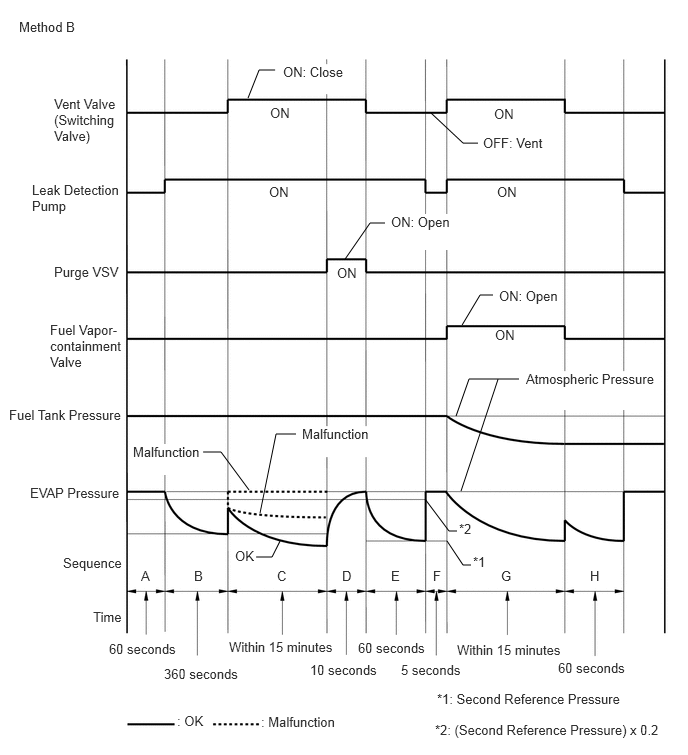

A319539E01
2.583,1.021 2.698,0.729 2.698,0.729 2.865,0.729 false 4.49,1.177 4.823,1.49 4.823,1.49 4.979,1.49 false 3.594,2.698 3.854,2.323 3.854,2.323 4.01,2.323 false 4.813,3.385 5,3.073 5,3.073 5.135,3.073 false 4.75,4.333 4.885,3.948 4.885,3.948 5.406,3.948 false 4.802,5.115 5.188,3.948 false 2.708,5.344 2.875,4.521 2.875,4.521 3.083,4.521 false 2.594,5.104 2.302,4.708 2.302,4.708 2.115,4.708 false 2.917,5.635 2.833,5.802 2.833,5.802 2.667,5.802 false 4.76,5.531 4.677,5.531 4.677,5.531 4.427,5.198 false 4.906,5.885 4.823,5.885 4.823,5.885 4.656,5.635 false 0.198,0.198 0.875,0.49 0.677,0.292 10 false Method B 0.563,1 1.271,1.615 0.708,0.615 10 false Vent Valve (Switching Valve) 0.333,1.896 1.302,2.344 0.969,0.448 10 false Leak Detection Pump 0.563,2.75 1.531,3.198 0.969,0.448 10 false Purge VSV 0.521,3.354 1.302,3.958 0.781,0.604 10 false Fuel Vapor-containment Valve 0.094,4.24 1.354,4.635 1.26,0.396 10 false Fuel Tank Pressure 0.313,5.052 1.313,5.427 1,0.375 10 false EVAP Pressure 0.656,5.781 1.333,6.115 0.677,0.333 10 false Sequence 0.969,6.344 1.375,6.594 0.406,0.25 10 false Time 1.135,6.677 2.063,6.906 0.927,0.229 10 false 60 seconds 1.708,6.938 2.635,7.167 0.927,0.229 10 false 360 seconds 2.385,6.656 3.594,6.896 1.208,0.24 10 false Within 15 minutes 3.229,6.896 4.083,7.146 0.854,0.25 10 false 10 seconds 3.729,6.667 4.583,6.917 0.854,0.25 10 false 60 seconds 4.76,6.688 5.979,6.938 1.219,0.25 10 false Within 15 minutes 5.813,6.875 6.594,7.125 0.781,0.25 10 false 60 seconds 1.844,7.427 2.25,7.656 0.406,0.229 10 false : OK 2.719,7.438 3.635,7.667 0.917,0.229 10 false : Malfunction 4.552,7.198 6.656,7.406 2.104,0.208 10 false *1: Second Reference Pressure 4.531,7.521 6.979,7.75 2.448,0.229 10 false *2: (Second Reference Pressure) x 0.2 1.469,5.917 1.719,6.135 0.25,0.219 10 false A 2.021,5.917 2.271,6.135 0.25,0.219 10 false B 2.885,5.917 3.135,6.135 0.25,0.219 10 false C 3.563,5.917 3.781,6.146 0.219,0.229 10 false D 4.073,5.917 4.292,6.146 0.219,0.229 10 false E 4.51,5.917 4.729,6.146 0.219,0.229 10 false F 5.219,5.917 5.438,6.146 0.219,0.229 10 false G 6.146,5.917 6.365,6.146 0.219,0.229 10 false H 2.448,5.708 2.698,5.927 0.25,0.219 10 false OK 4.927,5.771 5.177,5.99 0.25,0.219 10 false *1 4.781,5.427 5.031,5.646 0.25,0.219 10 false *2 3.146,4.438 3.865,4.76 0.719,0.323 10 true Malfunction 1.385,4.625 2.104,4.948 0.719,0.323 10 true Malfunction 5.479,3.865 6.865,4.271 1.385,0.406 10 true Atmospheric Pressure 4.073,2.229 4.698,2.604 0.625,0.375 10 true ON: Open 5.198,3 5.844,3.323 0.646,0.323 10 true ON: Open 5.156,3.406 5.427,3.646 0.271,0.24 10 false ON 3.51,2.76 3.781,3 0.271,0.24 10 true ON 5.177,1.917 5.448,2.156 0.271,0.24 10 true ON 5.146,1.104 5.417,1.344 0.271,0.24 10 true ON 2.802,1.917 3.073,2.156 0.271,0.24 10 true ON 2.813,1.094 3.083,1.333 0.271,0.24 10 true ON 2.948,0.667 3.667,0.979 0.719,0.313 10 true ON: Close 5.031,1.406 5.75,1.75 0.719,0.344 10 true OFF: Vent 4.177,6.896 5.031,7.146 0.854,0.25 10 false 5 seconds

MONITOR STRATEGY

Required Sensors/Components Purge VSV
Canister pump module
Frequency of Operation Once per driving cycle

CONFIRMATION DRIVING PATTERN

NOTICE:
·

The Evaporative System Check (Automatic Mode) consists of 9 steps performed automatically by the GTS. It takes a maximum of approximately 40 minutes.

·

Do not perform the Evaporative System Check when the fuel tank is higher than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.

·

Do not start the engine during this operation.

·

When the temperature of the fuel is 35°C (95°F) or higher, a large amount of vapor will from and any check result will be inaccurate. When performing the Evaporative System Check, keep the fuel temperature less than 35°C (95°F).



HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Enter the following menus: Powertrain / Engine / Utility / Evaporative System Check / Automatic Mode [B].

9.

After the "Evaporative System Check" is completed, check for All Readiness by entering the following menus: Powertrain / Engine / Utility / All Readiness.

10.

Input the DTC: P142000 or P142100.

11.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

[A] to [B]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




CAUTION / NOTICE / HINT

NOTICE:
·

Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)

(Select Powertrain in Health Check and then check the time stamp data.)

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)



PROCEDURE

1.GO TO EVAP SYSTEM

NEXT

END
