M20F-FXS, M20G-FXS ENGINE CONTROL  SFI SYSTEM  P056014  System Voltage Circuit Short to Ground or Open


MONITOR DESCRIPTION

The auxiliary battery supplies electricity to the ECM even when the ignition switch is off. This power allows the ECM to store data such as DTC history, Freeze Frame Data and fuel trim values. If the auxiliary battery voltage falls below a minimum level, the memory is cleared and the ECM determines that there is a malfunction in the power supply circuit. The ECM will illuminate the MIL and store this DTC.

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note
P056014 System Voltage Circuit Short to Ground or Open An open or short in the ECM backup power source circuit (1 trip detection logic).
·

Open or short in back up power source circuit

·

Auxiliary battery

·

Auxiliary battery terminals

·

ECM


Comes on SAE Code: P0562

MONITOR STRATEGY

Required Sensors/Components ECM
Frequency of Operation Continuous

TYPICAL MALFUNCTION THRESHOLDS

Continuous auxiliary battery voltage Less than 3.5 V

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON.

7.

Turn the GTS on.

8.

Wait 5 seconds or more [A].

9.

Enter the following menus: Powertrain / Engine / Trouble Codes [B].

10.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



11.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

12.

Input the DTC: P056014.

13.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

[A] to [B]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

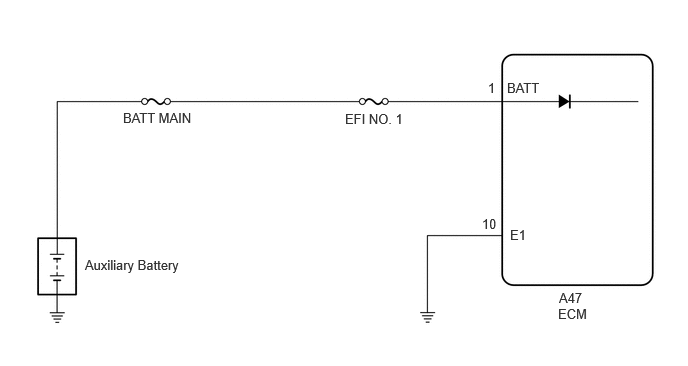

WIRING DIAGRAM

A404866E98
0.885,2.677 1.958,2.875 1.073,0.198 10 false Auxiliary Battery 1.281,1.146 2.354,1.344 1.073,0.198 10 false BATT MAIN 3.594,1.156 4.667,1.354 1.073,0.198 10 false EFI NO. 1 5.281,0.833 6.354,1.031 1.073,0.198 10 false BATT 5.083,0.833 5.333,1.083 0.25,0.25 10 false 1 5.021,2.25 5.271,2.5 0.25,0.25 10 false 10 5.313,2.365 5.563,2.615 0.25,0.25 10 false E1 5.823,3.021 6.156,3.313 0.333,0.292 10 false A47 5.813,3.188 6.25,3.438 0.438,0.25 10 false ECM

CAUTION / NOTICE / HINT

NOTICE:
·

Inspect the fuses for circuits related to this system before performing the following procedure.

·

After turning ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.

Click hereGeneral>INTRODUCTION>REPAIR INSTRUCTION>PRECAUTION

·

Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)

(Select Powertrain in Health Check and then check the time stamp data.)

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)



HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.INSPECT AUXILIARY BATTERY

OK

2.CHECK AUXILIARY BATTERY TERMINAL

NG

CHARGE OR REPLACE AUXILIARY BATTERY

2.CHECK AUXILIARY BATTERY TERMINAL
a.

Check that the auxiliary battery terminals are not loose or corroded.

Click herePower Source / Network>M20F-FXS, M20G-FXS (BATTERY / CHARGING)>CHARGING SYSTEM>ON-VEHICLE INSPECTION

OK:

Auxiliary battery terminals are not loose or corroded.



Result:
Proceed to
OK
NG



OK

3.CHECK TERMINAL VOLTAGE (POWER SOURCE OF ECM)

NG

REPAIR OR REPLACE AUXILIARY BATTERY TERMINAL

3.CHECK TERMINAL VOLTAGE (POWER SOURCE OF ECM)

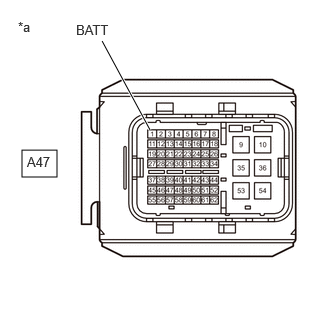

A422250C18
0.229,1.563 0.594,1.844 0.365,0.281 1.563,1.354 1.063,0.427 true 0.188,0.198 0.448,0.417 0.26,0.219 10 false *a 0.281,1.604 0.74,1.802 0.458,0.198 10 false A47 0.792,0.229 1.25,0.427 0.458,0.198 10 false BATT
*a Front view of wire harness connector
(to ECM)


a.

Disconnect the ECM connector.


b.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
A47-1 (BATT) - Body ground Always 11 to 16 V



Result:
Proceed to
OK
NG



OK

4.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR (AUXILIARY BATTERY - ECM)

4.CLEAR DTC
a.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

b.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

5.CHECK WHETHER DTC OUTPUT RECURS (DTC P056014)
5.CHECK WHETHER DTC OUTPUT RECURS (DTC P056014)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTCs are not output A
DTC P056014 is output B




A

B
