RM38T0EC _51 Engine / Hybrid System _144956 M20F-FXS, M20G-FXS ENGINE CONTROL _0604911 SFI SYSTEM C

M20F-FXS, M20G-FXS ENGINE CONTROL  SFI SYSTEM  P043E00  Evaporative Emission System Leak Detection Reference Orifice Low Flow  P043F00  Evaporative Emission System Leak Detection Reference Orifice High Flow  P044672  EVAP System Vent Valve Stuck Open Actuator Stuck Open  P24007E  Evaporative Emission System Leak Detection Pump Control Circuit Actuator Stuck On  P24007F  Evaporative Emission System Leak Detection Pump Control Circuit Actuator Stuck Off


DTC SUMMARY

DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note
P043E00 Evaporative Emission System Leak Detection Reference Orifice Low Flow Reference orifice detected as clogged during key-off EVAP monitor.
·

Canister pump module

·

Connector/wire harness (Canister pump module - ECM)

·

EVAP system hose (pipe from air inlet port to canister pump module, canister filter, fuel tank vent hose)

·

ECM


Comes on SAE Code: P043E
P043F00 Evaporative Emission System Leak Detection Reference Orifice High Flow Reference orifice flow high during key-off EVAP monitor.
·

Canister pump module

·

Connector/wire harness (Canister pump module - ECM)

·

EVAP system hose (pipe from air inlet port to canister pump module, canister filter, fuel tank vent hose)

·

ECM


Comes on SAE Code: P043F
P044672 EVAP System Vent Valve Stuck Open Actuator Stuck Open Vent valve on (closed) malfunction detected during key-off EVAP monitor.
·

Canister pump module

·

Connector/wire harness (Canister pump module - ECM)

·

EVAP system hose (pipe from air inlet port to canister pump module, canister filter, fuel tank vent hose)

·

ECM


Comes on SAE Code: P2421
P24007E Evaporative Emission System Leak Detection Pump Control Circuit Actuator Stuck On Leak detection pump on malfunction detected during key-off EVAP monitor.
·

Canister pump module

·

Connector/wire harness (Canister pump module - ECM)

·

EVAP system hose (pipe from air inlet port to canister pump module, canister filter, fuel tank vent hose)

·

ECM


Comes on SAE Code: P2402
P24007F Evaporative Emission System Leak Detection Pump Control Circuit Actuator Stuck Off Leak detection pump off malfunction detected during key-off EVAP monitor.
·

Canister pump module

·

Connector/wire harness (Canister pump module - ECM)

·

EVAP system hose (pipe from air inlet port to canister pump module, canister filter, fuel tank vent hose)

·

ECM


Comes on SAE Code: P2401

HINT:

The reference orifice is located inside the canister pump module.


DTC No. Monitoring Item Detection Timing Detection Logic SAE Code
P043E00 Reference orifice clogged EVAP monitoring
(Ignition switch off)
2 trip P043E
P043F00 Reference orifice high-flow P043F
P044672 Vent valve (built into canister pump module) stuck open P2421
P24007E Leak detection pump stuck ON P2402
P24007F Leak detection pump stuck OFF P2401

MONITOR DESCRIPTION

In sequence B and E, the leak detection pump creates negative pressure (vacuum) through the reference orifice. The EVAP system pressure is then measured by the ECM, using the canister pressure sensor, to determine the reference pressure. If the pressure detected meets one of the following conditions, the ECM will illuminated the MIL and store a DTC (2 trip detection logic).

·

EVAP pressure is lower than the malfunction criterion.

·

EVAP pressure is higher than the malfunction criterion.

·

EVAP pressure is not saturated within 60 seconds.

·

EVAP pressure difference between sequence B and E is large.

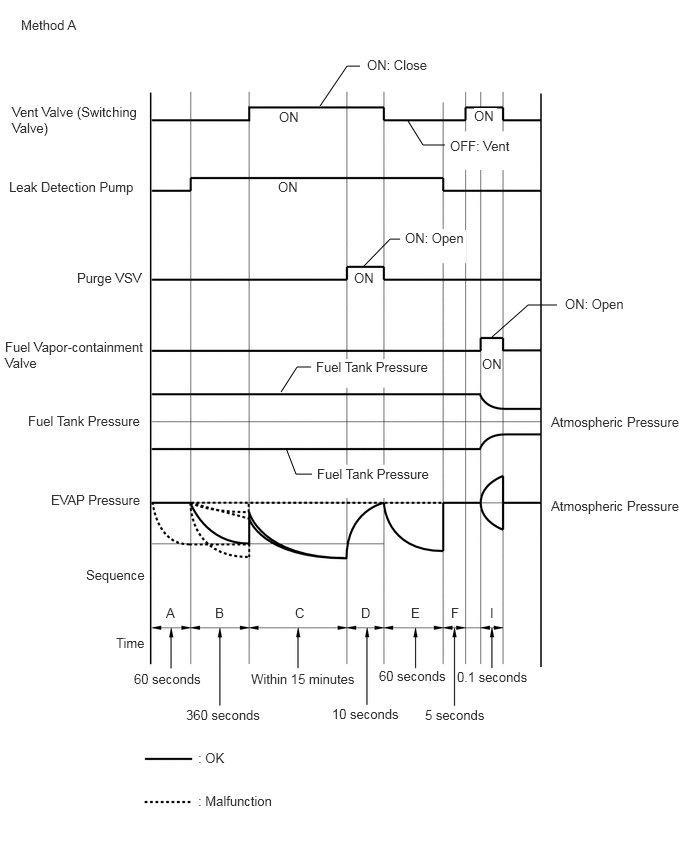

A318770E01
3.333,1.104 3.615,0.688 3.615,0.688 3.75,0.688 false 4.25,1.26 4.406,1.51 4.406,1.51 4.635,1.51 false 3.781,2.781 4.063,2.49 4.063,2.49 4.167,2.49 false 2.927,4.083 3.094,3.823 3.094,3.823 3.24,3.823 false 2.979,4.667 3.083,4.938 3.083,4.938 3.25,4.938 false 5.125,3.51 5.5,3.177 5.5,3.177 5.802,3.177 false 0.219,0.177 1.448,0.375 1.229,0.198 10 false Method A 0.125,1.083 1.479,1.635 1.354,0.552 10 false Vent Valve (Switching Valve) 0.094,1.865 1.51,2.188 1.417,0.323 10 false Leak Detection Pump 0.802,2.813 1.76,3.292 0.958,0.479 10 false Purge VSV 0.052,3.531 1.542,4.167 1.49,0.635 10 false Fuel Vapor-containment Valve 0.292,4.302 1.563,4.646 1.271,0.344 10 false Fuel Tank Pressure 0.531,5.125 1.521,5.688 0.99,0.563 10 false EVAP Pressure 0.896,5.906 1.667,6.083 0.771,0.177 10 false Sequence 1.208,6.615 2.198,7.177 0.99,0.563 10 false Time 1.729,6.302 2.719,6.865 0.99,0.563 10 false A 2.24,6.302 3.229,6.865 0.99,0.563 10 false B 3.073,6.302 4.063,6.865 0.99,0.563 10 false C 3.76,6.302 4.25,6.719 0.49,0.417 10 false D 4.281,6.302 5.25,6.875 0.969,0.573 10 false E 4.698,6.302 5.667,6.875 0.969,0.573 10 false F 5.104,6.302 5.417,6.74 0.313,0.438 10 false I 1.396,6.99 2.385,7.552 0.99,0.563 10 false 60 seconds 1.938,7.365 2.927,7.927 0.99,0.563 10 false 360 seconds 2.615,6.99 4.177,7.448 1.563,0.458 10 false Within 15 minutes 3.458,7.354 4.448,7.917 0.99,0.563 10 false 10 seconds 3.948,6.958 4.938,7.521 0.99,0.563 10 false 60 seconds 4.76,6.969 5.75,7.531 0.99,0.563 10 false 0.1 seconds 5.74,5.188 7.156,5.719 1.417,0.531 10 false Atmospheric Pressure 5.74,4.313 7.156,4.844 1.417,0.531 10 false Atmospheric Pressure 5.885,3.083 7.156,3.615 1.271,0.531 10 false ON: Open 5.021,3.708 6.438,4.24 1.417,0.531 10 false ON 4.219,2.396 4.854,2.74 0.635,0.344 10 true ON: Open 3.688,2.813 5.104,3.344 1.417,0.531 10 false ON 3.292,3.74 4.51,4.031 1.219,0.292 10 true Fuel Tank Pressure 3.302,4.854 4.531,5.188 1.229,0.333 10 true Fuel Tank Pressure 4.688,1.438 5.375,1.771 0.688,0.333 10 true OFF: Vent 3.823,0.594 5.24,1.125 1.417,0.531 10 false ON: Close 2.906,1.135 4.323,1.667 1.417,0.531 10 false ON 2.896,1.865 4.313,2.396 1.417,0.531 10 false ON 4.427,7.365 5.417,7.927 0.99,0.563 10 false 5 seconds 2.063,8.26 3.479,8.792 1.417,0.531 10 false : Malfunction 2.063,7.813 3.479,8.344 1.417,0.531 10 false : OK 4.938,1.125 5.177,1.396 0.24,0.271 10 true ON

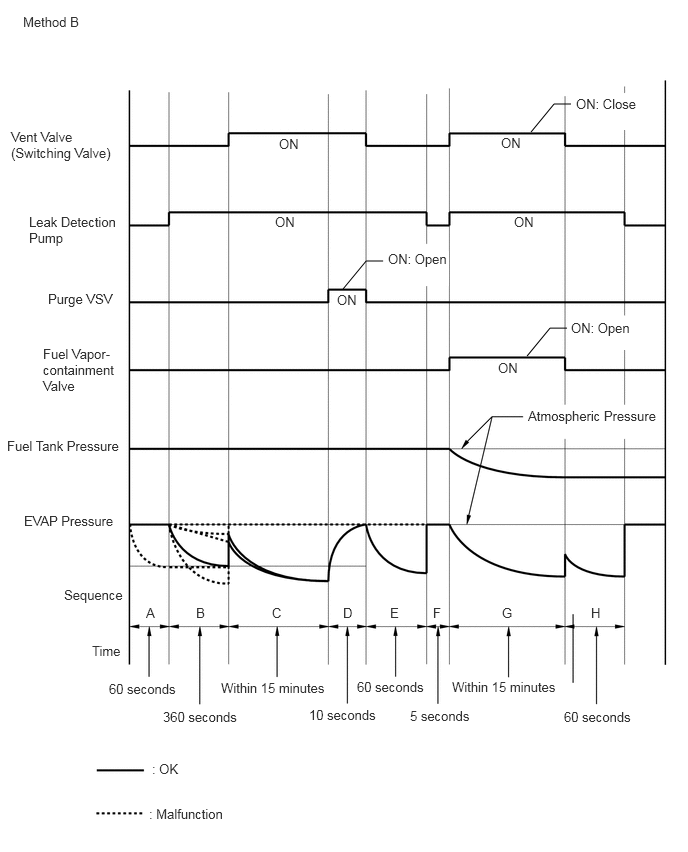

A318771E01
3.573,3.01 3.813,2.719 3.813,2.719 3.99,2.719 false 5.531,1.375 5.771,1.083 5.771,1.083 5.948,1.083 false 5.49,3.708 5.729,3.417 5.729,3.417 5.906,3.417 false 0.24,0.146 1.469,0.344 1.229,0.198 10 false Method B 0.115,1.344 1.26,1.927 1.146,0.583 10 false Vent Valve (Switching Valve) 0.302,2.229 1.229,2.635 0.927,0.406 10 false Leak Detection Pump 0.5,3.031 1.844,3.406 1.344,0.375 10 false Purge VSV 0.448,3.604 1.208,4.125 0.76,0.521 10 false Fuel Vapor-containment Valve 0.25,5.344 1.292,5.677 1.042,0.333 10 false EVAP Pressure 0.073,4.563 1.313,4.833 1.24,0.271 10 false Fuel Tank Pressure 0.667,6.115 2.156,6.698 1.49,0.583 10 false Sequence 0.958,6.698 1.427,7.073 0.469,0.375 10 false Time 1.583,7.927 2.052,8.302 0.469,0.375 10 false : OK 1.552,8.396 3.031,8.625 1.479,0.229 10 false : Malfunction 3.219,7.365 4.26,7.719 1.042,0.354 10 false 10 seconds 1.135,7.094 2.177,7.448 1.042,0.354 10 false 60 seconds 1.698,7.385 2.74,7.74 1.042,0.354 10 false 360 seconds 2.302,7.083 4.385,7.417 2.083,0.333 10 false Within 15 minutes 4.271,7.375 5.26,7.667 0.99,0.292 10 false 5 seconds 3.719,7.073 4.76,7.427 1.042,0.354 10 false 60 seconds 4.708,7.073 6.792,7.406 2.083,0.333 10 false Within 15 minutes 5.875,7.385 6.917,7.74 1.042,0.354 10 false 60 seconds 1.521,6.302 1.99,6.677 0.469,0.375 10 false A 2.042,6.302 2.51,6.677 0.469,0.375 10 false B 2.833,6.302 3.302,6.677 0.469,0.375 10 false C 3.573,6.302 4.042,6.677 0.469,0.375 10 false D 4.063,6.302 4.531,6.677 0.469,0.375 10 false E 4.51,6.302 4.979,6.677 0.469,0.375 10 false F 5.229,6.302 5.698,6.677 0.469,0.375 10 false G 6.156,6.302 6.625,6.677 0.469,0.375 10 false H 5.5,4.25 6.896,4.563 1.396,0.313 10 true Atmospheric Pressure 5.188,3.75 5.656,4.125 0.469,0.375 10 false ON 5.948,3.333 6.615,3.646 0.667,0.313 10 true ON: Open 5.354,2.229 5.823,2.604 0.469,0.375 10 false ON 5.219,1.406 5.688,1.781 0.469,0.375 10 false ON 6,1 6.656,1.354 0.656,0.354 10 true ON: Close 2.906,1.417 3.375,1.792 0.469,0.375 10 false ON 2.865,2.229 3.333,2.604 0.469,0.375 10 false ON 4.042,2.615 4.677,2.979 0.635,0.365 10 true ON: Open 3.51,3.042 3.979,3.417 0.469,0.375 10 false ON

MONITOR STRATEGY

Required Sensors/Components Canister pump module
Frequency of Operation Once per driving cycle

CONFIRMATION DRIVING PATTERN

NOTICE:
·

The Evaporative System Check (Automatic Mode) consists of 9 steps performed automatically by the GTS. It takes a maximum of approximately 40 minutes.

·

Do not perform the Evaporative System Check when the fuel tank is higher than 90% full because the cut-off valve may be closed, making the fuel tank leak check unavailable.

·

Do not start the engine during this operation.

·

When the temperature of the fuel is 35°C (95°F) or higher, a large amount of vapor will from and any check result will be inaccurate. When performing the Evaporative System Check, keep the fuel temperature less than 35°C (95°F).



HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON [A].

7.

Turn the GTS on.

8.

Enter the following menus: Powertrain / Engine / Utility / Evaporative System Check / Automatic Mode [B].

9.

After the "Evaporative System Check" is completed, check for All Readiness by entering the following menus: Powertrain / Engine / Utility / All Readiness.

10.

Input the DTC: P043E00, P043F00, P044672, P24007E or P24007F.

11.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

[A] to [B]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




CAUTION / NOTICE / HINT

NOTICE:
·

Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)

(Select Powertrain in Health Check and then check the time stamp data.)

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)



PROCEDURE

1.GO TO EVAP SYSTEM

NEXT

END
