M20F-FXS, M20G-FXS ENGINE CONTROL  SFI SYSTEM  P032511  Knock Sensor 1 Bank 1 or Single Sensor Circuit Short to Ground


DESCRIPTION

A flat-type knock sensor (non-resonant type) has a structure that can detect vibrations between approximately 5 and 15 kHz.

The knock sensor is fitted onto the engine block to detect engine knocking.

The knock sensor contains a piezoelectric element which generates a voltage when it becomes deformed.

The voltage is generated when the engine block vibrates due to knocking. Any occurrence of engine knocking can be suppressed by delaying the ignition timing.

HINT:

When DTC P032511 is stored, the ECM enters fail-safe mode. During fail-safe mode, the ignition timing is delayed to its maximum retardation. Fail-safe mode continues until the ignition switch is off.


DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note
P032511 Knock Sensor 1 Bank 1 or Single Sensor Circuit Short to Ground The knock sensor output voltage is less than 0.5 V for 1 second or more (1 trip detection logic).
·

Short in knock sensor circuit

·

Knock sensor

·

ECM


Comes on SAE Code: P0327

Reference: Inspection using an oscilloscope

A283572E38
2.615,1 3.115,1.292 0.5,0.292 10 false GND

HINT:

The correct waveform is as shown.


ECM Terminal Name Between KNK1 and EKNK
Tester Range 1 V/DIV., 1 ms./DIV.
Condition Engine speed maintained at 2500 rpm after warming up engine

MONITOR DESCRIPTION

If the output voltage transmitted by the knock sensor remains low for 1 second or more, the ECM interprets this as a malfunction in the sensor circuit, illuminates the MIL and stores this DTC.

MONITOR STRATEGY

Frequency of Operation Continuous

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·


1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON.

7.

Turn the GTS on.

9.

Start the engine and wait 5 minutes [A].

10.

Enter the following menus: Powertrain / Engine / Trouble Codes [B].

11.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



12.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

13.

Input the DTC: P032511.

14.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

If the judgment result is INCOMPLETE, idle the engine for 5 minutes and check the DTC judgment result again.

·

[A] to [B]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.

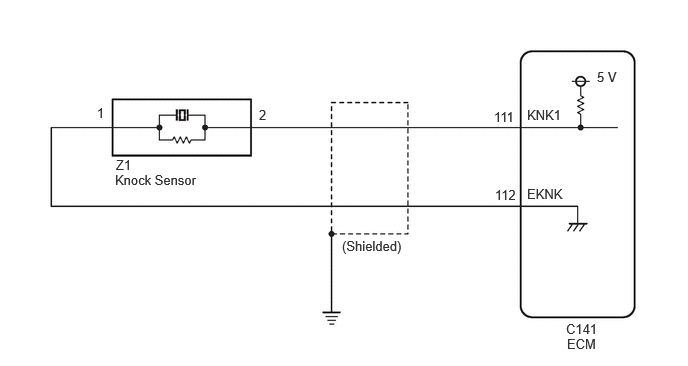

WIRING DIAGRAM

A487326E04
1.198,1.792 2.583,1.969 1.385,0.177 10 false Knock Sensor 3.563,2.479 4.229,2.667 0.667,0.188 10 false (Shielded) 5.906,3.5 6.25,3.667 0.344,0.167 10 false ECM 5.49,1.115 5.885,1.281 0.396,0.167 10 false KNK1 5.49,1.938 5.906,2.104 0.417,0.167 10 false EKNK 5.146,1.135 5.729,1.458 0.583,0.323 10 false 111 5.156,1.948 5.792,2.198 0.635,0.25 10 false 112 1.208,1.635 1.729,1.969 0.521,0.333 10 false Z1 1.01,1.094 1.188,1.281 0.177,0.188 10 false 1 2.698,1.115 2.802,1.281 0.104,0.167 10 false 2 5.896,3.344 6.365,3.531 0.469,0.188 10 false C141 6.219,0.719 6.802,1.042 0.583,0.323 10 false 5 V

CAUTION / NOTICE / HINT

NOTICE:
·

Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)

(Select Powertrain in Health Check and then check the time stamp data.)

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)



HINT:

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.


PROCEDURE

1.CHECK TERMINAL VOLTAGE (POWER SOURCE OF KNOCK SENSOR)
A402438C87

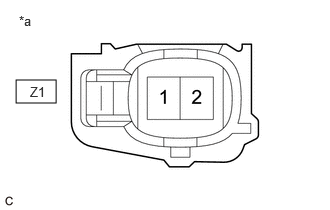

0.167,0.833 0.583,1.073 0.417,0.24 0.313,0.875 0.625,1.073 0.313,0.198 10 false Z1 0.198,0.135 0.51,0.333 0.313,0.198 10 false *a
*a Front view of wire harness connector
(to Knock Sensor)


a.

Disconnect the knock sensor connector.


b.

Turn the ignition switch to ON.


c.

Measure the voltage according to the value(s) in the table below.

Standard Voltage:
Tester Connection Condition Specified Condition
Z1-2 - Z1-1 Ignition switch ON 4.5 to 5.5 V



Result:
Proceed to
OK
NG



OK

2.INSPECT KNOCK SENSOR

NG

3.CHECK HARNESS AND CONNECTOR (KNOCK SENSOR - ECM)
3.CHECK HARNESS AND CONNECTOR (KNOCK SENSOR - ECM)
a.

Disconnect the knock sensor connector.


b.

Disconnect the ECM connector.


c.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Condition Specified Condition
Z1-2 or C141-111 (KNK1) - Body ground Always 10 kΩ or higher



Result:
Proceed to
OK
NG



OK

4.CLEAR DTC

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

4.CLEAR DTC
a.

Clear the DTCs.

Powertrain > Engine > Clear DTCs
50002 372

b.

Turn the ignition switch off and wait for at least 30 seconds.


Result:
Proceed to
NEXT



NEXT

5.CHECK WHETHER DTC OUTPUT RECURS (DTC P032511)
5.CHECK WHETHER DTC OUTPUT RECURS (DTC P032511)
a.

Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.


b.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTCs are not output A
DTC P032511 is output B




A
