M20F-FXS, M20G-FXS ENGINE CONTROL  SFI SYSTEM  P00D562  A/F (O2) Sensor Correlation Bank 1 Sensor 1/Bank 1 Sensor 2 Signal Compare Failure


DESCRIPTION

Refer to DTC P003012.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>P003012

Refer to DTC P003612.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>P003612

HINT:

Although the DTC title say O2 sensor, this DTC relate to the air fuel ratio sensors (sensor 1 and sensor 2).


DTC No. Detection Item DTC Detection Condition Trouble Area MIL Note
P00D562 A/F (O2) Sensor Correlation Bank 1 Sensor 1/Bank 1 Sensor 2 Signal Compare Failure The difference between the averaged output values for air fuel ratio sensor (sensor 1) and air fuel ratio sensor (sensor 2) during fuel cut exceeds the threshold (2 trip detection logic).
·

Air fuel ratio sensor (sensor 1)

·

Air fuel ratio sensor (sensor 2)


Comes on SAE Code: P00D5

MONITOR DESCRIPTION

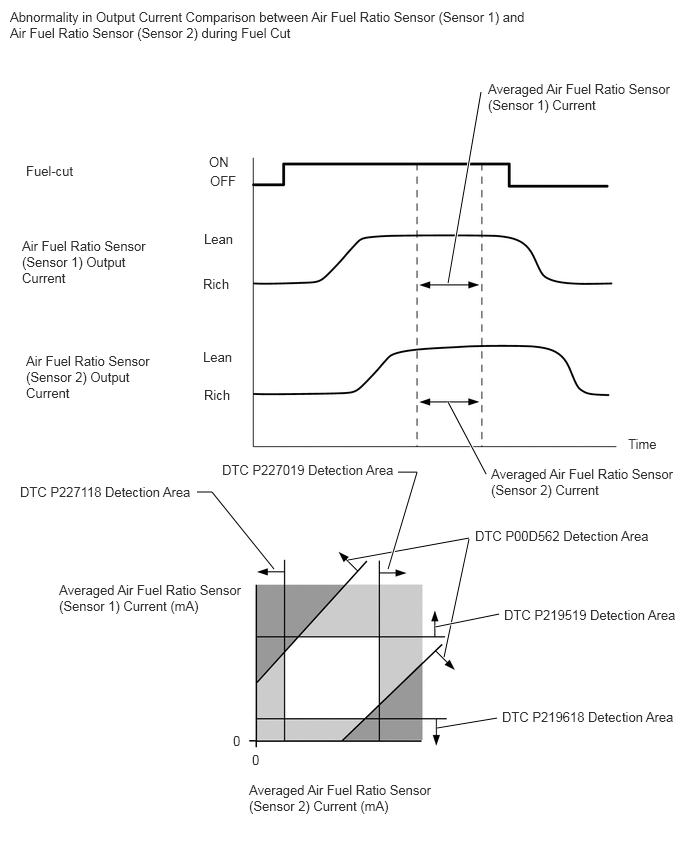

Abnormality in Output Current Comparison between Air Fuel Ratio Sensor (Sensor 1) and Air Fuel Ratio Sensor (Sensor 2) during Fuel Cut


Comparing the averaged output values during fuel cut for air fuel ratio sensor (sensor 1) and air fuel ratio sensor (sensor 2), if the difference between these two is outside the normal range, the ECM illuminates the MIL and stores a DTC.

A392744E08
3.625,5.833 4.885,5.604 true 4.625,6.844 4.885,5.615 true 4.667,2.948 5.01,0.958 true 5.063,4.938 4.667,4.188 true 5.198,6.396 4.531,6.531 true 5.177,7.479 4.552,7.583 true 2.052,5.125 2.208,5.125 2.208,5.125 2.854,5.927 true 4.146,4.917 4.344,4.917 4.344,4.917 4.042,5.927 true 0.104,0.094 5.51,0.563 5.406,0.469 10 false Abnormality in Output Current Comparison between Air Fuel Ratio Sensor (Sensor 1) and Air Fuel Ratio Sensor (Sensor 2) during Fuel Cut 2.594,8.146 4.531,8.552 1.938,0.406 10 false Averaged Air Fuel Ratio Sensor (Sensor 2) Current (mA) 0.615,6.063 2.563,6.479 1.948,0.417 10 false Averaged Air Fuel Ratio Sensor (Sensor 1) Current (mA) 2.427,7.635 2.802,7.865 0.375,0.229 10 false 0 2.625,7.833 3,8.063 0.375,0.229 10 false 0 0.229,2.479 1.563,2.99 1.333,0.51 10 false Air Fuel Ratio Sensor (Sensor 1) Output Current 0.271,3.677 1.656,4.198 1.385,0.521 10 false Air Fuel Ratio Sensor (Sensor 2) Output Current 2.125,2.406 2.542,2.646 0.417,0.24 10 false Lean 2.115,2.875 2.531,3.115 0.417,0.24 10 false Rich 2.125,4.031 2.542,4.271 0.417,0.24 10 false Rich 2.115,3.635 2.531,3.875 0.417,0.24 10 false Lean 2.177,1.604 2.594,1.844 0.417,0.24 10 false ON 2.188,1.802 2.604,2.042 0.417,0.24 10 false OFF 0.271,1.698 1.021,1.917 0.75,0.219 10 false Fuel-cut 6.542,4.542 6.958,4.781 0.417,0.24 10 false Time 5.083,0.844 7.052,1.24 1.969,0.396 10 false Averaged Air Fuel Ratio Sensor (Sensor 1) Current 5.115,4.854 7.094,5.25 1.979,0.396 10 false Averaged Air Fuel Ratio Sensor (Sensor 2) Current 5.25,6.323 7.146,6.708 1.896,0.385 10 false DTC P219519 Detection Area 5.229,7.385 7.094,7.792 1.865,0.406 10 false DTC P219618 Detection Area 2.313,4.813 4.125,5.177 1.813,0.365 10 false DTC P227019 Detection Area 0.208,5.042 2.052,5.406 1.844,0.365 10 false DTC P227118 Detection Area 4.948,5.5 6.813,5.865 1.865,0.365 10 false DTC P00D562 Detection Area


MONITOR STRATEGY

Required Sensors/Components (Main) Air fuel ratio sensor (sensor 1)
Air fuel ratio sensor (sensor 2)
Required Sensors/Components (Related) Crankshaft position sensor
Engine coolant temperature sensor
Throttle position sensor
Frequency of Operation Once per driving cycle

CONFIRMATION DRIVING PATTERN

HINT:
·

After repair has been completed, clear the DTC and then check that the vehicle has returned to normal by performing the following All Readiness check procedure.

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

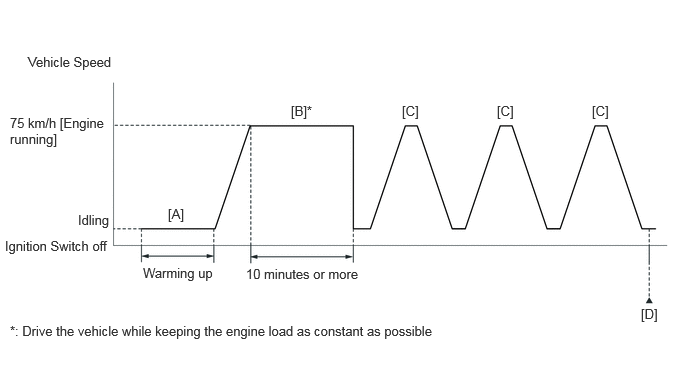

A403645E48
0.292,0.563 2.281,0.76 1.99,0.198 10 false Vehicle Speed 0.104,1.198 1.115,1.594 1.01,0.396 10 false 75 km/h [Engine running] 0.813,2.208 2.802,2.406 1.99,0.198 10 false Idling 0.052,2.479 2.042,2.677 1.99,0.198 10 false Ignition Switch off 1.75,2.146 2.052,2.375 0.302,0.229 10 false [A] 3.031,1.073 3.333,1.302 0.302,0.229 10 false [B]* 4.188,1.073 4.49,1.302 0.302,0.229 10 false [C] 5.177,1.073 5.479,1.302 0.302,0.229 10 false [C] 6.167,1.073 6.469,1.302 0.302,0.229 10 false [C] 6.677,3.188 6.979,3.417 0.302,0.229 10 false [D] 1.49,2.76 3.479,2.958 1.99,0.198 10 false Warming up 2.563,2.771 4.552,2.969 1.99,0.198 10 false 10 minutes or more 0.104,3.365 4.75,3.646 4.646,0.281 10 false *: Drive the vehicle while keeping the engine load as constant as possible

1.

Connect the GTS to the DLC3.

2.

Turn the ignition switch to ON.

3.

Turn the GTS on.

4.

Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).

5.

Turn the ignition switch off and wait for at least 30 seconds.

6.

Turn the ignition switch to ON.

7.

Turn the GTS on.

9.

Start the engine and warm it up until the engine coolant temperature is 75°C (167°F) or higher with the shift lever in P [A].

HINT:

In order to keep the idle stable, turn off the A/C and all other electric loads and do not perform any shift operations.


10.

Drive the vehicle at approximately 75 km/h (46 mph) for 10 minutes or more [B].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:
·

Drive the vehicle while keeping the engine load as constant as possible.

·

If the engine stops, further depress the accelerator pedal to restart the engine.



11.

With the shift lever in S, drive the vehicle at 75 km/h (46 mph), and then decelerate the vehicle by releasing the accelerator pedal for 10 seconds or more to perform the fuel-cut [C].

CAUTION:

When performing the confirmation driving pattern, obey all speed limits and traffic laws.


HINT:

If the engine stops, further depress the accelerator pedal to restart the engine.


12.

Repeat step [C] 2 times or more in one driving cycle.

13.

Enter the following menus: Powertrain / Engine / Trouble Codes / Pending [D].

14.

Read the pending DTCs.

HINT:
·

If a pending DTC is output, the system is malfunctioning.

·

If a pending DTC is not output, perform the following procedure.



15.

Enter the following menus: Powertrain / Engine / Utility / All Readiness.

16.

Input the DTC: P00D562.

17.

Check the DTC judgment result.

GTS Display Description
NORMAL
·

DTC judgment completed

·

System normal


ABNORMAL
·

DTC judgment completed

·

System abnormal


INCOMPLETE
·

DTC judgment not completed

·

Perform driving pattern after confirming DTC enabling conditions



HINT:
·

If the judgment result is NORMAL, the system is normal.

·

If the judgment result is ABNORMAL, the system is malfunctioning.

·

If the judgment result is INCOMPLETE, drive the vehicle with the shift lever in S, and then perform step [C] again.

·

[A] to [D]: Normal judgment procedure.

The normal judgment procedure is used to complete DTC judgment and also used when clearing permanent DTCs.

·

When clearing the permanent DTCs, do not disconnect the cable from the auxiliary battery terminal or attempt to clear the DTCs during this procedure, as doing so will clear the universal trip and normal judgment histories.




CAUTION / NOTICE / HINT

NOTICE:
·

Vehicle Control History may be stored in the hybrid vehicle control ECU assembly if the engine is malfunctioning. Certain vehicle condition information is recorded when Vehicle Control History is stored. Reading the vehicle conditions recorded in both the Freeze Frame Data and Vehicle Control History can be useful for troubleshooting.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)

(Select Powertrain in Health Check and then check the time stamp data.)

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>DTC CHECK / CLEAR

·

If any "Engine Malfunction" Vehicle Control History item has been stored in the hybrid vehicle control ECU assembly, make sure to clear it. However, as all Vehicle Control History items are cleared simultaneously, if any Vehicle Control History items other than "Engine Malfunction" are stored, make sure to perform any troubleshooting for them before clearing Vehicle Control History.

Click hereEngine / Hybrid System>HYBRID / BATTERY CONTROL>HYBRID CONTROL SYSTEM>VEHICLE CONTROL HISTORY (RoB)



HINT:
·

Sensor 1 refers to the sensor closest to the engine assembly.

·

Sensor 2 refers to the sensor farthest away from the engine assembly.

·

Read Freeze Frame Data using the GTS. The ECM records vehicle and driving condition information as Freeze Frame Data the moment a DTC is stored. When troubleshooting, Freeze Frame Data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air fuel ratio was lean or rich, and other data from the time the malfunction occurred.



PROCEDURE

1.CHECK ANY OTHER DTCS OUTPUT (IN ADDITION TO DTC P00D562)
a.

Read the DTCs.

Powertrain > Engine > Trouble Codes
50001 372
Result:
Result Proceed to
DTC P00D562 is output A
DTC P00D562 and P219519 or P219618 are output B
DTC P00D562 and P227019 or P227118 are output C
DTC P00D562 and other DTCs are output D


HINT:
·

If any DTCs other than P00D562 are output, troubleshoot those DTCs first.

·

Perform "Inspection After Repair" after replacing the air fuel ratio sensor (sensor 1) and air fuel ratio sensor (sensor 2).

Click hereEngine / Hybrid System>M20F-FXS, M20G-FXS (ENGINE CONTROL)>SFI SYSTEM>INITIALIZATION





A

B

C

D

GO TO DTC CHART
